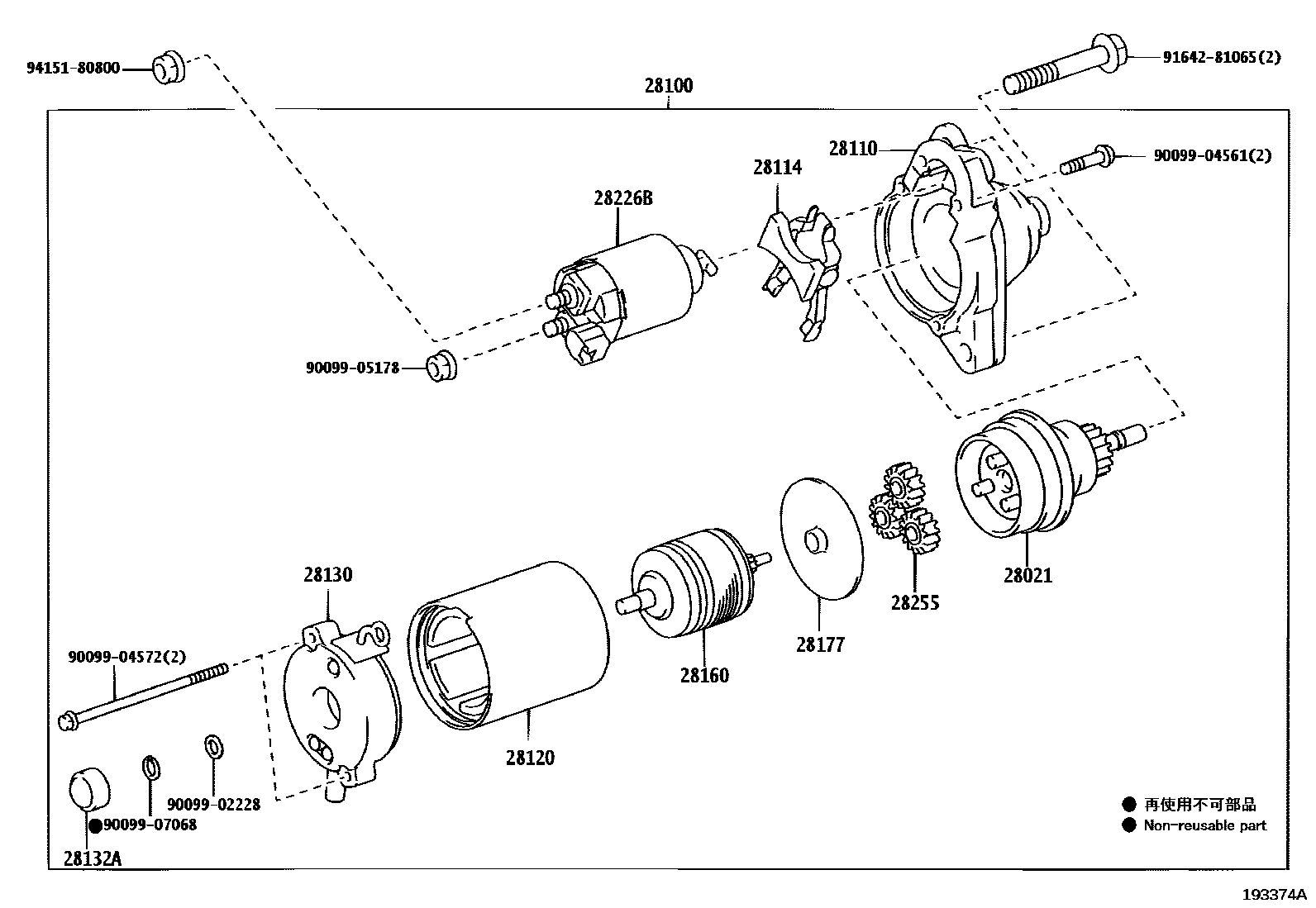

STARTER
28021CLUTCH SUB-ASSY, STARTER CENTER BEARING
28100STARTER ASSY
12V 1.3KW; 12V 1.3KW,AUSTRALIA SPEC; 12V 1.3KW,NEW ZEALAND SPEC
12V 1.3KW
12V 1.7KW; 12V 1.7KW,CHINA SPEC
12V 1.7KW; 12V 1.7KW,CHINA SPEC
12V 2.0KW
12V 1.4KW
12V 2.0KW
28110HOUSING ASSY, STARTER DRIVE
28114PIN, STARTER DRIVE LEVER SET
28120YOKE ASSY, STARTER
CHINA SPEC
AUSTRALIA SPEC; NEW ZEALAND SPEC
CHINA SPEC
28130FRAME ASSY, STARTER COMMUTATOR END
AUSTRALIA SPEC; NEW ZEALAND SPEC
CHINA SPEC
28132ACOVER, STARTER COMMUTATOR END FRAME
28160ARMATURE ASSY, STARTER
28177PLATE(FOR STARTER ARMATURE)
28226STARTER KIT, BATTERY TERMINAL
28226BSTARTER KIT, REPAIR SERVICE
28255GEAR, PLANET
CHINA SPEC
9009902228
main90099-02228
9009904561
main90099-04561
9009904572
main90099-04572
9009905178
main90099-05178
9009907068
main90099-07068
9164281065
main91642-81065
9415180800
main94151-80800
19 parts on this diagram · 4 diagrams in section
