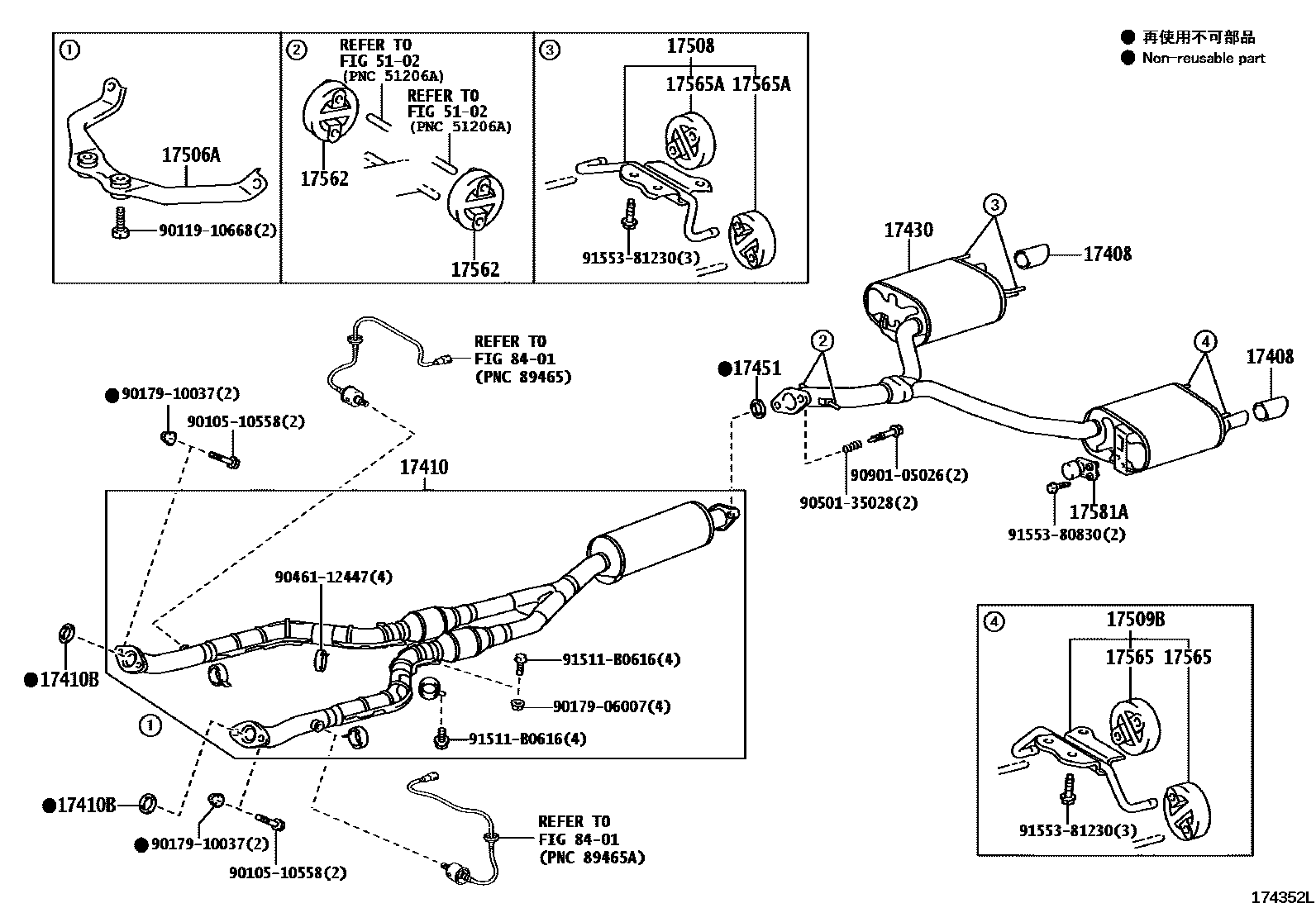

EXHAUST PIPE
17408BAFFLE SUB ASSY, EXHAUST TAILPIPE
17410PIPE ASSY, EXHAUST, FRONT
*114=TOYOTA/GE5/Y
*114=TOYOTA/GE5/Y
*114=TOYOTA/GE5/Y
*114=TOYOTA/GE5/Y
*114=TOYOTA/PA1/Y
*114=TOYOTA/PA1/Y
*114=TOYOTA/PA1/Y
*114=TOYOTA/DA2/Y
*114=TOYOTA/DA2/Y
*114=TOYOTA/GE5/Y,KAZAKHSTAN SPEC; *114=TOYOTA/GE5/Y,SERBIA,BOSNIA & HERZEGOVINA,BELARUS SPEC
*114=TOYOTA/GE5/Y,CHINA SPEC; *114=TOYOTA/GE5/Y,KAZAKHSTAN SPEC; *114=TOYOTA/GE5/Y,SERBIA,BOSNIA & HERZEGOVINA,BELARUS SPEC; *114=TOYOTA/GE5/Y,UKRAINE SPEC
*114=TOYOTA/GR1/Y,RUSSIA SPEC; *114=TOYOTA/GR1/Y,UKRAINE SPEC
*114=TOYOTA/GR1/Y,KAZAKHSTAN SPEC; *114=TOYOTA/GR1/Y,RUSSIA SPEC; *114=TOYOTA/GR1/Y,UKRAINE SPEC
HONG KONG SPEC
HONG KONG SPEC
CHINA SPEC
17410BGASKET, EXHAUST PIPE
17430PIPE ASSY, EXHAUST, TAIL
RUSSIA SPEC; UKRAINE SPEC
CHINA SPEC
17451GASKET, EXHAUST PIPE
17506ABRACKET SUB-ASSY, EXHAUST PIPE NO.1 SUPPORT
17508SUPPORT SUB-ASSY, EXHAUST PIPE, NO.3
17509BSUPPORT, EXHAUST PIPE NO.4
17562SUPPORT, EXHAUST PIPE, NO.2
17565SUPPORT, EXHAUST PIPE, NO.5
17565ASUPPORT, EXHAUST PIPE, NO.4
17581ADAMPER, EXHAUST PIPE
5102SUSPENSION CROSSMEMBER & UNDER COVER
8401SWITCH & RELAY & COMPUTER
9010510558
main90105-10558
9011910668
main90119-10668
9017906007
main90179-06007
9017910037
main90179-10037
9046112447
main90461-12447
9050135028
main90501-35028
9090105026
main90901-05026
91511B0616
main91511-B0616
9155380830
main91553-80830
9155381230
main91553-81230
24 parts on this diagram · 4 diagrams in section
