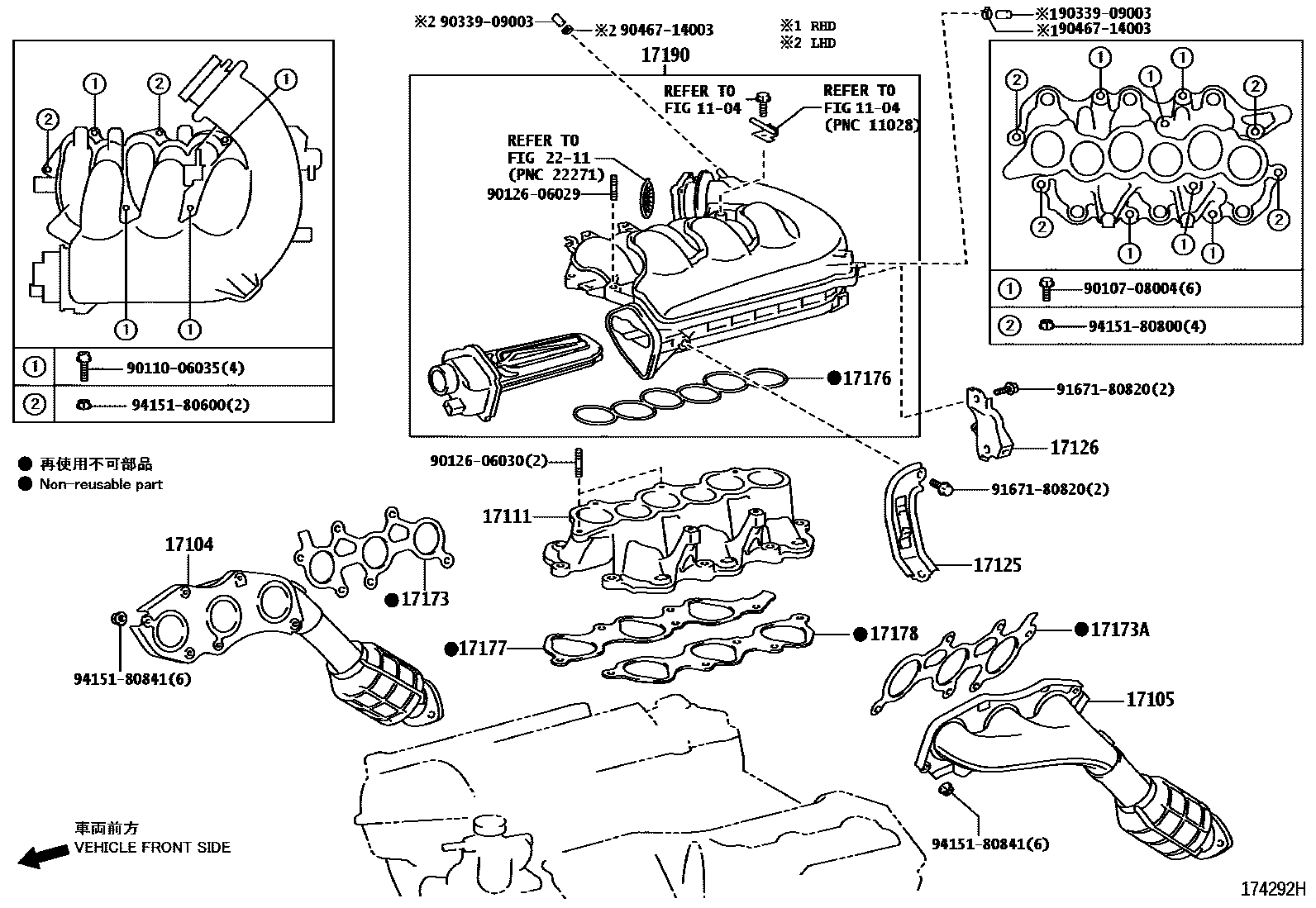

1104CYLINDER HEAD

→ Go to FIG 11-04

17104MANIFOLD SUB-ASSY, EXHAUST, RH

main17104-50160i3UZFE..UZS190200501-200709

main17140-31030i3GRFSE..GRS190200501-200608

*114=TOYOTA/R31030/Y

main17140-31080i3GRFE..GRS190200501-200509

main17140-31120i3GRFE..GRS190200509-200709

*114=TOYOTA/R31120/Y

main17140-31131i3GRFE..GRS190200709

main17140-31280i3GRFSE..GRS190200609-200709

*114=TOYOTA/R31280/Y

main17140-31460i3GRFSE..GRS190200802

*114=TOYOTA/R31460/Y

main17140-31680i2GRFSE..GRS196200907

*114=TOYOTA/R31680/Y

main17140-38030i1URFSE..URS190200709

*114=TOYOTA/R38030/Y

main17140-38050i1URFE..URS190200809

main17140-31740i3GRFE..GRS190..GEN201007

HONG KONG SPEC

17105MANIFOLD SUB-ASSY, EXHAUST, LH

main17105-50160i3UZFE..UZS190200501-200709

main17150-31030i3GRFSE..GRS190200501-200608

*114=TOYOTA/L31030/Y

main17150-31080i3GRFE..GRS190200501-200509

main17150-31120i3GRFE..GRS190200509-200709

*114=TOYOTA/L31120/Y

main17150-31280i3GRFSE..GRS190200609-200709

*114=TOYOTA/L31280/Y

main17150-31680i2GRFSE..GRS196200907

*114=TOYOTA/L31680/Y

main17150-38030i1URFSE..URS190200709

*114=TOYOTA/L38030/Y

main17150-38050i1URFE..URS190200809

main17150-31710i3GRFE..GRS190..GEN201007

HONG KONG SPEC

17111MANIFOLD, INTAKE

main17101-50010i3UZFE..UZS190200501-200709

main17111-31120i3GRFE..GRS190200709

main17111-31170i2GRFSE..GRS196200907-201107

main17111-31171i2GRFSE..GRS196201107

main17120-31030i3GRFSE..GRS190200501-200601

main17120-31031i3GRFSE..GRS190200709

main17120-38021i1UR#..URS190200709

17125STAY, SURGE TANK, NO.1

main17125-31020i3GRFSE..GRS190200501-200709

main17125-31030i3GRFE..GRS190200501-200709

17126STAY, SURGE TANK, NO.2

main17126-31020i3GR#..GRS190200501-200709

main17126-31050i2GRFSE..GRS196200907

17173GASKET, EXHAUST MANIFOLD TO HEAD

main17173-31020i3GR#..GRS190200501-200709

main17173-38040i1UR#..URS190200709

main17173-50021i3UZFE..UZS190200709-200809

17173AGASKET, EXHAUST MANIFOLD TO HEAD, LH

main17173-31020i2GRFSE,3GR#..GRS19#200709

main17173-38040i1UR#..URS190200709

main17173-50021i3UZFE..UZS190200709-200809

17176GASKET, AIR SURGE TANK TO INTAKE MANIFOLD

main17176-31020i3GRFSE..GRS190200709-201112

main17176-31030i3GRFE..GRS190200709-201112

main17176-31060i2GRFSE..GRS196200907-201112

17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1

main17171-38020×2i1UR#..URS190200709

main17171-50020×2i3UZFE..UZS190200501-200709

main17177-31020×2i3GRFSE..GRS190200501-200709

main17177-31021×2i3GRFSE..GRS190201110-201112

main17177-31030i3GRFE..GRS190200709-201112

main17177-31060×2i2GRFSE..GRS196200907-201107

main17177-31061×2i2GRFSE..GRS196201107-201112

17178GASKET, INTAKE MANIFOLD TO HEAD, NO.2

main17178-31020i3GRFE..GRS190200709

17190TANK ASSY, INTAKE AIR SURGE

main17190-31020i3GRFSE..GRS190200501-200709

main17190-31030i3GRFE..GRS190200501-200709

main17190-31100i2GRFSE..GRS196200907-201112

2211FUEL INJECTION SYSTEM

→ Go to FIG 22-11

9010708004

main90107-08004

9011006035

main90110-06035

9012606029

main90126-06029

9012606030

main90126-06030

9033909003

main90339-09003

9046714003

main90467-14003

9167180820

main91671-80820

9415180600

main94151-80600

9415180800

main94151-80800

9415180841

main94151-80841

23 parts on this diagram · 5 diagrams in section
