V-BELT

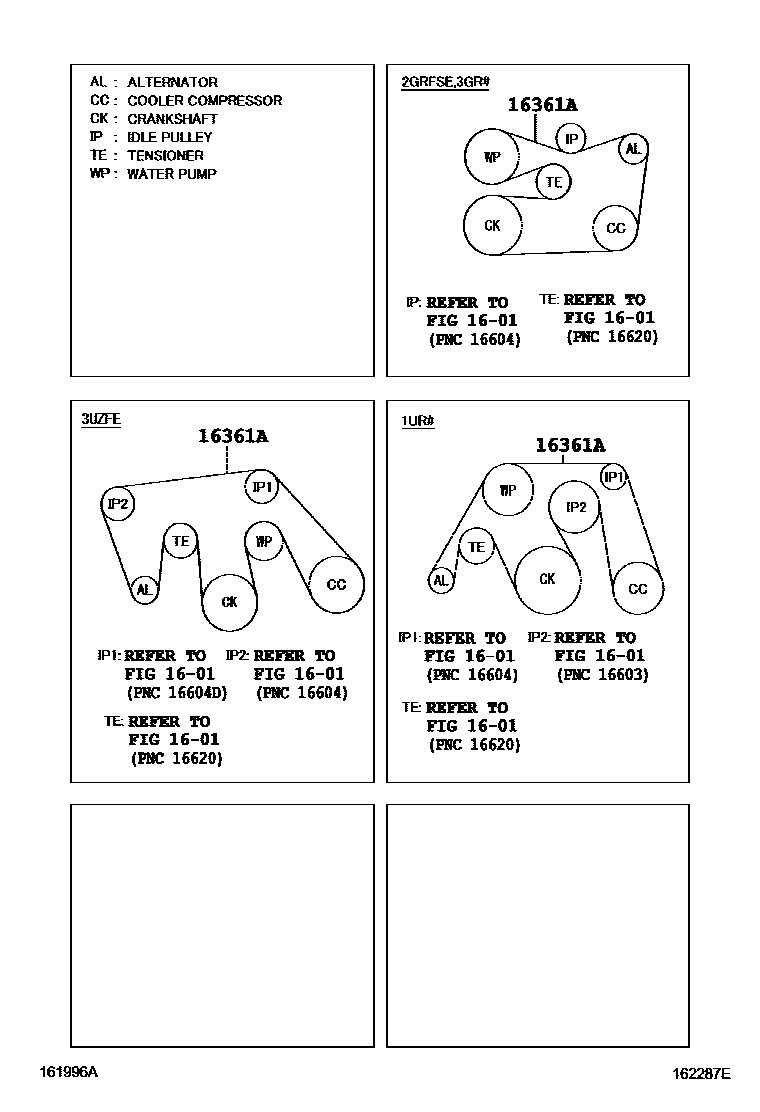

Parts diagram

1601WATER PUMP

→ Go to FIG 16-01

16361ABELT, V(FOR FAN & ALTERNATOR)

main90916-02592i200501-200709

main90916-02637i200709

main99367-C1550i200501-200709

2 parts on this diagram · 1 diagram in section
