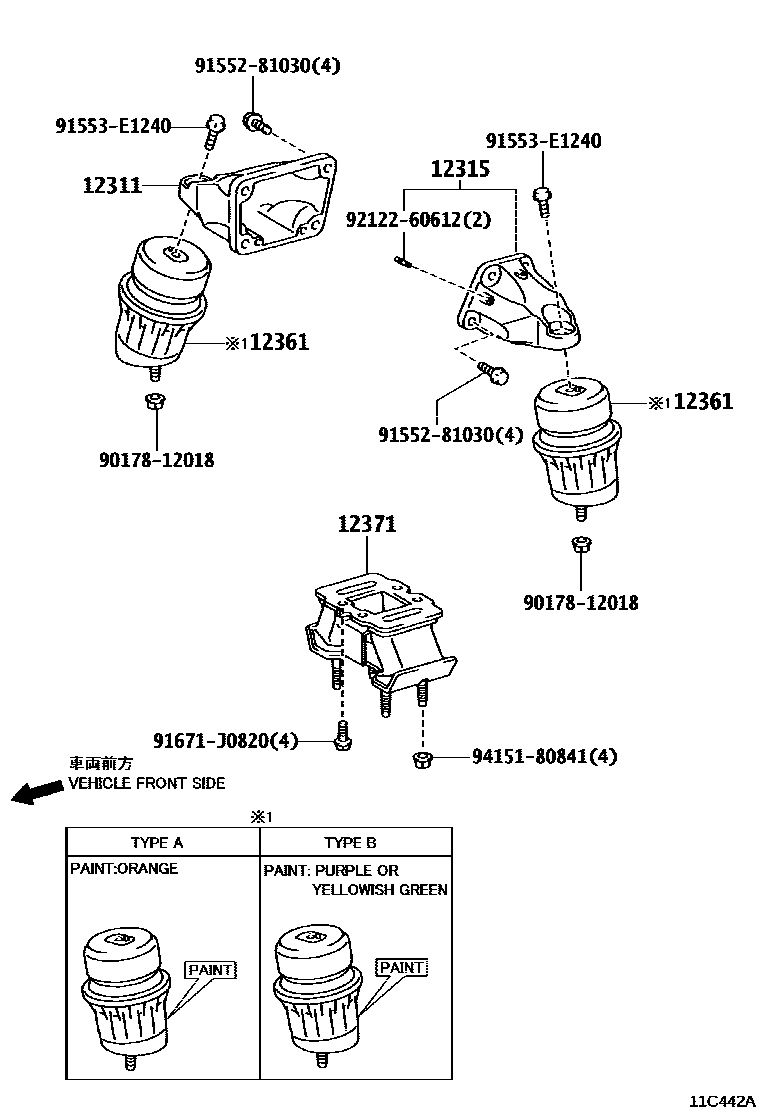

MOUNTING

0001 1 0002 1 0003 1 0004 1

12311BRACKET, ENGINE MOUNTING, FRONT NO.1 RH

main12311-31040i3GR#..GRS190200709

main12311-31050i2GRFSE..GRS196200907

main12311-38090i1UR#..URS190200709

main12311-50150×2i3UZFE..UZS190200709-200809

12315BRACKET, ENGINE MOUNTING, FRONT NO.1 LH

main12302-31010i3GR#..GRS190200501-200709

main12302-31020i2GRFSE..GRS196200907

main12315-38070i1UR#..URS190200709

12361INSULATOR, ENGINE MOUNTING, FRONT

main12361-31100×2i3GRFE..GRS190200501-200604

TYPE A:REFER ILLUST.

main12361-31111×2i2GRFSE..GRS196200907-201112

main12361-31200×2i3GRFE..GRS190200604-200709

TYPE B:REFER ILLUST.

main12361-38200×2i1UR#..URS190200709

main12361-50220×2i3UZFE..UZS190200501-200709

12371INSULATOR, ENGINE MOUNTING, REAR NO.1

main12371-31070i3GR#..GRS190; 3UZFE..UZS190200501-200709

main12371-31081i2GRFSE..GRS196200907

main12371-31210i3UZFE..UZS190200711-200809

9017812018

main90178-12018

9155281030

main91552-81030

91553E1240

main91553-E1240

91671J0820

main91671-J0820

9212260612

main92122-60612

9415180841

main94151-80841

10 parts on this diagram · 4 diagrams in section
