SHORT BLOCK ASSEMBLY

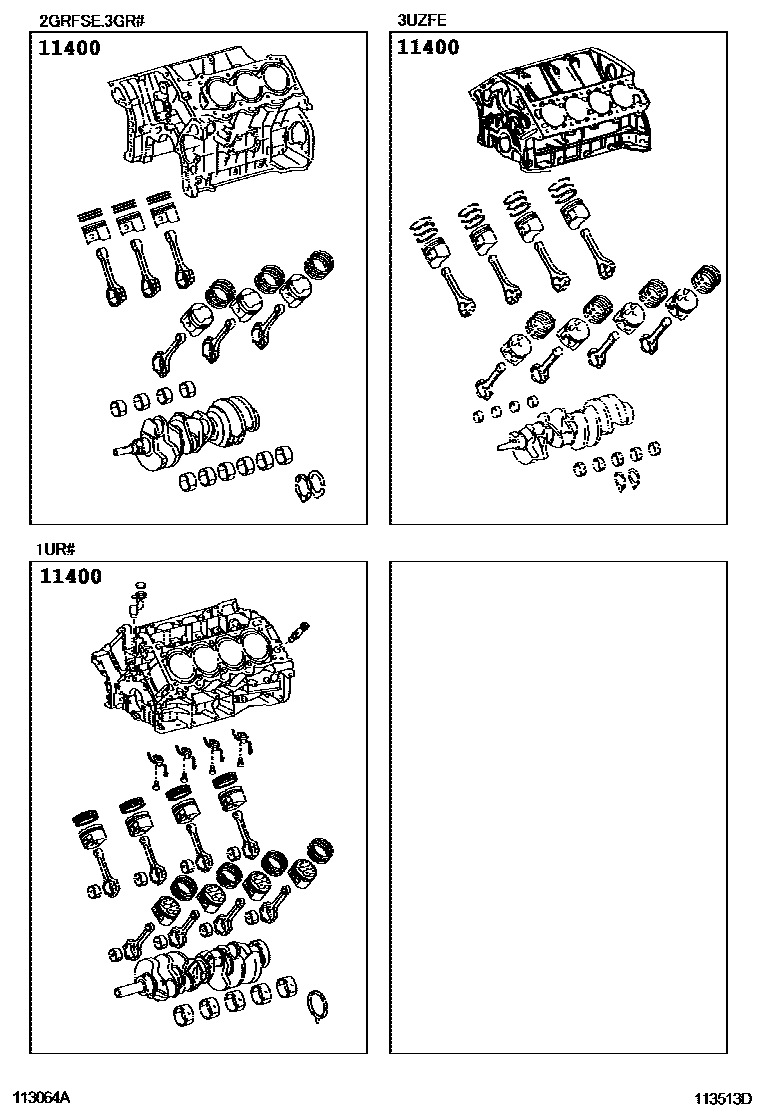

Parts diagram

11400BLOCK ASSY, SHORT

main11400-31060i200501-200709

main11400-31150i200501-200709

main11400-31170i200907-201110

main11400-31171i201110-201112

main11400-38050i200809-201003

main11400-38051i201003-201112

main11400-38060i200709-201003

main11400-38061i201003-201112

main11400-50140i200501-200709

1 parts on this diagram · 1 diagram in section
