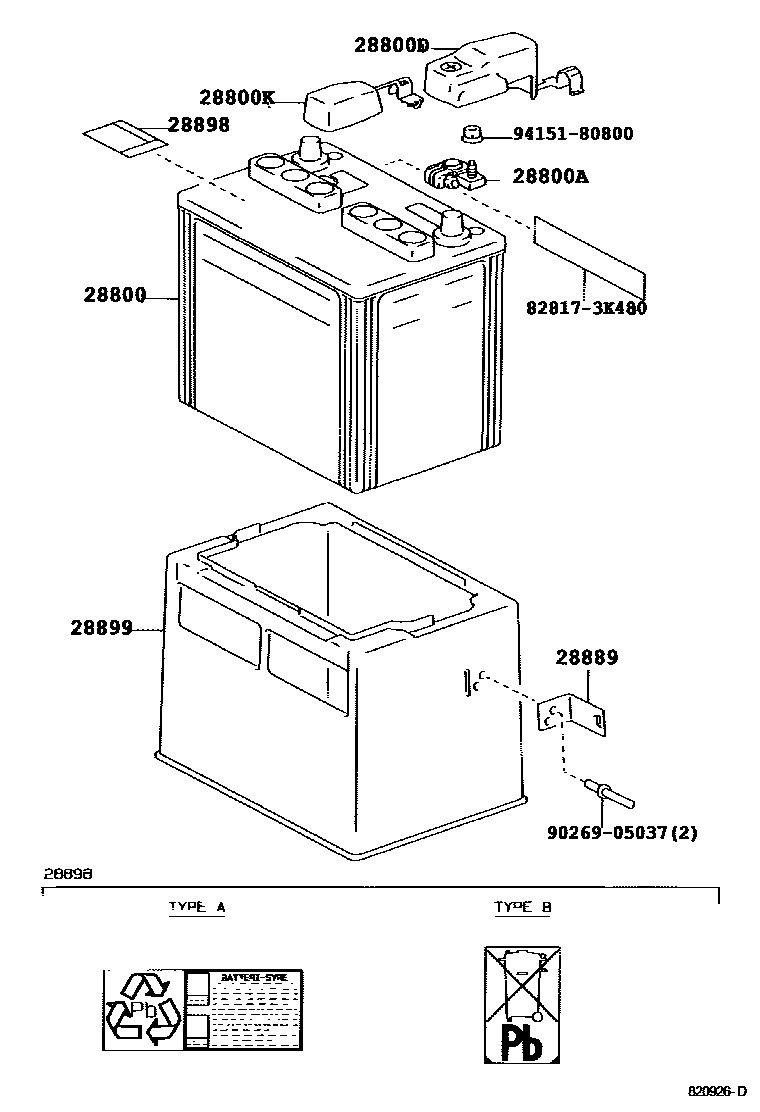

BATTERY & BATTERY CABLE

28800BATTERY

main28800-17111i2JZGE..JZS160..LHD199907-200007

80D26R

main28800-17121i2JZGE,3UZFE..JZS160,UZS161..RHD200007-200501

80D26L,FURUKAWA

main28800-50070i2JZGE,3UZFE..JZS160,UZS161..LHD200007-200501

80D26R

main28800-54020i2JZGE,3UZFE..JZS160,UZS161..RHD200007-200501

80D26L,MATSUSHITA

main28800-54232i2JZGE..JZS160..LHD199708-199907

80D26R

main28800-54472i2JZGE..JZS160..LHD199907-200007

80D26R

main28800-64132i2JZGE..JZS160..RHD199708-200007

80D26L

28800ATERMINAL, BATTERY POSITIVE

main90982-05040i2JZGE,3UZFE..JZS160,UZS161199708

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-30410i2JZGE,3UZFE..JZS160,UZS161199708

28800KCOVER, CONNECTOR(FOR BATTERY TERMINAL NEGATIVE)

main82821-50060i2JZGE..JZS160199808-200007

main82821-50450i2JZGE,3UZFE..JZS160,UZS161200007

28889BRACKET, BATTERY WIRE CLAMP

main28889-46020i3UZFE..UZS161;2JZGE..JZS160..RHD199708

28898PLATE, BATTERY

main28898-46010i2JZGE,3UZFE..JZS160,UZS161..LHD..EUR199708

TYPE A:REFER TO ILLUSTRATION

main28898-46020i3UZFE..UZS161200007

TYPE B:REFER TO ILLUSTRATION

28899INSULATOR, BATTERY

main28870-46100i2JZGE,3UZFE..JZS160,UZS161199708

828173K480PROTECTOR, WIRING HARNESS, NO.1

main82817-3K480

9026905037

main90269-05037

9415180800

main94151-80800

10 parts on this diagram · 1 diagram in section
