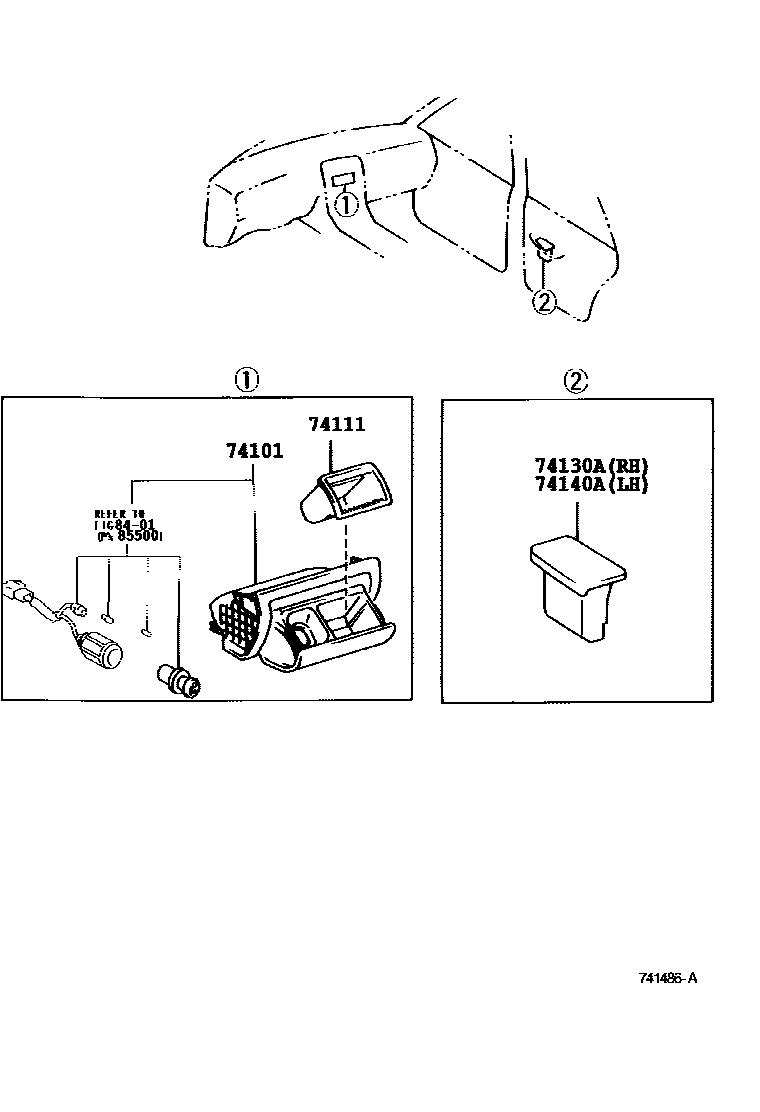

ASH RECEPTACLE

74101RECEPTACLE SUB-ASSY, FRONT ASH

main74101-30090iJZS160..LHD199708-200007

main74101-30100iJZS160..RHD199708-200007

main74101-30130iJZS160..LHD..EUR200011

KOREA SPEC

main74101-30130iJZS160..GCC;UZS161..LHD200007

main74101-30140iJZS160..RHD..EUR200007

SOUTH AFRICA SPEC

main74101-30150iUZS161..RHD200007

ENGLAND SPEC

74111BOX, FRONT ASH RECEPTACLE

main74111-30160iJZS160,UZS161199708

74130ARECEPTACLE ASSY, REAR ASH, RH

main74130-30280-B0iJZS160,UZS161199708-200501

DK.CHARCOAL,TRIM1#

main74130-30280-C0iUZS161;JZS160..ARL,GCC199708-200501

BLACK,TRIM2#

main74130-30280-C0iJZS160..EUR199708-200007

BLACK,TRIM22,23,24,25,26

main74130-30280-E0iJZS160,UZS161199708-200501

SANDAL WOOD,TRIM0#

74140ARECEPTACLE ASSY, REAR ASH, LH

main74140-30140-B0iJZS160,UZS161199708-200501

DK.CHARCOAL,TRIM1#

main74140-30140-C0iJZS160..EUR199708-200501

BLACK,TRIM2#

main74140-30140-C0iJZS160..EUR199708-200007

BLACK,TRIM22,23,24,25,26

main74140-30140-E0iJZS160,UZS161199708-200501

SANDAL WOOD,TRIM0#

4 parts on this diagram · 1 diagram in section
