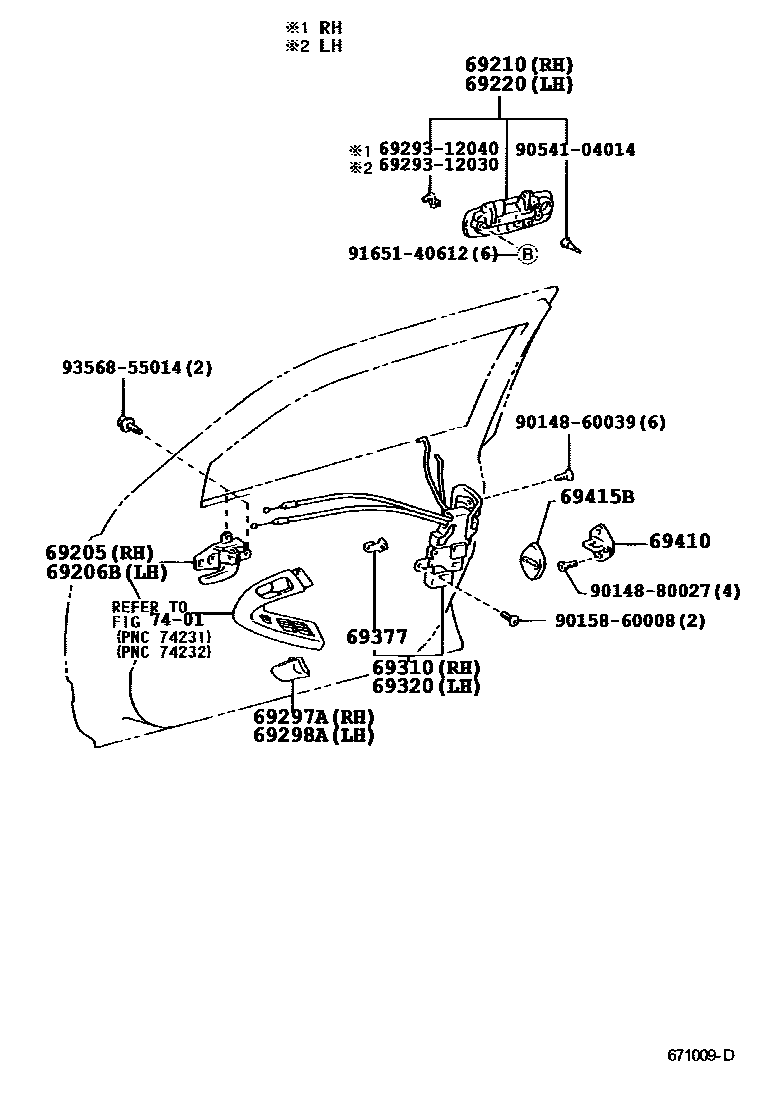

FRONT DOOR LOCK & HANDLE
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
DK.CHARCOAL,TRIM1#
BLACK,TRIM2#
SANDAL WOOD,TRIM0#
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
DK.CHARCOAL,TRIM1#
BLACK,TRIM22,23,24,25,26
SANDAL WOOD,TRIM0#
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
SU.WHITE PM,051
WHITE PEARL CS.,062
IVORY PEARL CS.,066
SILVER ME,199
SILVER ME.,1C0
BLACK,202
RED MC.,3N1
BORDEAUX MC.,3P2
BEIGE SF.,4P2
BEIGE ME.,4P7
DK. GREEN MC.,6Q7
GREEN M.M.,6S5
DARK GREEN MC.,6S6
DK.BLUE MC.,8L4
BLUE MC.,8M6
DARK BLUE MC.,8P8
BLUE M.M.,8P9
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
SU.WHITE PM,051
WHITE PEARL CS.,062
IVORY PEARL CS.,066
SILVER ME,199
SILVER ME.,1C0
BLACK,202
RED MC.,3N1
BORDEAUX MC.,3P2
BEIGE SF.,4P2
BEIGE ME.,4P7
DK. GREEN MC.,6Q7
GREEN M.M.,6S5
DARK GREEN MC.,6S6
DK.BLUE MC.,8L4
BLUE MC.,8M6
DARK BLUE MC.,8P8
BLUE M.M.,8P9
69297ABEZEL, DOOR INSIDE HANDLE, NO.2 RH
DK.CHARCOAL,TRIM1#
BLACK,TRIM2#
SANDAL WOOD,TRIM0#
69298ABEZEL, DOOR INSIDE HANDLE, NO.2 LH
DK.CHARCOAL,TRIM1#
BLACK,TRIM2#
SANDAL WOOD,TRIM0#
69310LOCK ASSY, FRONT DOOR, RH
W(DOUBLE-LOCK)
69320LOCK ASSY, FRONT DOOR, LH
W(DOUBLE-LOCK)
69377SNAP, FRONT DOOR LOCK CONTROL ROD
LH
RH
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69415BCOVER, DOOR LOCK STRIKER, FRONT
7401ARMREST & VISOR
6929312030HANDLE, BACK DOOR
main69293-12030
6929312040HANDLE, BACK DOOR
main69293-12040
9014860039
main90148-60039
9014880027
main90148-80027
9015860008
main90158-60008
9054104014
main90541-04014
9165140612
main91651-40612
9356855014
main93568-55014
20 parts on this diagram · 1 diagram in section
