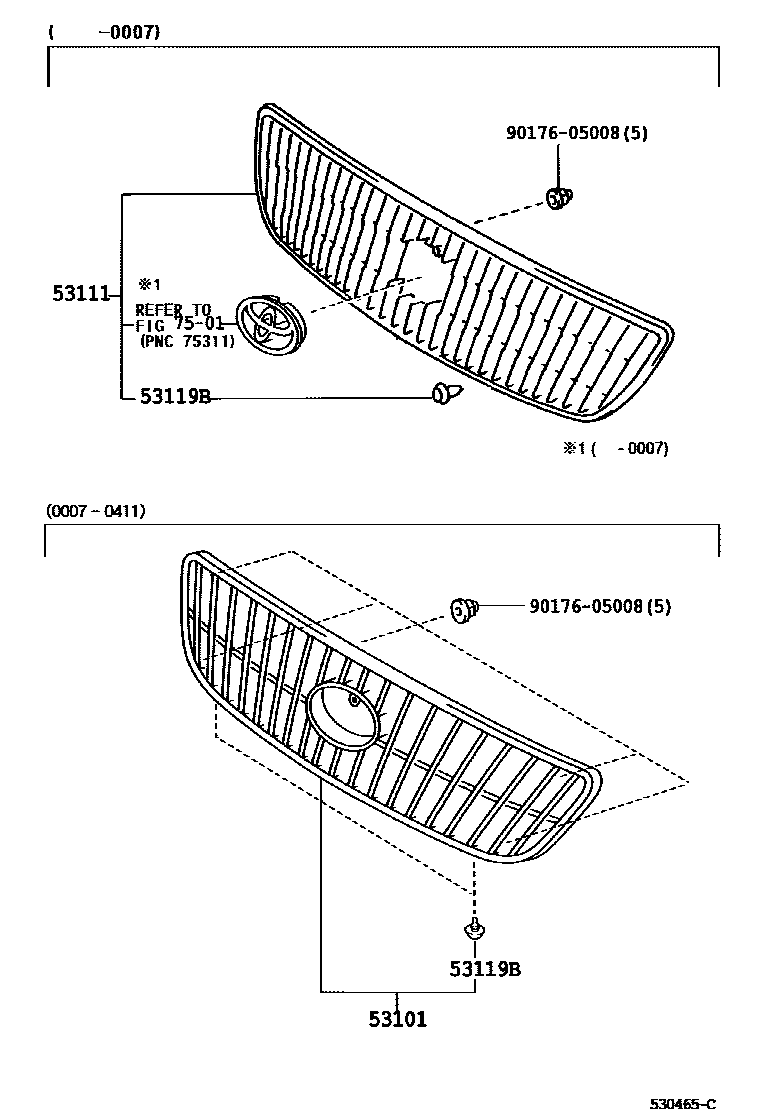

RADIATOR GRILLE

0001 1 0002 1

53101GRILLE SUB-ASSY, RADIATOR

main53101-30150iJZS160,UZS161200007

53111GRILLE, RADIATOR

main53111-30760iJZS160199708-200007

main53111-30810iJZS160,UZS161200411

53119BPROTECTOR, RADIATOR GRILLE

main53119-30140×2iJZS160,UZS161199708

7501EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)

→ Go to FIG 75-01

9017605008

main90176-05008

5 parts on this diagram · 2 diagrams in section
