STEERING WHEEL

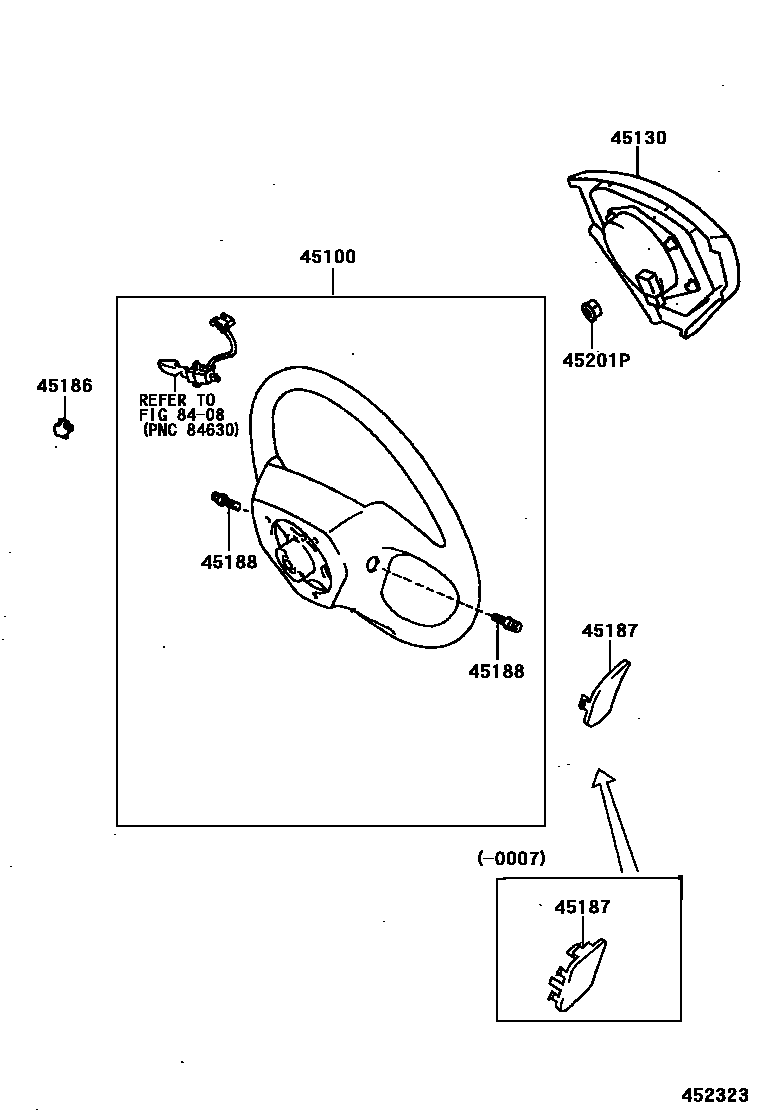

Parts diagram

45100WHEEL ASSY, STEERING

main45100-3A060-B0i199708-199908

3-SPOKE,LEATHER,DK.CHARCOAL,TRIM1#

main45100-3A060-C0i199708-199811

3-SPOKE,LEATHER,BLACK,TRIM2#

main45100-3A060-E0i199708-199908

3-SPOKE,LEATHER,SANDAL WOOD,TRIM0#

main45100-3A120-B0i199908-200007

3-SPOKE,LEATHER,DK.CHARCOAL,TRIM1#

main45100-3A120-C0i199908-200007

3-SPOKE,LEATHER,BLACK,TRIM2#; 3-SPOKE,LEATHER,BLACK,TRIM22,23,24,25,26

main45100-3A120-E0i199908-200007

3-SPOKE,LEATHER,SANDAL WOOD,TRIM0#

main45100-3A220-B0i200007-200407

3-SPOKE,LEATHER,DK.CHARCOAL,TRIM1#

main45100-3A220-C0i200007-200407

3-SPOKE,LEATHER,BLACK,TRIM2#

main45100-3A221-B0i200408-200501

3-SPOKE,LEATHER,DK.CHARCOAL,TRIM1#

main45100-3A221-C0i200408-200501

3-SPOKE,LEATHER,BLACK,TRIM2#

main45100-3A240-B0i200007-200407

3-SPOKE,LEATHER,DK.CHARCOAL,TRIM1#

main45100-3A240-C0i200007-200407

3-SPOKE,LEATHER,BLACK,TRIM2#

main45100-3A240-E0i200007-200407

3-SPOKE,LEATHER,SANDAL WOOD,TRIM0#

main45100-3A241-B0i200408-200501

3-SPOKE,LEATHER,DK.CHARCOAL,TRIM1#

main45100-3A241-C0i200408-200501

3-SPOKE,LEATHER,BLACK,TRIM2#

main45100-3A241-E0i200408-200501

3-SPOKE,LEATHER,SANDAL WOOD,TRIM0#

main45100-3A260-B0i200008-200012

3-SPOKE,WOOD&LEATHER,DK.CHARCOAL,TRIM1#

main45100-3A260-C0i200007-200012

3-SPOKE,WOOD&LEATHER,BLACK,TRIM2#

main45100-3A260-E0i200008-200012

3-SPOKE,WOOD&LEATHER,SANDAL WOOD,TRIM0#

main45100-3A261-B0i200012-200210

3-SPOKE,WOOD&LEATHER,DK.CHACOAL,TRIM1#

main45100-3A261-C0i200012-200210

3-SPOKE,WOOD&LEATHER,BLACK,TRIM2#

main45100-3A261-E0i200012-200210

3-SPOKE,WOOD&LEATHER,SANDAL WOOD,TRIM0#

main45100-3A262-B0i200210-200305

3-SPOKE,WOOD&LEATHER,DK.CHARCOAL,TRIM1#

main45100-3A262-C0i200210-200305

3-SPOKE,WOOD&LEATHER,BLACK,TRIM2#

main45100-3A262-E0i200210-200305

3-SPOKE,WOOD&LEATHER,SANDAL WOOD,TRIM0#

main45100-3A263-B0i200305-200407

3-SPOKE,WOOD&LEATHER,DK.CHARCOAL,TRIM1#

main45100-3A263-C0i200305-200407

3-SPOKE,WOOD&LEATHER,BLACK,TRIM2#

main45100-3A263-E0i200305-200407

3-SPOKE,WOOD&LEATHER,SANDAL WOOD,TRIM0#

main45100-3A264-B0i200408-200501

3-SPOKE,WOOD&LEATHER,DK.CHARCOAL,TRIM1#

main45100-3A264-C0i200408-200501

3-SPOKE,WOOD&LEATHER,BLACK,TRIM2#

main45100-3A264-E0i200408-200501

3-SPOKE,WOOD&LEATHER,SANDAL WOOD,TRIM0#

main45100-3A280-B0i200007-200012

3-SPOKE,WOOD&LEATHER,DK.CHARCOAL,TRIM1#

main45100-3A280-C0i200007-200012

3-SPOKE,WOOD&LEATHER,BLACK,TRIM2#

main45100-3A280-E0i200007-200012

3-SPOKE,WOOD&LEATHER,SANDAL WOOD,TRIM0#

main45100-3A281-B0i200012-200210

3-SPOKE,WOOD&LEATHER,DK.CHACOAL,TRIM1#

main45100-3A281-C0i200012-200210

3-SPOKE,WOOD&LEATHER,BLACK,TRIM2#

main45100-3A281-E0i200012-200210

3-SPOKE,WOOD&LEATHER,SANDAL WOOD,TRIM0#

main45100-3A282-B0i200210-200305

3-SPOKE,WOOD&LEATHER,DK.CHARCOAL,TRIM1#

main45100-3A282-C0i200210-200305

3-SPOKE,WOOD&LEATHER,BLACK,TRIM2#

main45100-3A282-E0i200210-200305

3-SPOKE,WOOD&LEATHER,SANDAL WOOD,TRIM0#

main45100-3A283-B0i200305-200407

3-SPOKE,WOOD&LEATHER,DK.CHARCOAL,TRIM1#

main45100-3A283-C0i200305-200407

3-SPOKE,WOOD&LEATHER,BLACK,TRIM2#

main45100-3A283-E0i200305-200407

3-SPOKE,WOOD&LEATHER,SANDAL WOOD,TRIM0#

main45100-3A284-B0i200408-200501

3-SPOKE,WOOD&LEATHER,DK.CHARCOAL,TRIM1#

main45100-3A284-C0i200408-200501

3-SPOKE,WOOD&LEATHER,BLACK,TRIM2#

main45100-3A284-E0i200408-200501

3-SPOKE,WOOD&LEATHER,SANDAL WOOD,TRIM0#

45130BUTTON ASSY, HORN

main45130-30540-B0i199811-199908

DK.CHARCOAL,TRIM1#

main45130-30540-C0i199708-199908

BLACK,TRIM22,23,24,25,26

main45130-30540-E0i199708-199811

SANDAL WOOD,TRIM0#

main45130-30541-B0i199908-200007

DK.CHARCOAL,TRIM1#

main45130-30541-C0i199908-200007

BLACK,TRIM2#; BLACK,TRIM22,23,24,25,26

main45130-30541-E0i199908-200007

SANDAL WOOD,TRIM0#

main45130-30570-B0i199811-199908

DK.CHARCOAL,TRIM1#

main45130-30570-C0i199811-199908

BLACK,TRIM2#

main45130-30570-E0i199811-199908

SANDAL WOOD,TRIM0#

main45130-30590-B0i200007-200501

DK.CHARCOAL,TRIM1#

main45130-30590-C0i200007-200501

BLACK,TRIM2#

main45130-30590-E0i200007-200501

SANDAL WOOD,TRIM0#

45186COVER, STEERING WHEEL, LOWER NO.2

main45186-44010-B5i199708-200501

DK.CHARCOAL,TRIM1#

main45186-44010-C0i199708-200501

BLACK,TRIM2#

main45186-44010-E4i199708-200501

SANDAL WOOD,TRIM0#

45187COVER, STEERING WHEEL, LOWER NO.3

main45187-30060-B1i199708-200007

DK.CHARCOAL,TRIM1#

main45187-30060-C0i199708-200007

BLACK,TRIM2#; BLACK,TRIM22,23,24,25,26

main45187-30060-E1i199708-200007

SANDAL WOOD,TRIM0#

main45187-48010-B0i200007-200501

DK.CHARCOAL,TRIM1#

main45187-48010-C0i200007-200501

BLACK,TRIM2#

main45187-48010-E0i200007-200501

SANDAL WOOD,TRIM0#

45188SCREW, STEERING WHEEL PAD ATTACHING

main90148-60007×2i199708-200501

L=18

45201PNUT, STEERING WHEEL SET

main90179-12071i199708

8408CRUISE CONTROL (AUTO DRIVE)

→ Go to FIG 84-08

7 parts on this diagram · 2 diagrams in section
