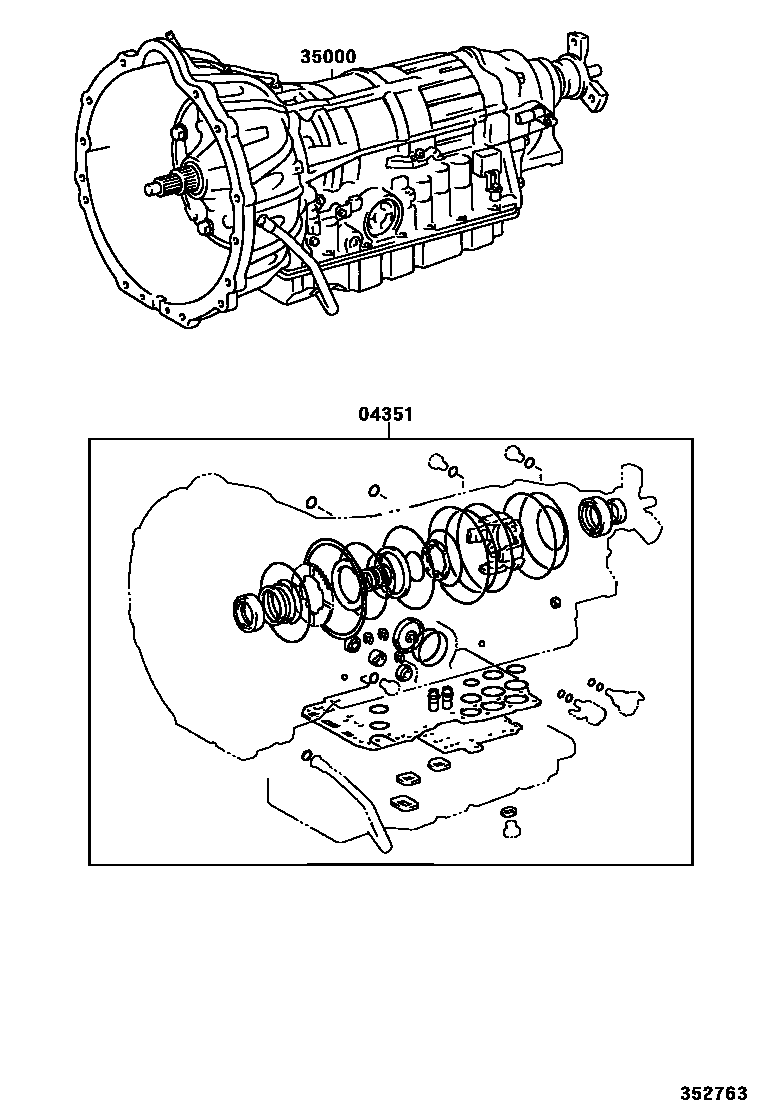

TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (ATM)

Parts diagram

04351GASKET KIT, AUTOMATIC TRANSMISSION OVERHAUL

main04351-30360i199708-199908

main04351-30361i199908-200007

main04351-30490i200007-200210

main04351-30491i200210-200501

35000TRANSMISSION ASSY, AUTOMATIC

main35000-3F440i199708-199803

main35000-3F441i199803-199808

main35000-3F442i199808-199908

main35000-3F510i199908-200007

main35000-3F530i200007-200501

A650E

main35000-3F540i200007-200501

A650E

2 parts on this diagram · 1 diagram in section
