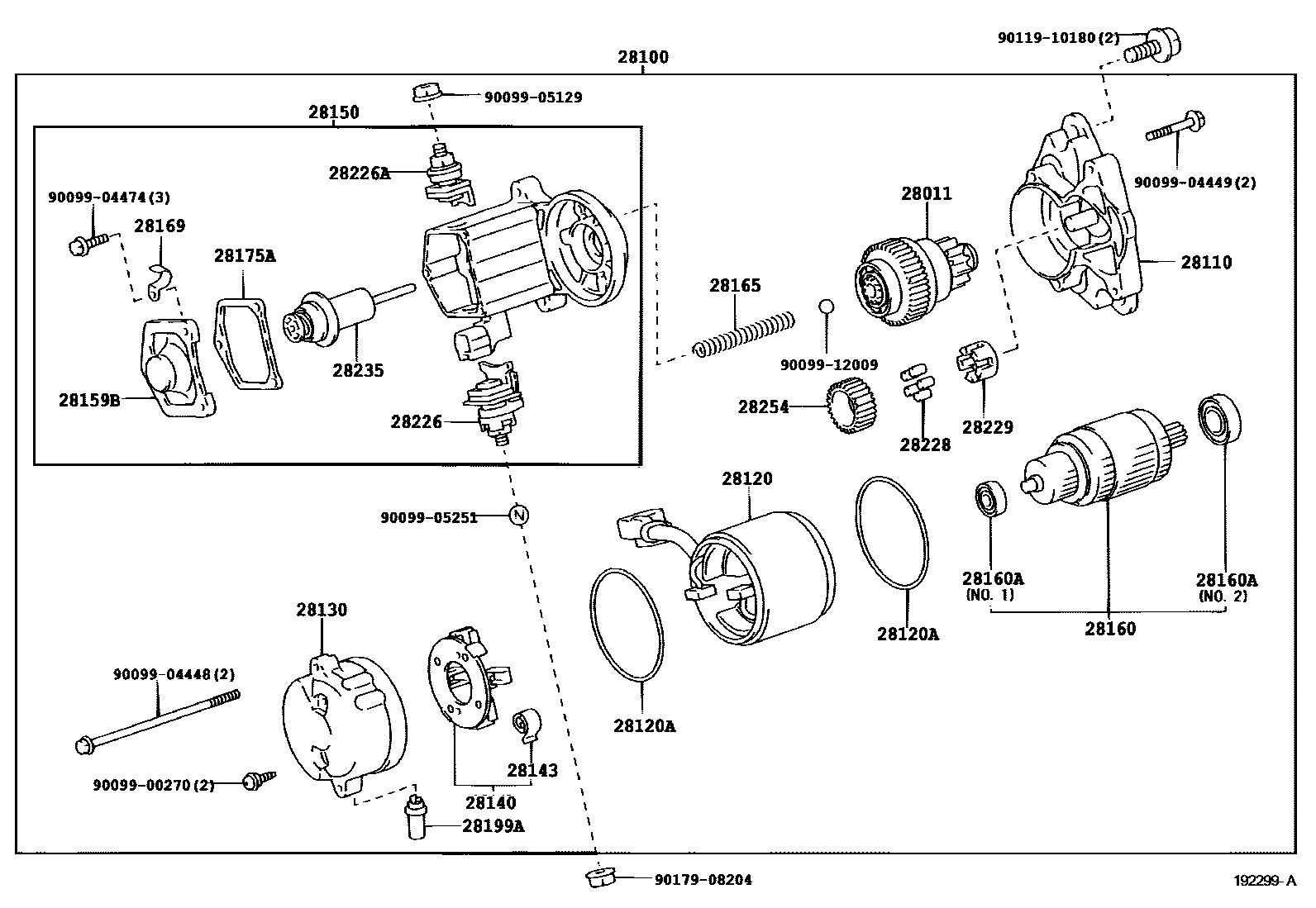

Parts diagram
28011CLUTCH SUB-ASSY, STARTER
main28011-46240i200107-200501
main28011-50050i200007-200406
main28011-50060i200007-200410
main28011-50080i200406-200501
main28011-50100i200410-200501
main28011-70020i199708-200107
main28011-76070i199708-200501
28100STARTER ASSY
main28100-46140i199708
12V 1.4KW
main28100-46200i199708-200107
12V 1.0KW
main28100-46220i199708
12V 1.4KW
main28100-46240i200107
12V 1.0KW
main28100-50080i200007
12V 1.4KW
sub28100-50081
main28100-50110i200007
12V 2.0KW
28110HOUSING ASSY, STARTER DRIVE
main28110-46090i199708-200501
main28110-46130i199708-200107
main28110-46220i199708-200501
main28110-46240i200107-200501
main28110-50050i200007-200406
main28110-50060i200007-200307
main28110-50080i200406-200501
28120YOKE ASSY, STARTER
main28120-54380i200007-200307
main28120-66040i199708-200501
main28120-70050i199708-200501
28120ARING, O(FOR STARTER YOKE)
main90099-14064i199708-200501
main90099-14092i199708-200501
28130FRAME ASSY, STARTER COMMUTATOR END
main28130-15190i199708-200501
main28130-46090i199708-200501
main28130-46220i199708-200501
main28130-50050i200007-200501
main28130-50060i200007-200307
28140HOLDER ASSY, STARTER BRUSH
main28140-54380i200007-200501
main28140-70020i199708-200501
main28140-76070i199708-200501
28143SPRING, STARTER BRUSH
main28143-54380i200007-200307
main28143-70020i199708-200501
main90099-17112i199708-200501
28150SWITCH ASSY, MAGNET STARTER
main28150-46150i199708-200501
main28150-46220i199708-200501
main28150-50080i200007-200501
main28150-50100i200007-200410
main28150-50110i200410-200501
main28150-70030i199708-200501
sub28150-22100
28159BCOVER, MAGNET SWITCH
main28159-50080i200007-200307
main28159-55050i199708
28160ARMATURE ASSY, STARTER
main28160-70050i199708-200501
main28160-74070i199708-200501
main28160-75120i200007-200501
28160ABEARING, STARTER ARMATURE
main90099-10196i199708-200501
NO.1
main90099-10197i199708-200501
NO.2
main90099-10208i200007-200307
NO.1
28165SPRING, STARTER MAGNET SWITCH RETURN
main28165-76070i199708-200501
28169CLAMP, STARTER MOTOR LEAD WIRE
main28169-55050i199708
28175AGASKET, MAGNET SWITCH COVER
main28175-50080i200007-200307
main28175-55050i199708
28199APROTECTOR, DUST STARTER
main28199-46080i199708-200501
main28199-50050i200007-200501
main28199-74110i199708-200501
28226STARTER KIT, BATTERY TERMINAL
main28226-22050i199708-200501
main28226-50080i200007-200501
28226ASTARTER KIT, MOTOR TERMINAL
main28226-50070i200007-200307
main28226-74070i199708
28228ROLLER, STARTER IDLE GEAR CLUTCH
main28228-26040i199708-200501
28229RETAINER, STARTER IDLE GEAR
main28229-74070i199708-200501
28235PLUNGER, MAGNET SWITCH
main28235-54380i200007-200501
main28235-55050i199708-200501
28254PINION, STARTER IDLE GEAR
main28254-64130i200007-200307
main28254-74070i199708-200501
9009900270
main90099-00270
9009904448
main90099-04448
9009904449
main90099-04449
9009904474
main90099-04474
9009905129
main90099-05129
9009905251
main90099-05251
9009912009
main90099-12009
9011910180
main90119-10180
9017908204
main90179-08204

31 parts on this diagram · 5 diagrams in section
