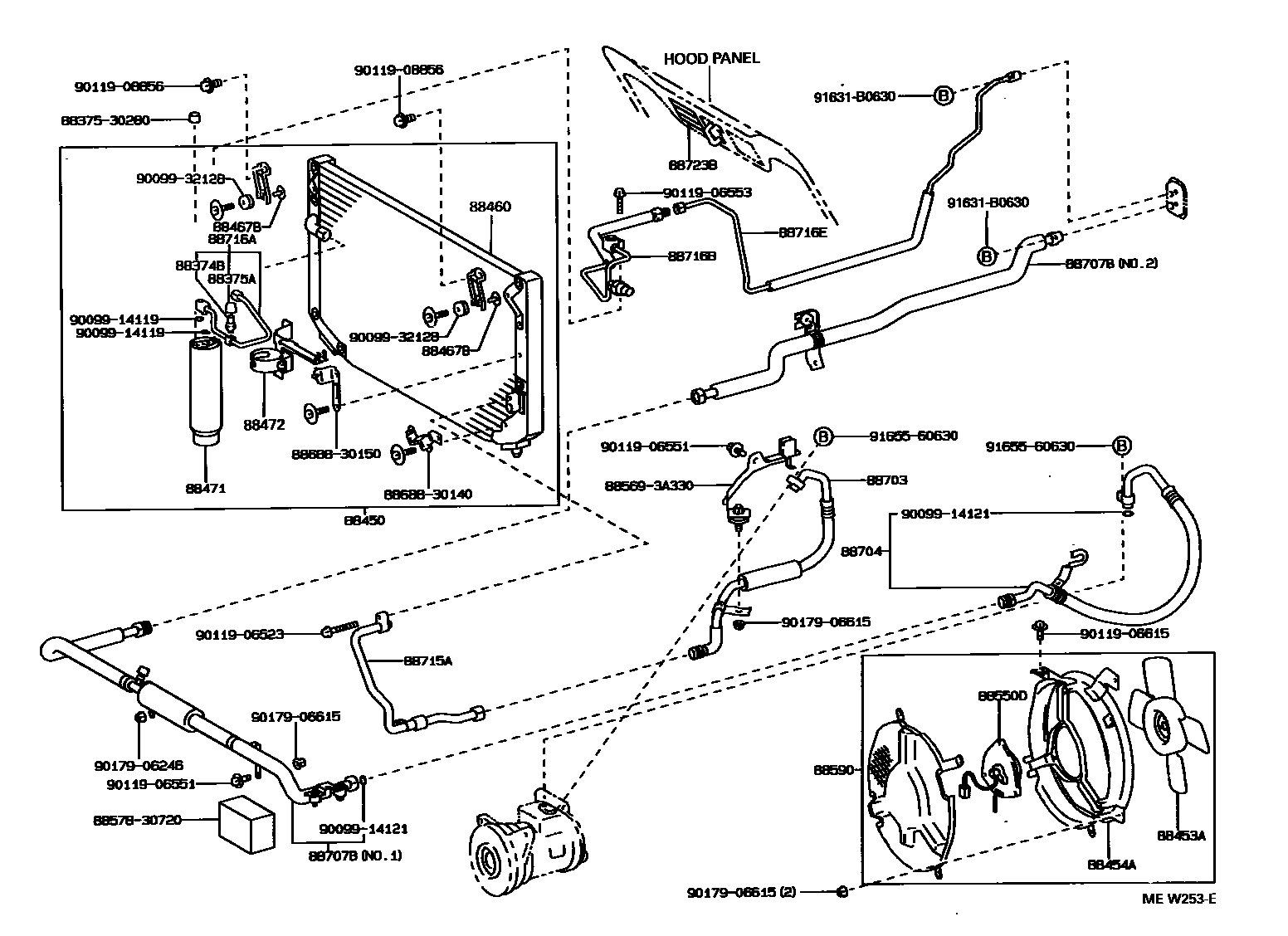

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1 0003 1

88374BVALVE, SERVICE, NO.1

main88374-30010iJZS147..LHD199303-199708

88375ACAP, SERVICE VALVE (FOR COOLER PIPE)

main88375-30280iJZS147..RHD199308-199708

88450CONDENSER ASSY, W/RECEIVER

main88450-30250iJZS147..RHD199308-199708

main88450-30260iJZS147..LHD199303-199708

88453AFAN, COOLING

main88453-30020iJZS147..GCC199303-199708

88454ASHROUD, FAN

main88454-30030iJZS147..GCC199303-199708

88460CONDENSER ASSY, COOLER

main88460-30760iJZS147..RHD199308-199708

main88460-30770iJZS147..LHD199303-199708

88467BINSULATOR, COOLER CONDENSER MOUNTING

main88467-14050×2iJZS147..LHD199303-199708

88471TANK, RECEIVER AIR CONDITIONER

main88471-30370iJZS147199303-199708

88472BRACKET, RECEIVER TANK, NO.1

main88473-30270iJZS147..LHD199303-199708

88550DMOTOR ASSY, BLOWER

main88550-30350iJZS147..GCC199303-199708

88590BLOWER ASSY, W/SHROUD

main88590-30020iJZS147..GCC199303-199708

88703HOSE SUB-ASSY, DISCHARGE

main88703-30420iJZS147199303-199708

88704HOSE SUB-ASSY, SUCTION

main88704-30490iJZS147..LHD199303-199708

88707BTUBE SUB-ASSY, SUCTION, B

main88707-30310iJZS147..LHD199303-199708

NO.1

main88707-30330iJZS147..LHD199303-199708

NO.2

main88707-30370iJZS147..RHD199308-199708

88715APIPE, COOLER REFRIGERANT DISCHARGE, A

main88715-30450iJZS147199303-199708

88716APIPE, COOLER REFRIGERANT LIQUID, A

main88726-3K060iJZS147..LHD199303-199708

88716BPIPE, COOLER REFRIGERANT LIQUID, B

main88726-3A460iJZS147..RHD199308-199708

main88726-3A660iJZS147..LHD199303-199708

88716EPIPE, COOLER REFRIGERANT LIQUID, E

main88726-3A410iJZS147..RHD199308-199708

main88726-3A650iJZS147..LHD199303-199708

88723BLABEL, COOLER SERVICE CAUTION

main88723-20040iJZS147199303-199410

main88723-50150iJZS147199410-199708

8837530280CAP, COOLER COMPRESSOR SERVICE VALVE

main88375-30280

885693A330CLAMP (FOR COOLER RELAY)

main88569-3A330

8857830720PAKING, COOLER AIR DUCT

main88578-30720

8868830140BRACKET, COOLER DIAPHRAGM

main88688-30140

8868830150BRACKET, COOLER DIAPHRAGM

main88688-30150

9009914119

main90099-14119

9009914121

main90099-14121

9009932128

main90099-32128

9011906523

main90119-06523

9011906551

main90119-06551

9011906553

main90119-06553

9011906615

main90119-06615

9011908856

main90119-08856

9017906246

main90179-06246

9017906615

main90179-06615

91631B0630

main91631-B0630

9165560630

main91655-60630

36 parts on this diagram · 3 diagrams in section
