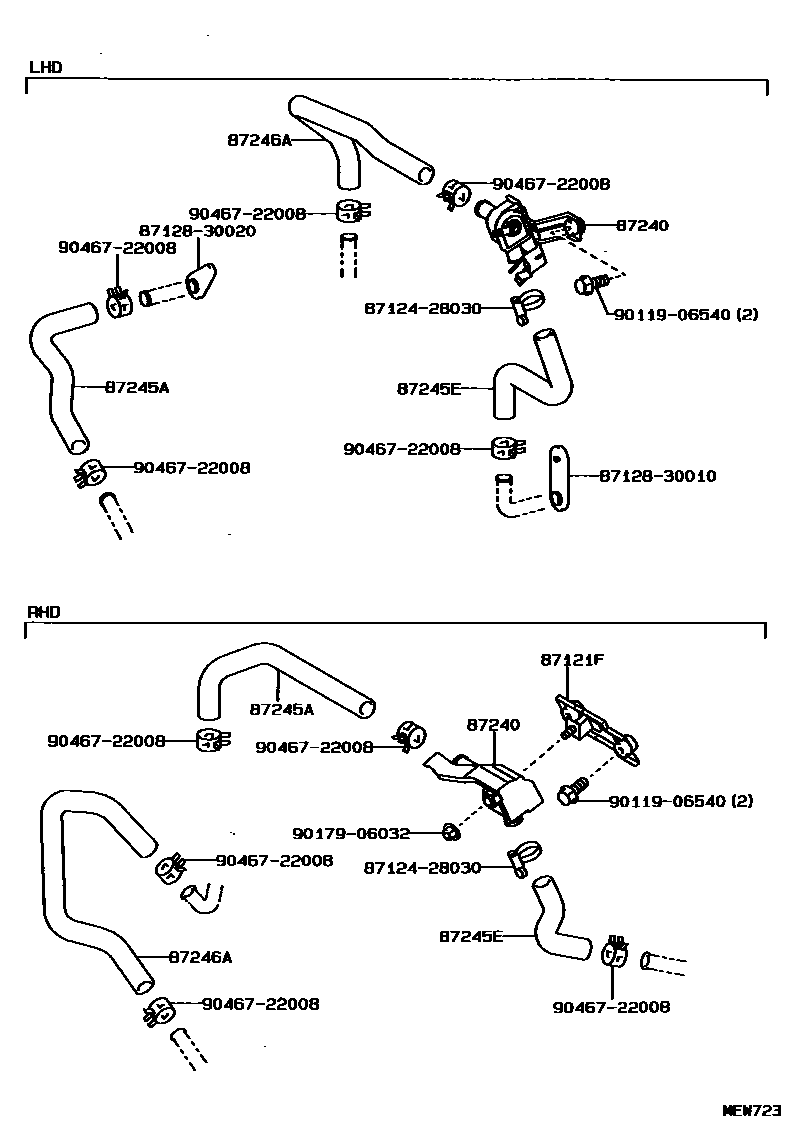

HEATING & AIR CONDITIONING - WATER PIPING

87121FBRACKET, HEATER

main87121-30060iJZS147..RHD199308-199708

87240VALVE ASSY, HEATER WATER

main87240-30590iJZS147..LHD199303-199708

main87240-30620iJZS147..RHD199308-199708

87245AHOSE, HEATER WATER, INLET A

main87245-3A810iJZS147..LHD199303-199708

main87245-3A880iJZS147..RHD199308-199708

87245EHOSE, HEATER WATER, INLET E

main87245-3A780iJZS147..LHD199303-199708

main87245-3A890iJZS147..RHD199308-199708

87246AHOSE, HEATER WATER, OUTLET A

main87245-3A500iJZS147..RHD199308-199708

main87245-3A820iJZS147..LHD199303-199708

8712428030CLAMP, HEATER

main87124-28030

8712830010GROMMET, HEATER

main87128-30010

8712830020GROMMET, HEATER

main87128-30020

9011906540

main90119-06540

9017906032

main90179-06032

9046722008

main90467-22008

11 parts on this diagram · 1 diagram in section
