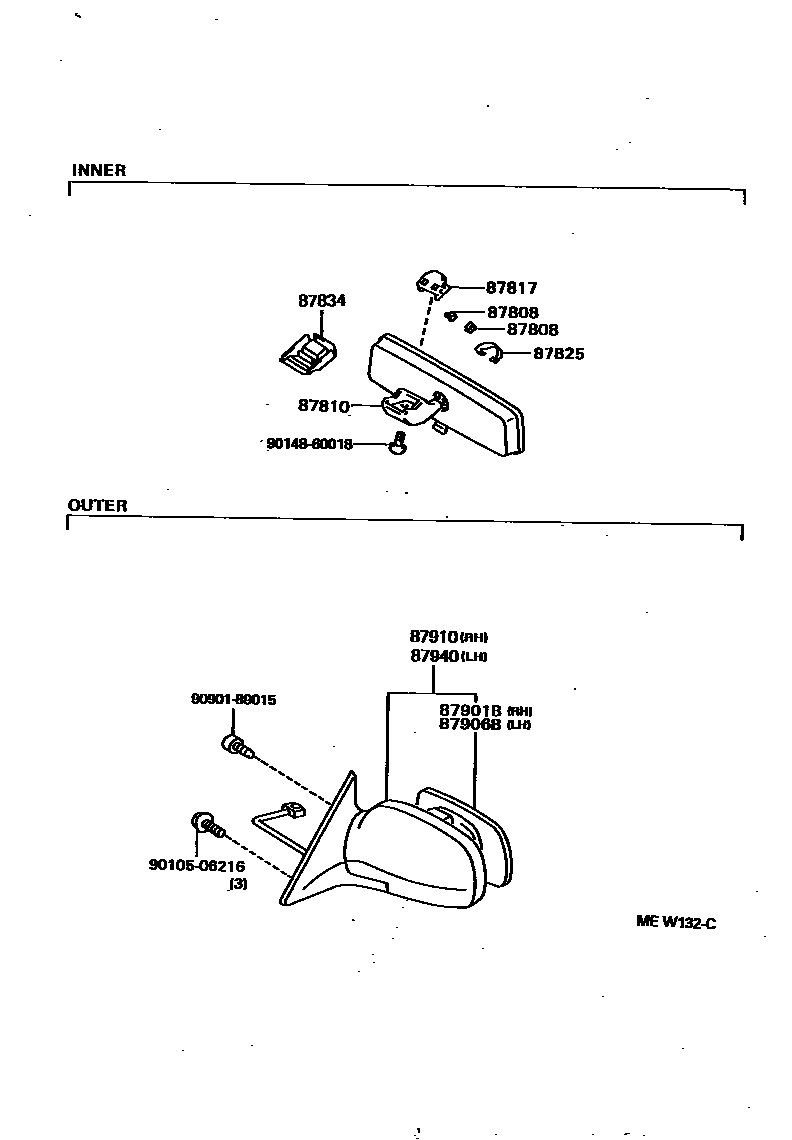

MIRROR
87808HOLDER SUB-ASSY, INNER MIRROR
87810MIRROR ASSY, INNER REAR VIEW
IVORY,TRIM0#
LI.GRAY,TRIM1#
LI.SPRUCE,TRIM6#
IVORY,TRIM0#
LIGHT GRAY,TRIM1#
LIGHT SPRUCE,TRIM6#
87817SPACER, INNER REAR VIEW MIRROR
87825SPRING, INNER REAR VIEW MIRROR SETTING
87834COVER, INNER REAR VIEW MIRROR STAY HOLDER
87901BMIRROR SUB-ASSY, OUTER REAR VIEW, RH
87906BMIRROR SUB-ASSY, OUTER REAR VIEW, LH
87910MIRROR ASSY, OUTER REAR VIEW, RH
WARM GRAY PM,046
SUPER SILVER ME,176
DARK BLUEISH GRAY ME,183
BLACK,202
WINE RED MC,3J8
BEIGE ME,4K9
BLUEISH GREEN MIO,6M2
DARK BLUE MCFP,8J5
WARM GRAT PM,046
SU.WHITE PM,051
DK.BL.GRAY ME,183
SILVER ME,199
BLACK,202
WINE RED MC,3J8
BEIGE MM,4K9
BEIGE ME.,4M9
BL.GREEN MIO.,6M2
GRAYISH GREEN M.M,6N0
DK.GREEN MC.P.I.O,6N9
DK.BLUE MCFP,8J5
DK.BLUE MC.,8L1
SU.WHITE PM,051
SILVER ME,199
BLACK,202
MAGENTA MC.,3L3
BEIGE ME.,4M9
GRAYISH GREEN M.M.,6N0
DK.GREEN MC.P.I.O.,6N9
DK.BLUE MC.,8L1
SU.WHITE PM,051
SILVER ME,199
BLACK,202
MAGENTA MC.,3L3
BEIGE ME.,4M9
GRAYISH GREEN M.M.,6N0
DK.GREEN MC.P.I.O.,6N9
DK.BLUE MC.,8L1
WARM GRAY PM,046
SU.WHITE PM,051
DK.BL.GRAY ME,183
SILVER ME,199
BLACK,202
WINE RED MC,3J8
MAGENTA MC.,3L3
BEIGE MM,4K9
BEIGE ME.,4M9
BL.GREEN MIO.,6M2
GRAYISH GREEN M.M,6N0
DK.GREEN MC.P.I.O,6N9
DK.BLUE MCFP,8J5
DK.BLUE MC.,8L1
SU.WHITE PM,051
SILVER ME,199
BLACK,202
MAGENTA MC,3L3
BEIGE ME,4M9
GRAYISHGREEN M.M,6N0
DK.GREEN MC P.I.O,6N9
DK.BLUE MC,8L1
87940MIRROR ASSY, OUTER REAR VIEW, LH
WARM GRAY PM,046
SUPER SILVER ME,176
DARK BLUEISH GRAY ME,183
BLACK,202
WINE RED MC,3J8
BEIGE ME,4K9
BLUISH GREEN MIO,6M2
DARK BLUE MCFP,8J5
WARM GRAY PM,046
SU.WHITE PM,051
DK.BL.GRAY ME,183
SILVER ME,199
BLACK,202
WINE RED MC,3J8
BEIGE MM,4K9
BEIGE ME.,4M9
BL.GREEN MIO.,6M2
GRAYISH GREEN M.M,6N0
DK.GREEN MC.P.I.O,6N9
DK.BLUE MCFP,8J5
DK.BLUE MC.,8L1
SU.WHITE PM,051
SILVER ME,199
BLACK,202
MAGENTA MC.,3L3
BEIGE ME.,4M9
GRAYISH GREEN M.M.,6N0
DK.GREEN MC.P.I.O.,6N9
DK.BLUE MC.,8L1
SU.WHITE PM,051
SILVER ME,199
BLACK,202
MAGENTA MC.,3L3
BEIGE ME.,4M9
GRAYISH GREEN M.M.,6N0
DK.GREEN MC.P.I.O.,6N9
DK.BLUE MC.,8L1
WARM GRAY PM,046
SU.WHITE PM,051
DK.BL.GRAY ME,183
SILVER ME,199
BLACK,202
WINE RED MC,3J8
MAGENTA MC.,3L3
BEIGE MM,4K9
BEIGE ME.,4M9
BL.GREEN MIO.,6M2
GRAYISH GREEN M.M,6N0
DK.GREEN MC.P.I.O,6N9
DK.BLUE MCFP,8J5
DK.BLUE MC.,8L1
SU.WHITE PM,051
SILVER ME,199
BLACK,202
MAGENTA MC,3L3
BEIGE ME,4M9
GRAISH GREEN M.M,6N0
DK.GREEN MC P.I.O,6N9
DK.BLUE MC,8L1
9010506216
main90105-06216
9014860018
main90148-60018
9090189015
main90901-89015
12 parts on this diagram · 1 diagram in section
