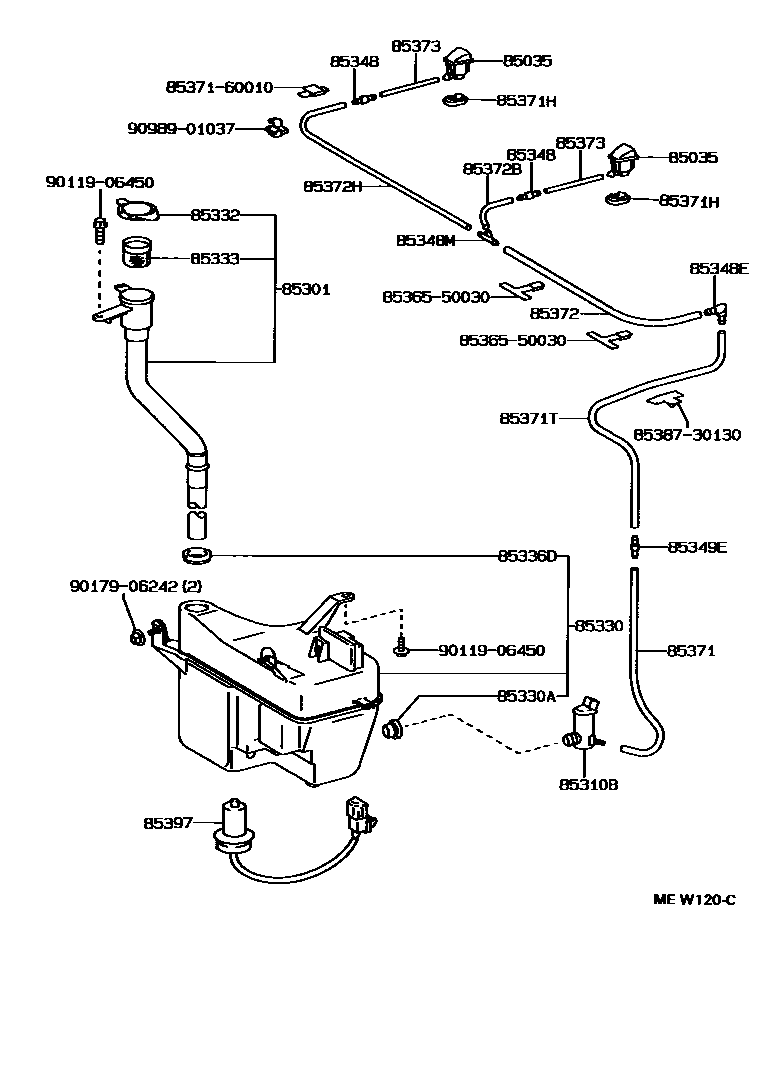

WINDSHIELD WASHER
85035NOZZLE SUB-ASSY, WASHER
WARM GRAY PM,046
DK.BL.GRAY ME,183
BLACK,202
DK.BLUE MCFP,8J5
SU.WHITE PM,051
SILVER ME,199
WINE RED MC,3J8
MAGENTA MC.,3L3
BEIGE ME,4K9
BEIGE ME,4M9
BL.GREEN MIO,6M2
GRAYISH GREEN M.M,6N0
DK.GREEN MC.P.I.O,6N9
DK.BLUE MC.,8L1
WARM GRAY PM,046
SUPER WHITE PEARL MC,051
SUPER SILVER ME,176
DK BL GRAY ME,183
SILVER ME,199
BLACK,202
WINE RED MIC,3J8
MEGENTA MC.,3L3
BEIGE MM,4K9
BEIGE ME,4M9
BL GREEN MIO,6M2
GRAYISH GREEN M.M,6N0
DK.GREEN MC.P.I.O,6N9
DK BLUE MCFP,8J5
DK.BLUE MC.,8L1
WARM GRAY PM,046
SU.SHITE PM,051
DK.BL.GRAY ME,183
SILVER ME,199
BLACK,202
WINE RED MC,3J8
MAGENTA MC.,3L3
BEIGE MM,4K9
BEIGE ME.,4M9
BL.GREEN MIO.,6M2
GRAYISH GREEN M.M,6N0
DK.GREEN MC.P.I.O,6N9
DK.BLUE MCFP,8J5
DK.BLUE MC.,8L1
85301INLET SUB-ASSY, WASHER
W(*HC)
W(*HC)
85310BMOTOR & PUMP ASSY, WINDSHIELD WASHER
85330JAR ASSY, WINDSHIELD WASHER
W(*HC)
85330ABUSH, WINDSHIELD WASHER JAR
85332CAP, WINDSHIELD WASHER JAR
85333FILTER, WINDSHIELD WASHER JAR
85336DPACKING, WINDSHIELD WASHER JAR
85348JOINT, WINDSHIELD WASHER HOSE, NO.1
85348EJOINT, WINDSHIELD WASHER ELBOW, NO.2
85348MJOINT, WINDSHIELD WASHER HOSE, NO.3
85349EJOINT, WINDSHIELD WASHER HOSE, NO.5
85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
L=420
85371HCOVER, WASHER NOZZLE SERVICE HOLE
85371THOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT)
L=1400
85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
L=1450
85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2
L=1450
85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3
L=1450
85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
L=1450
85397SWITCH ASSY,LEVEL WARNING
8536550030INSULATOR, WINDSHIELD WASHER JAR
main85365-50030
8537160010HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
main85371-60010
8538730130CLAMP NO.1 (FOR WINDSEIELD WASHER)
main85387-30130
9011906450
main90119-06450
9017906242
main90179-06242
9098901037
main90989-01037
26 parts on this diagram · 1 diagram in section
