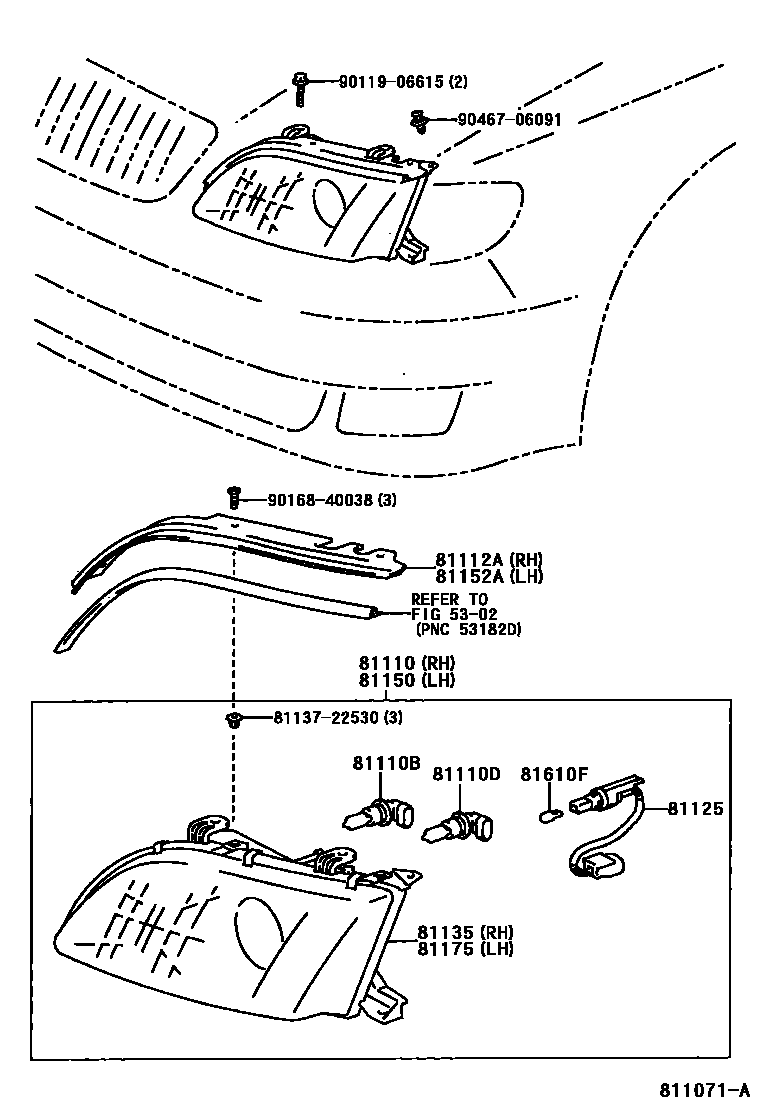

HEADLAMP

5302HOOD & FRONT FENDER

→ Go to FIG 53-02

81110HEADLAMP ASSY, RH

main81120-3A210iJZS147..GCC199303-199708

main81120-3A220iJZS147..LHD..EUR199308-199508

main81120-3A222iJZS147..LHD..EUR199508-199708

main81120-3A240iJZS147..RHD199308-199508

main81120-3A242iJZS147..RHD199508-199708

81110BBULB(FOR HEADLAMP, NO.1)

main90080-81041×2iJZS147199308-199708

12V 65W

main90981-13046×2iJZS147199303-199308

12V65W(SAE),60W(ECE)

81110DBULB(FOR HEADLAMP, NO.2)

main90080-81040×2iJZS147199308-199708

12V 51W

main90981-13047×2iJZS147199303-199308

12V 51W,HALOGEN

81112ARIM, HEADLAMP, RH

main81116-3A210iJZS147199303-199708

81125CORD, HEADLAMP

main81125-3A210×2iJZS147199303-199708

81135UNIT ASSY, HEADLAMP, RH

main81130-3A210iJZS147..GCC199303-199708

main81130-3A220iJZS147..LHD..EUR199308-199508

main81130-3A222iJZS147..LHD..EUR199508-199708

main81130-3A240iJZS147..RHD199308-199508

main81130-3A242iJZS147..RHD199508-199708

81150HEADLAMP ASSY, LH

main81160-3A210iJZS147..GCC199303-199708

main81160-3A220iJZS147..LHD..EUR199308-199508

main81160-3A222iJZS147..LHD..EUR199508-199708

main81160-3A240iJZS147..RHD199308-199508

main81160-3A242iJZS147..RHD199508-199708

81152ARIM, HEADLAMP, LH

main81156-3A210iJZS147199303-199708

81175UNIT ASSY, HEADLAMP, LH

main81170-3A210iJZS147..GCC199303-199708

main81170-3A220iJZS147..LHD..EUR199308-199508

main81170-3A222iJZS147..LHD..EUR199508-199708

main81170-3A240iJZS147..RHD199308-199508

main81170-3A242iJZS147..RHD199508-199708

81610FBULB(FOR CLEARANCE LAMP)

main90083-81004×2iJZS147199303-199308

12V 5W

main99132-12050×2iJZS147199308-199708

12V 5W

8113722530PROTECTOR, HEADLAMP, NO.2 RH

main81137-22530

9011906615

main90119-06615

9016840038

main90168-40038

9046706091

main90467-06091

15 parts on this diagram · 1 diagram in section
