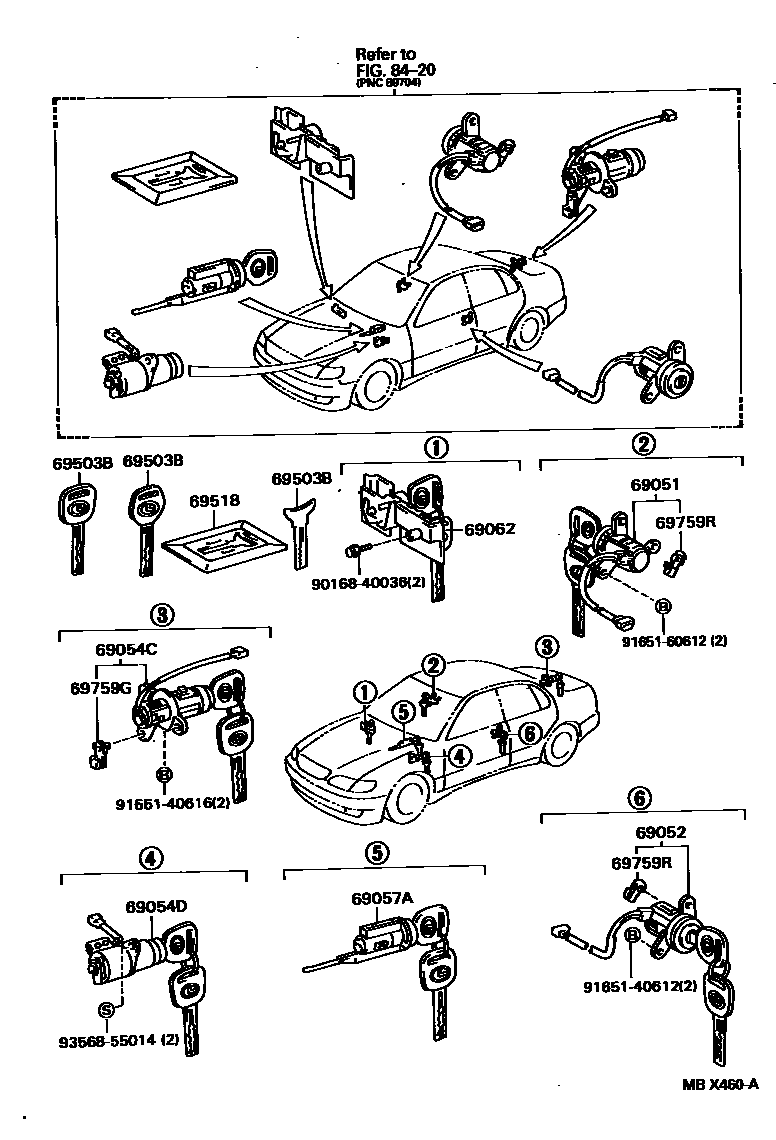

LOCK CYLINDER SET

0001 1WIRELESS DOOR LOCK 0002 1IMMOBILIZER

69051CYLINDER & KEY SET, DOOR LOCK, RH

main69051-30230iJZS147199303-199708

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-30200iJZS147199303-199708

69054CCYLINDER & KEY SET, LUGGAGE COMPARTMENT LOCK

main69055-30290iJZS147..GCC199608-199708

main69055-30300iJZS147..EUR199608-199708

69054DCYLINDER & KEY SET, LUGGAGE OPENER CANCEL

main69053-30040iJZS147199303-199708

69057ACYLINDER & KEY SET, IGNITION SWITCH LOCK

main69057-30140iJZS147199303-199508

69062CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK

main69056-30160iJZS147..LHD199303-199708

main69056-30170iJZS147..RHD199308-199708

69503BKEY, CUT

main69515-50040iJZS147199303-199508

MASTER KEY,CARD

main69515-50090iJZS147..GCC199508-199510

MASTER KEY

main69516-50040iJZS147199303-199508

SUB KEY

69518CARD, SPARE KEY

main69518-50011iJZS147199303-199412

main69518-50020iJZS147199412-199508

69759GSNAP, LUGGAGE DOOR LOCK CYLINDER

main69759-24080iJZS147199303-199708

69759RSNAP, FRONT DOOR LOCK CYLINDER

main69759-24100iJZS147199303-199708

ORANGE

main69759-24110iJZS147199303-199708

PINK

8420WIRELESS DOOR LOCK

→ Go to FIG 84-20

9016840036

main90168-40036

9165140612

main91651-40612

9165140616

main91651-40616

9165160612

main91651-60612

9356855014

main93568-55014

16 parts on this diagram · 2 diagrams in section
