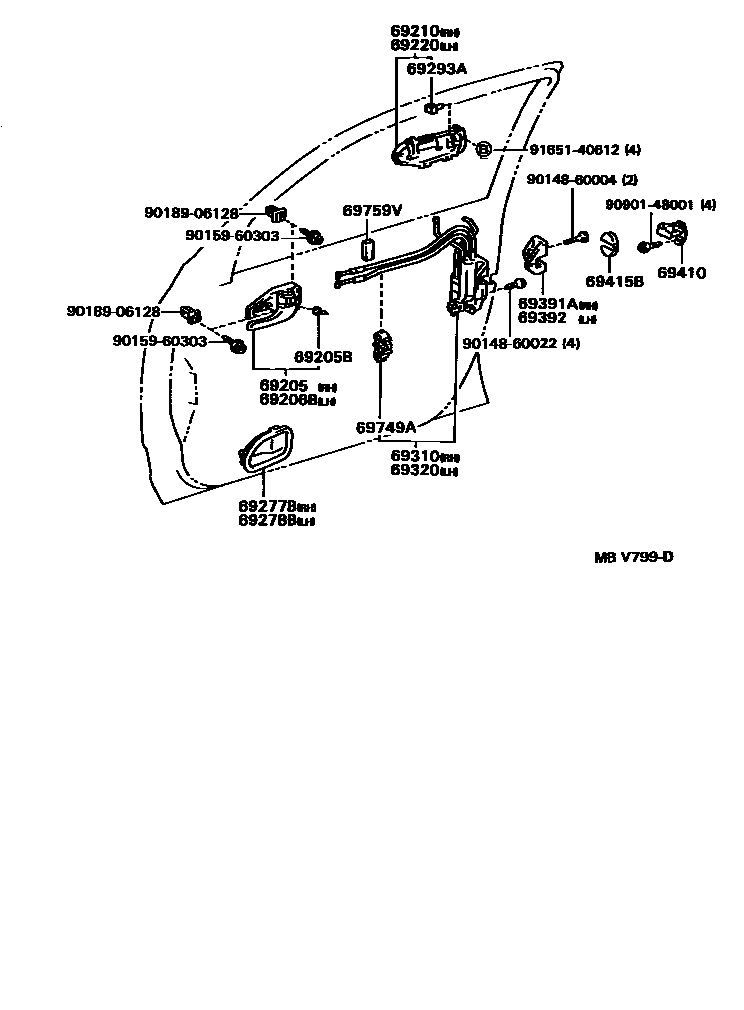

FRONT DOOR LOCK & HANDLE
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
IVORY,TRIM0#
MD.GRAY,TRIM1#
SPRUCE,TRIM6#
69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
IVORY,TRIM0#
MD.GRAY,TRIM1#
SPRUCE,TRIM6#
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
WARM GRAY PEARL MICA,046
SUPER WHITE PEARL MC,051
SUPER SILVER 3 M,176
DK.BL.GRAY ME,183
SILVER ME,199
BLACK,202
WINE RED MICA,3J8
MAGENTA MC.,3L3
BEIGE ME,4K9
BEIGE ME.,4M9
BLUEISH GREEN MIO,6M2
GRAYISH GREEN M.M.,6N0
DK.GREEN MC. P.I.O.,6N9
DK.BLUE MICA FP,8J5
DK BLUE MC FP,8L1
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
WARM GRY P MC,046
SUPER WHITE PEARL MC,051
SUPER SILVER 3 M,176
DK.BL.GRAY ME,183
SILVER ME,199
BLACK,202
WINE RED MICA,3J8
MAGENTA MC.,3L3
BEIGE ME,4K9
BEIGE ME.,4M9
BLUEISH GREEN MIO,6M2
GRAYISH GREEN M.M.,6N0
DK. GREEN MC. P.I.O.,6N9
DK.BLUE MICA FP,8J5
DK.BLUE MC FP,8L1
69277BBEZEL, FRONT DOOR INSIDE HANDLE, RH
IVORY,TRIM0#
GRAY,TRIM1#
LI.SPRUCE,TRIM6#
69278BBEZEL, FRONT DOOR INSIDE HANDLE, LH
IVORY,TRIM0#
GRAY,TRIM1#
LI.SPRUCE,TRIM6#
69293ASNAP, FRONT DOOR OUTSIDE HANDLE
69310LOCK ASSY, FRONT DOOR, RH
69320LOCK ASSY, FRONT DOOR, LH
69391ACOVER, FRONT DOOR LOCK, OUTER RH
69392COVER, FRONT DOOR LOCK, OUTER LH
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69415BCOVER, DOOR LOCK STRIKER, FRONT
69749ACLAMP, FRONT DOOR LOCK LINK, NO.1
69759VSILENCER, FRONT DOOR LOCK LINK
9014860004
main90148-60004
9014860022
main90148-60022
9015960303
main90159-60303
9018906128
main90189-06128
9090148001
main90901-48001
9165140612
main91651-40612
22 parts on this diagram · 1 diagram in section
