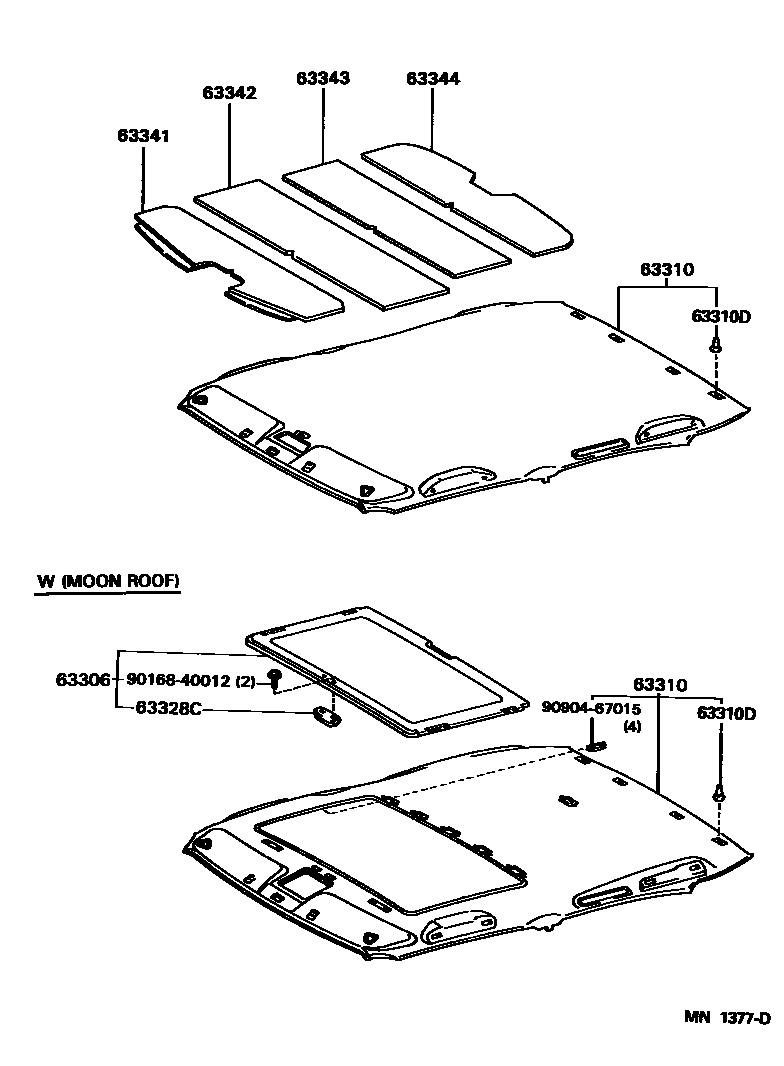

ROOF HEADLINING & SILENCER PAD

63306TRIM SUB-ASSY, SUNSHADE

main63306-30060-A0iJZS147199303-199708

IVORY,TRIM0#

main63306-30060-B0iJZS147199303-199708

SHADOW GRAY,TRIM1#

main63306-30060-G0iJZS147199303-199708

LI.SPRUCE,TRIM6#

63310HEADLINING ASSY, ROOF

main63310-30550-A0iJZS147..RHD199308-199708

IVORY,TRIM0#

main63310-30550-B0iJZS147..RHD199308-199708

SHADOW GRAY,TRIM1#

main63310-30550-G0iJZS147..RHD199308-199708

LI.SPRUCE,TRIM6#

main63310-30560-A0iJZS147..RHD199308-199708

W(MOON ROOF),IVORY,TRIM0#

main63310-30560-B0iJZS147..RHD199308-199708

W(MOON ROOF),SHADOW GRAY,TRIM1#

main63310-30560-G0iJZS147..RHD199308-199708

W(MOON ROOF),LI.SPRUCE,TRIM6#

main63310-30620-A0iJZS147..LHD199303-199708

IVORY,TRIM0#

main63310-30620-B0iJZS147..LHD199303-199708

SHADOW GRAY,TRIM1#

main63310-30620-G0iJZS147..LHD199303-199708

LI.SPRUCE,TRIM6#

main63310-30630-A0iJZS147..LHD199308-199708

W(MOON ROOF),IVORY,TRIM0#

main63310-30630-B0iJZS147199303-199308

W(MOON ROOF),SHADOW GRAY,TRIM1#

main63310-30630-G0iJZS147199303-199308

W(MOON ROOF),LI.SPRUCE,TRIM6#

63310DCLIP, ROOF HEADLINING

main90467-10153×4iJZS147199303-199411

main90467-10177×4iJZS147199411-199708

63328CKNOB, SUNSHADE TRIM

main63328-22010-A0iJZS147199303-199401

IVORY,TRIM0#

main63328-22010-B2iJZS147199303-199401

LI.GRAY,TRIM1#

main63328-22010-G0iJZS147199303-199401

LI.SPRUCE,TRIM6#

main63328-33010-A0iJZS147199401-199708

IVORY,TRIM0#

main63328-33010-B5iJZS147199401-199708

LT.GRAY,TRIM1#

main63328-33010-G0iJZS147199401-199708

SPRUCE,TRIM6#

63341PAD, ROOF SILENCER, NO.1

main63341-30200iJZS147199303-199708

63342PAD, ROOF SILENCER, NO.2

main63342-30130iJZS147199303-199708

63343PAD, ROOF SILENCER, NO.3

main63342-30130iJZS147199303-199708

63344PAD, ROOF SILENCER, NO.4

main63343-30170iJZS147199303-199708

9016840012

main90168-40012

9090467015

main90904-67015

10 parts on this diagram · 1 diagram in section
