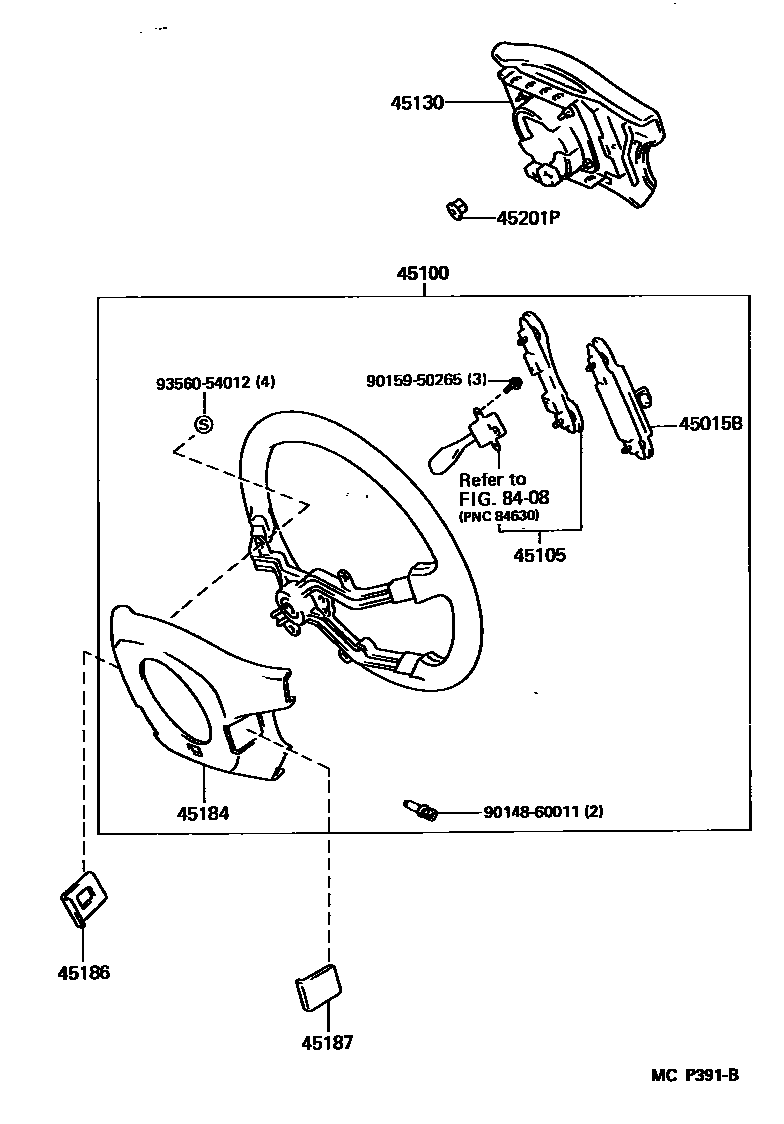

STEERING WHEEL
45015BPLATE SUB-ASSY, HORN BUTTON CONTACT, NO.2
45100WHEEL ASSY, STEERING
4-SPOKE,LEATHER,GRAY,TRIM1#
4-SPOKE,LEATHER,SABLE,TRIM0#
4-SPOKE,LEATHER,SPRUCEGRAY,TRIM6#
4-SPOKE,LEATHER,SHADOW GRAY,TRIM1#
4-SPOKE,LEATHER,SABLE,TRIM0#
4-SPOKE,LEATHER,DK.SPRUCE GRAY,TRIM6#
4-SPOKE,LEATHER,SHADOW GRAY,TRIM1#
4-SPOKE,LEATHER,SABLE,TRIM0#
4-SPOKE,LEATHER,DK.SPRUCE GRAY,TRIM6#
45105PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1
45130BUTTON ASSY, HORN
GRAY,TRIM1#
SABLE,TRIM0#
SPRUCE GRAY,TRIM6#
SHADOW GRAY,TRIM1#
SABLE,TRIM0#
DK.SPRUCE GRAY,TRIM6#
SHADOW GRAY,TRIM1#
SABLE,TRIM0#
SPRUCE GRAY,TRIM6#
45184COVER, STEERING WHEEL BOSS, LOWER
SHADOW GRAY,TRIM1#
SABLE,TRIM0#
SPRUCE GRAY,TRIM6#
SHADOW GRAY,TRIM1#
SABLE,TRIM0#
DK.SPRUCE GRAY,TRIM6#
45186COVER, STEERING WHEEL, LOWER NO.2
SHADOW GRAY,TRIM1#
SABLE,TRIM0#
SPRUCE GRAY,TRIM6#
45187COVER, STEERING WHEEL, LOWER NO.3
SHADOW GRAY,TRIM1#
SABLE,TRIM0#
SPRUCE GRAY,TRIM6#
8408CRUISE CONTROL (AUTO DRIVE)
9014860011
main90148-60011
9015950265
main90159-50265
9356054012
main93560-54012
12 parts on this diagram · 1 diagram in section
