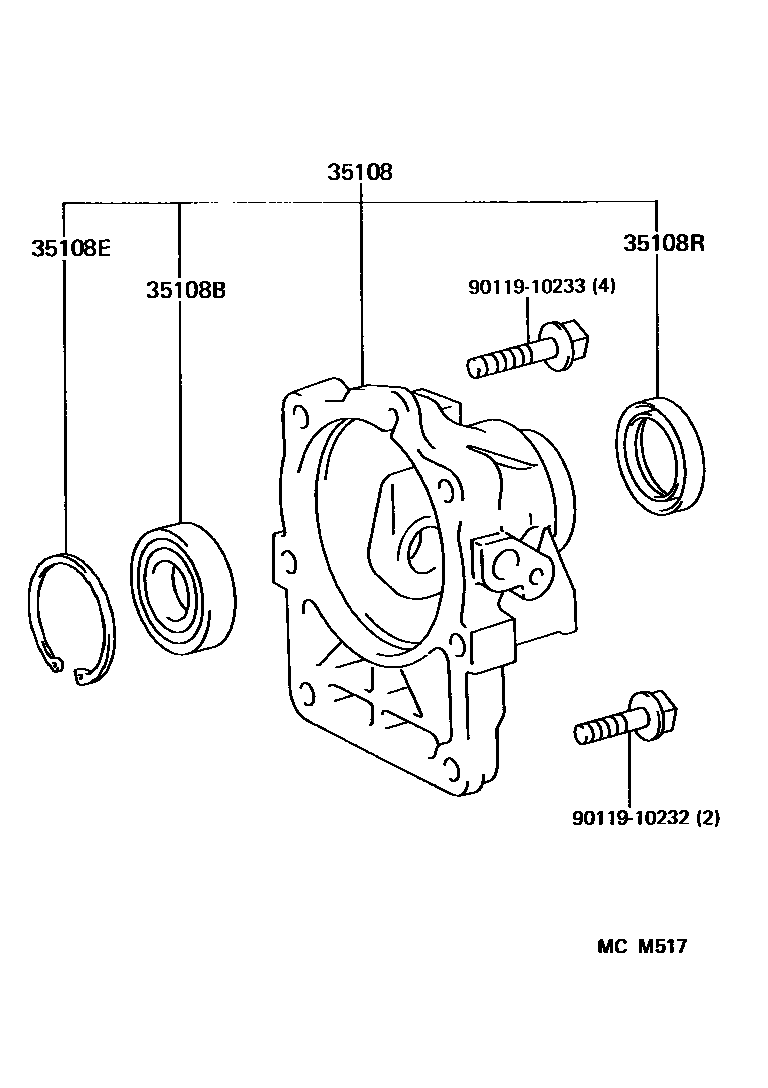

EXTENSION HOUSING (ATM)

35108HOUSING SUB-ASSY, EXTENSION (ATM)

main35108-30170iJZS147199508-199708

main35108-50010iJZS147199303-199508

35108BBEARING (FOR AUTOMATIC TRANSMISSION EXTENSION HOUSING)

main90363-30063iJZS147199303-199708

35108ERING, HOLE SNAP (FOR ATM EXTENSION HOUSING)

main90521-66006iJZS147199303-199708

35108RSEAL, OIL (FOR AUTOMATIC TRANSMISSION EXTENSION HOUSING)

main90311-42024iJZS147199303-199708

9011910232

main90119-10232

9011910233

main90119-10233

6 parts on this diagram · 1 diagram in section
