ENGINE OVERHAUL GASKET KIT

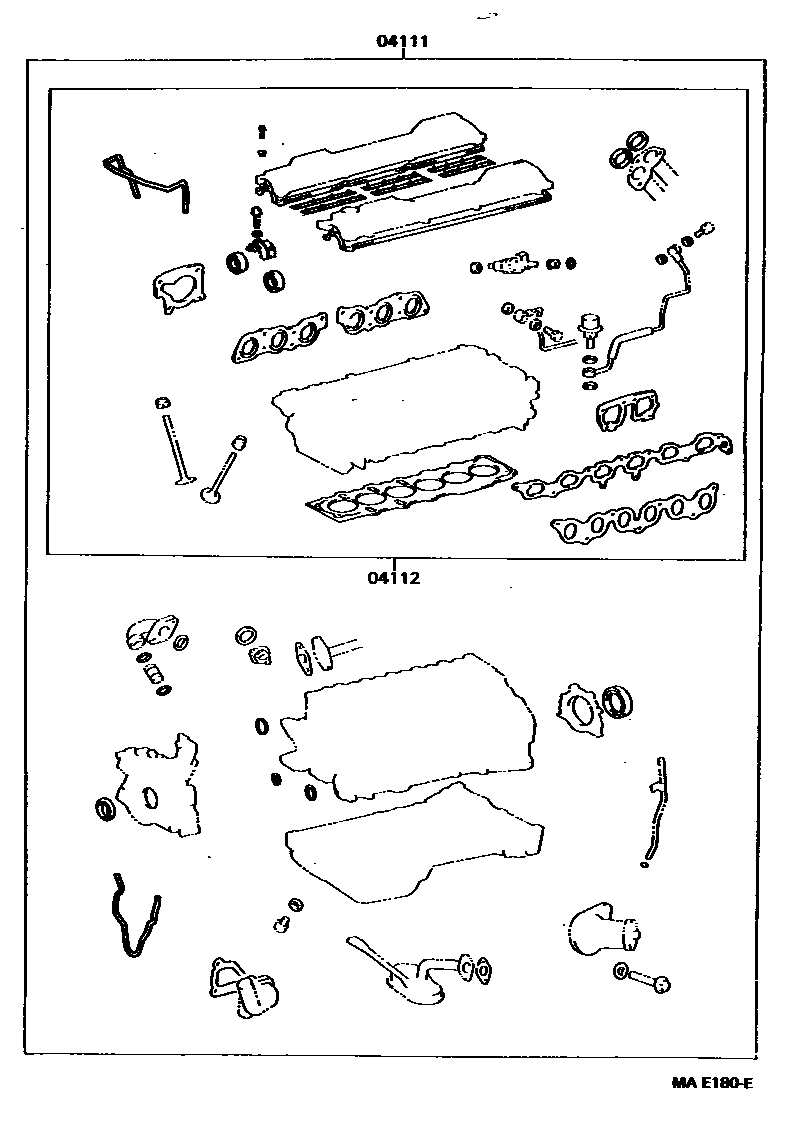

Parts diagram

04111GASKET KIT, ENGINE OVERHAUL

main04111-46061i199303-199304

main04111-46063i199304-199306

main04111-46064i199306-199608

main04111-46065i199608-199708

04112GASKET KIT, ENGINE VALVE GRIND

main04112-46061i199303-199304

main04112-46063i199304-199306

main04112-46064i199306-199608

main04112-46065i199608-199708

2 parts on this diagram · 1 diagram in section
