SHORT BLOCK ASSEMBLY

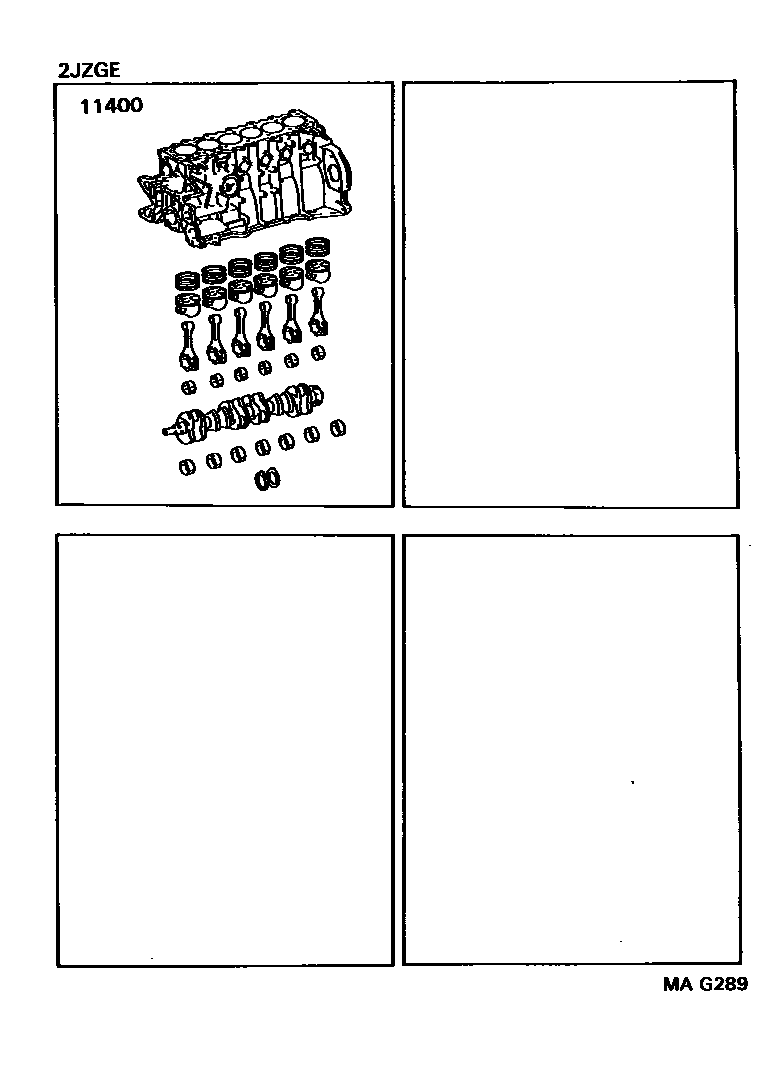

Parts diagram

11400BLOCK ASSY, SHORT

main11400-49065i199308-199505

main11400-49066i199505-199508

main11400-49075i199303-199505

main11400-49076i199505-199508

main11400-49077i199604-199708

1 parts on this diagram · 1 diagram in section
