STANDARD TOOL

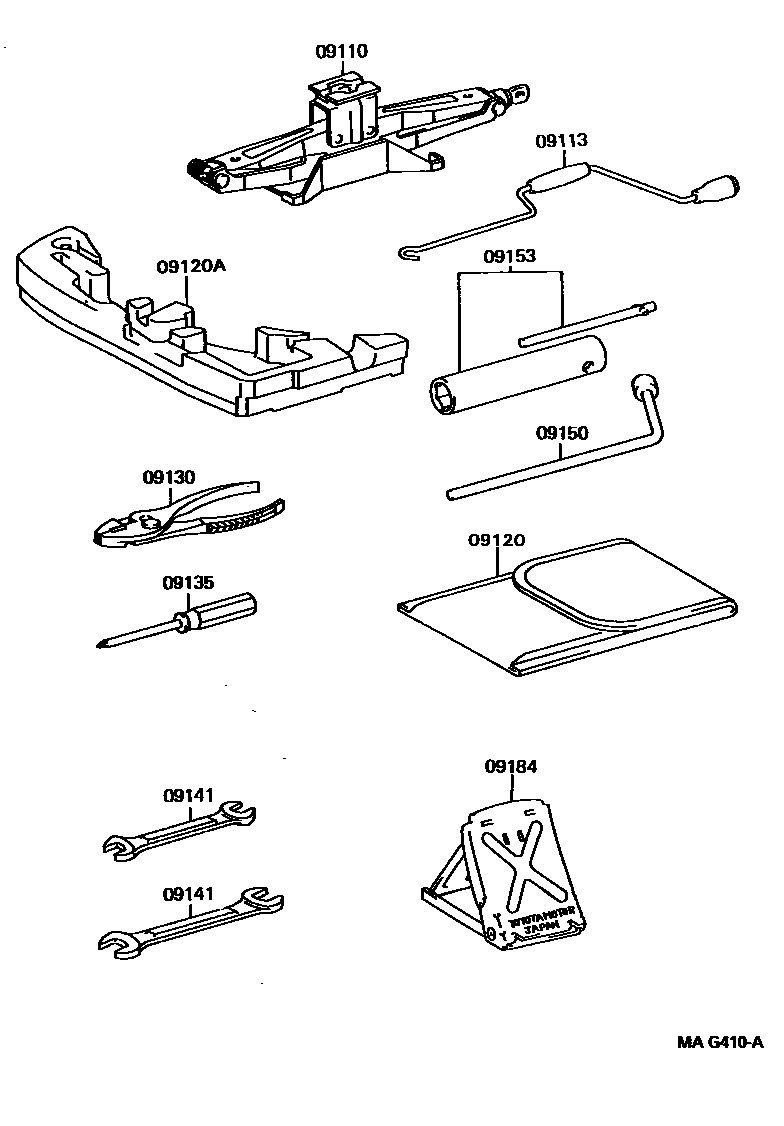

Parts diagram

09110JACK ASSY

main09111-30110i199303-199508

main09111-30120i199508-199708

09113HANDLE, JACK

main09113-22020i199508-199708

main09113-50010i199303-199508

09120BAG, TOOL

main09120-24010i199303-199708

09120ACASE, TOOL

main09120-30040i199303-199508

main09120-30080i199508-199708

09130PLIERS

main09130-50010i199303-199408

main09130-50030i199408-199708

09135DRIVER, SCREW

main09135-50020i199303-199408

main09135-50040i199408-199708

09141SPANNER

main09141-50010i199303-199408

8 X 10

main09141-50020i199303-199408

12 X 14

main09141-50050i199408-199708

8 X 10

main09141-50060i199408-199708

12 X 14

09150WRENCH, HUB NUT BOX

main09150-50010i199303-199708

09153WRENCH, REAR COMBINATION LAMP

main09153-74030i199308-199708

09184STOPPER, WHEEL

main09184-00010i199303-199708

10 parts on this diagram · 1 diagram in section
