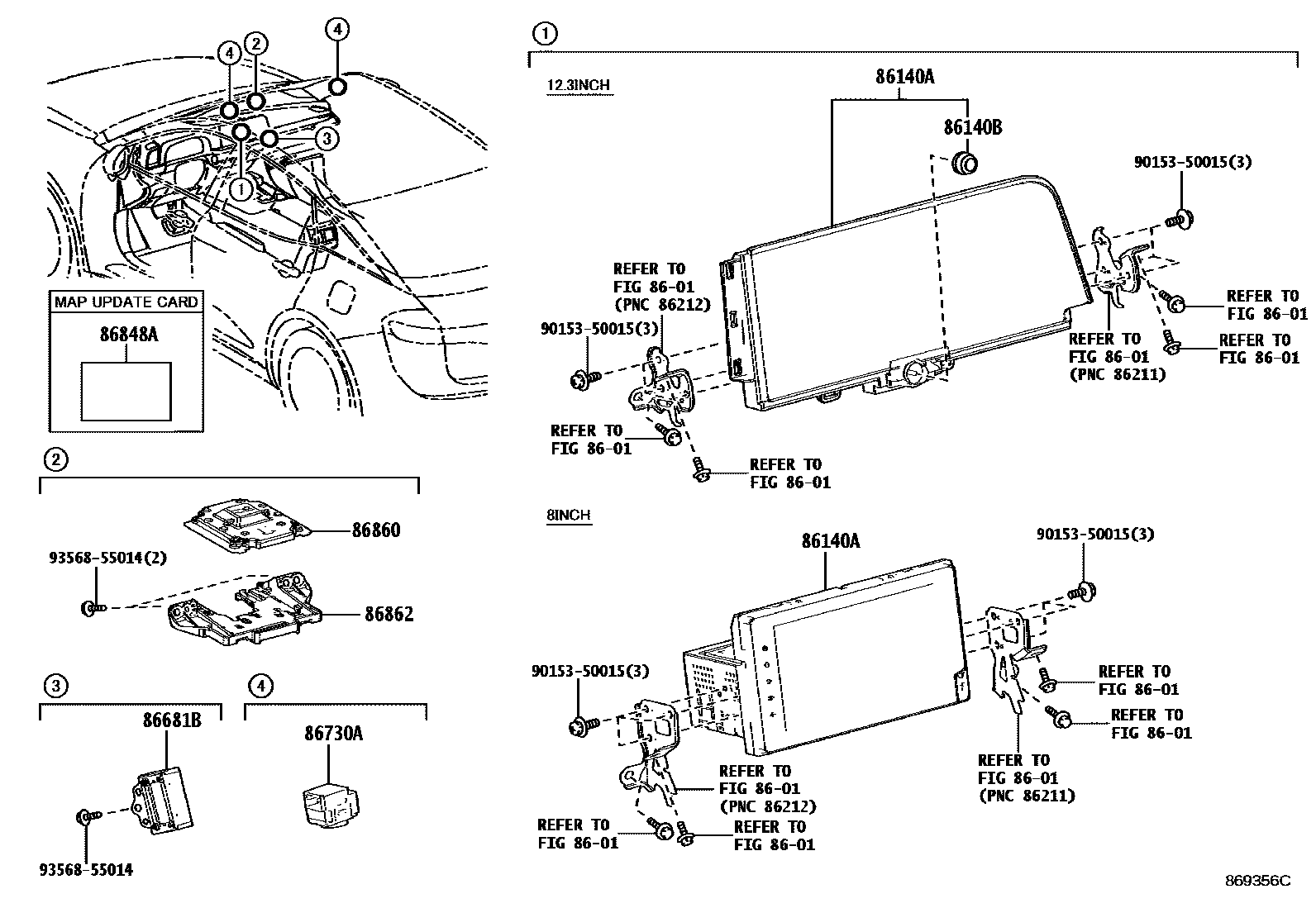

NAVIGATION & FRONT MONITOR DISPLAY

0001 1 0002 1

8601

86140ARECEIVER ASSY, RADIO & DISPLAY

main86100-30371iAZSH30,TZSH35..(A,G)..CHI202301-202310

DESAY

main86100-30372iAZSH30,TZSH35..(A,G)..CHI202310-202404

DESAY

main86100-30500iTZSH35..RHD202301-202404

PANASONIC

main86100-30520iAZSH30..RHD202301-202404

PANASONIC

main86100-30550iAZSH3#..LHD..GEN202301-202404

PANASONIC

main86100-30A20iAZSH30,TZSH35..(A,G)..CHI202404

DESAY

main86100-30A90iAZSH3#..LHD..GEN202404-202504

PANASONIC

main86100-30B00iAZSH30..RHD202404-202503

PANASONIC

main86100-30B20iTZSH35..RHD202404

PANASONIC

main86140-30030iAZSH30..M202301-202309

DESAY

main86140-30031iAZSH30..M202309-202404

DESAY

main86100-30390supersedes 86140-30050iAZSH30..GCC202302-202404

PANASONIC,KUWAIT SPEC

main86100-30410iAZSH30..LHD..GEN202301-202404

DENSO TEN,TAIWAN SPEC

main86100-30430supersedes 86100-30440iTZSH35..LHD..GEN202302-202404

PANASONIC,ARGENTINA SPEC

main86100-30450supersedes 86100-30460iAZSH35..RHD202301-202404

PANASONIC,NAMIBIA SPEC

main86100-30480supersedes 86140-30050iAZSH30..GCC202301-202404

PANASONIC,CENTRAL ASIA SPEC

main86100-30530supersedes 86100-30440iTZSH35..LHD..GEN202301-202404

DENSO TEN,TAIWAN SPEC

main86100-30540iAZSH35..LHD202301-202404

PANASONIC,DJIBOUTI SPEC

main86100-30A70supersedes 86140-30201iAZSH30..GCC202404-202504

PANASONIC,KUWAIT SPEC&MID LUX PACKAGE

main86100-30A80supersedes 86140-30201iAZSH30..GCC202404

PANASONIC,CENTRAL ASIA SPEC

main86100-30B30supersedes 86100-30B10iTZSH35..LHD..GEN202404

PANASONIC,ARGENTINA SPEC

main86100-30B40iAZSH30..LHD..GEN202404-202504

DENSO TEN,TAIWAN SPEC

main86100-30B50supersedes 86100-30B10iTZSH35..LHD..GEN202404

DENSO TEN,TAIWAN SPEC

main86100-30B60iAZSH35..LHD202404-202504

PANASONIC,DJIBOUTI SPEC

main86100-30B70supersedes 86100-30B80iAZSH35..RHD202404

PANASONIC,NAMIBIA SPEC

main86140-30040supersedes 86140-30050iAZSH30..GCC202301-202404

DESAY,IRAQ SPEC&DECONTENT PACKAGE

main86140-30211supersedes 86140-30201iAZSH30..GCC202404

DENSO TEN,LEBANON SPEC&DECONTENT PACKAGE

86140BKNOB, RADIO & DISPLAY RECEIVER SWITCH

main90010-24207iAZSH3#,TZSH35..GEN202301-202404

main90010-23066iAZSH30,TZSH35..LHD..GEN202301-202404

TAIWAN SPEC

86681BDIVIDER, ANTENNA

main86681-11010iAZSH30..GCC202301-202404

BAHRAIN SPEC&REMOTE SERVICE PACKAGE-WITH

86730AMICROPHONE ASSY, TELEPHONE

main86730-78010×2supersedes 86730-78010iAZSH30..GCC202301

MID LUX PACKAGE&AUDIO-12.3 DISPLAY & JBL & 11SPEAKER & T2

86848ACARD, SERIAL NUMBER MAP UPDATE

main86848-78070iTZSH35..GEN202410

main86848-78090iAZSH35..RHD202410

main86848-78040iAZSH30..LHD..GEN202410-202504

TAIWAN SPEC

main86848-78060iTZSH35..LHD..GEN202410

ARGENTINA SPEC

86860ANTENNA ASSY, NAVIGATION

main86880-42030iAZSH30..M202301-202404

BAHRAIN SPEC&REMOTE SERVICE PACKAGE-WITH

main86880-42010iAZSH30..GCC202301-202404

BAHRAIN SPEC&REMOTE SERVICE PACKAGE-WITH

86862BRACKET, NAVIGATION ANTENNA

main86862-42010iAZSH30..M202301-202404

BAHRAIN SPEC&REMOTE SERVICE PACKAGE-WITH

9015350015

main90153-50015

9356855014

main93568-55014

10 parts on this diagram · 2 diagrams in section
