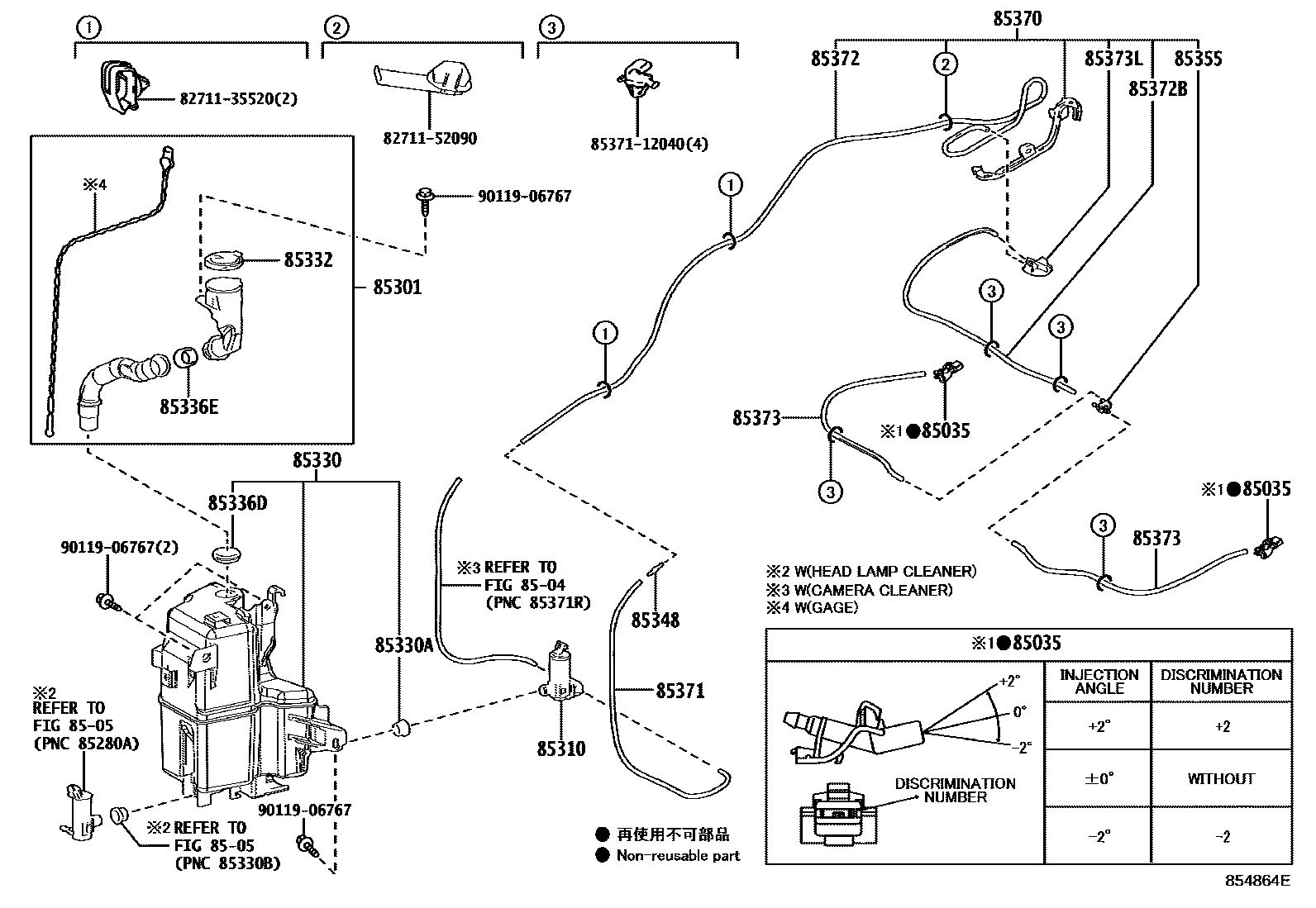

WINDSHIELD WASHER

85035NOZZLE SUB-ASSY, WASHER

main85381-47090iAZSH3#,TZSH35202301-202302

ANGLE 0

main85381-47100iAZSH3#,TZSH35202301-202302

ANGLE -2

main85381-47110iAZSH3#,TZSH35202301-202302

ANGLE +2

main85381-78030iAZSH30..RHD202302-202503

ANGLE 0

main85381-78040iAZSH35,TZSH35;AZSH30..LHD..(B,G)202302-202503

ANGLE -2

main85381-78050iAZSH30..RHD202302-202503

ANGLE +2

8504REAR WASHER

→ Go to FIG 85-04

8505HEADLAMP CLEANER

→ Go to FIG 85-05

85301INLET SUB-ASSY, WASHER

main85301-30100iAZSH30,TZSH35..(A,G)..CHI202301

main85301-30130iAZSH30..RHD202301-202503

main85301-30140iAZSH30..GCC202301-202404

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-11040iAZSH30..GCC202301

MID LUX PACKAGE

main85330-11040iAZSH35..LHD202301-202504

main85330-33070iTZSH35..RHD202301

DECONTENT PACKAGE

main85330-33070iAZSH35..RHD202301

ST.KITTS SPEC

main85330-33070iAZSH35..RHD202301

GUYANA SPEC

main85330-33070iAZSH35..RHD202301

NAMIBIA SPEC

main85330-33070iAZSH35..RHD202301

MAURITIUS SPEC

main85330-33070iAZSH35..RHD202301

CENTRAL ASIA SPEC

main85330-33070iAZSH35..RHD202301

CENTRAL ASIA SPEC&MID LUX PACKAGE

main85330-33070iAZSH30..M202301-202404

85330JAR ASSY, WINDSHIELD WASHER

main85315-30530iAZSH30..M202301-202503

main85355-30130iAZSH30,TZSH35..(A,G)..CHI202301

85330ABUSH, WINDSHIELD WASHER JAR

main90099-32089iAZSH30..M202301-202503

85332CAP, WINDSHIELD WASHER JAR

main85316-24130iAZSH30..M202301-202503

85336DPACKING, WINDSHIELD WASHER JAR

main85336-30160iAZSH30..M202301-202503

85336EPACKING, WINDSHIELD WASHER INLET HOSE

main85336-42320iAZSH30..M202301-202503

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85349-89122iAZSH30..M202301-202503

85355VALVE, WINDSHIELD WASHER HOSE

main85321-28020iAZSH30..M202301-202503

85370HOSE ASSY, WINDSHIELD WASHER

main85370-30470iAZSH35,TZSH35;AZSH30..LHD..(B,G)202301-202503

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90099-33080iAZSH30..M202301-202503

L=1450(*H,L=610)

main90099-33080iAZSH30..RHD202301-202503

L=1450(*H,L=610),ST.KITTS SPEC

main90099-33080iAZSH30..RHD202301-202503

L=1450(*H,L=610),GUYANA SPEC

main90099-33080iAZSH35,TZSH35;AZSH30..LHD..(B,G)202301

L=1450(*H,L=610),NAMIBIA SPEC

main90099-33080iAZSH35,TZSH35;AZSH30..LHD..(B,G)202301

L=1450(*H,L=610),MAURITIUS SPEC

main90099-33080iAZSH35,TZSH35;AZSH30..LHD..(B,G)202301

L=1450(*H,L=610),CENTRAL ASIA SPEC

main90099-33080iAZSH35,TZSH35;AZSH30..LHD..(B,G)202301

L=1450(*H,L=610),CENTRAL ASIA SPEC&MID LUX PACKAGE

main90099-33080iAZSH35,TZSH35;AZSH30..LHD..(B,G)202301

L=1450(*H,L=610),MID LUX PACKAGE

main90099-33080iAZSH35,TZSH35;AZSH30..LHD..(B,G)202301

L=1450(*H,L=610),DECONTENT PACKAGE

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90099-33803iAZSH30..M202301-202503

L=1500

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90099-33080iAZSH30..M202301-202503

L=1450(*H,L=780)

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90099-33080iAZSH30..M202301-202503

L=1450(*H,L=510)

85373LGROMMET, WASHER

main85373-33030iAZSH30..M202301-202503

8271135520WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-35520

8271152090WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-52090

8537112040HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main85371-12040

9011906767

main90119-06767

22 parts on this diagram · 1 diagram in section
