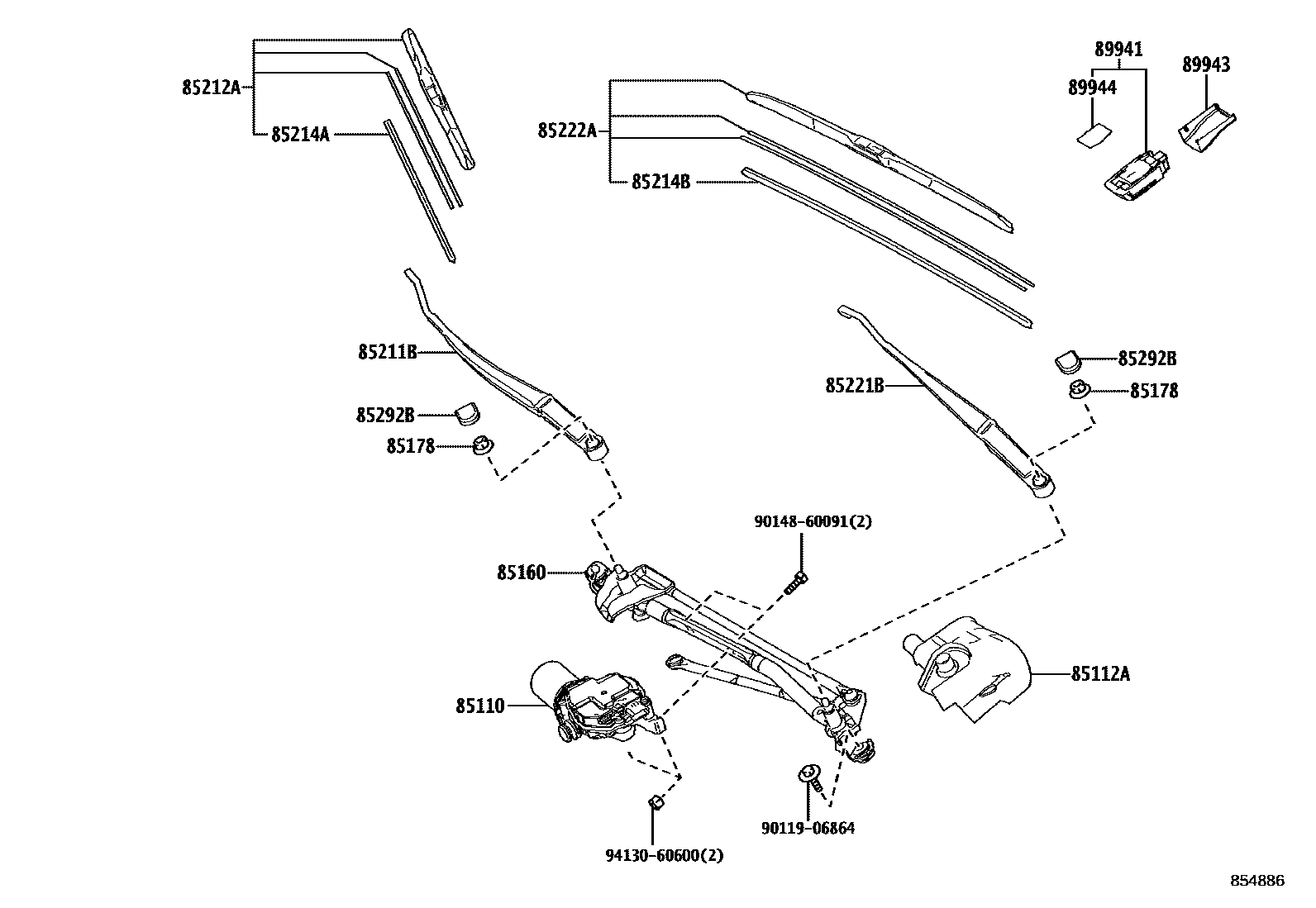

WINDSHIELD WIPER

0001 1 0002 1

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-30760iAZSH30..RHD202301-202503

main85110-30770iAZSH35,TZSH35..LHD;AZSH30..LHD..(B,G)202301

85112ACOVER, WINDSHIELD WIPER SHAFT, NO.1

main85112-30280iAZSH35,TZSH35..RHD202301

main85112-30290iAZSH35,TZSH35..LHD;AZSH30..LHD..(B,G)202301

85160LINK ASSY, WINDSHIELD WIPER

main85150-30800iAZSH30..RHD202301-202503

main85150-30820iAZSH35,TZSH35..LHD;AZSH30..LHD..(B,G)202301

85178NUT (FOR FRONT WIPER ARM SETTING)

main90182-10006×2iAZSH30..RHD202301-202503

85211BARM, FRONT WIPER, RH

main85211-30850iAZSH30..RHD202301-202503

main85211-30870iAZSH30..M202301-202404

85212ABLADE, FR WIPER, RH

main85212-30430iAZSH30..RHD202301-202503

main85212-33260iAZSH30..M202301-202404

85214ARUBBER, WIPER, RH

main85214-33180iAZSH30..M202301-202404

main85214-52110iAZSH35,TZSH35..RHD202301

85214BRUBBER, WIPER, LH

main85214-33180iAZSH35,TZSH35..RHD202301

main85214-52110iAZSH35,TZSH35..LHD;AZSH30..LHD..(B,G)202301

85221BARM, FRONT WIPER, LH

main85221-30750iAZSH30..M202301-202404

main85221-30760iAZSH35,TZSH35..RHD202301

85222ABLADE, FR WIPER, LH

main85222-30610iAZSH30..M202301-202404

main85222-33260iAZSH35,TZSH35..RHD202301

85292BCAP, FRONT WIPER ARM HEAD

main85292-13010×2iAZSH30..RHD202301-202503

89941SENSOR, RAIN

main89941-78020iAZSH35..RHD;AZSH30,TZSH35..A,G202301

MID LUX PACKAGE

89943COVER, RAIN SENSOR

main89943-12040iAZSH35..RHD;AZSH30,TZSH35..A,G202301

MID LUX PACKAGE

89944TAPE, RAIN SENSOR

main89944-42020iAZSH35..RHD;AZSH30,TZSH35..A,G202301

MID LUX PACKAGE

9011906864

main90119-06864

9014860091

main90148-60091

9413060600

main94130-60600

17 parts on this diagram · 2 diagrams in section
