WIRELESS DOOR LOCK

8401

8435

89000COMPUTER ASSY, DIGITAL KEY

main89000-30020iTZSH35..CHI202301-202403

ADVANCED PARK-WITH & WITH(REMOTE)

main89000-30110iTZSH35..CHI202404

ADVANCED PARK-WITH & WITH(REMOTE)

890D0RECEIVER ASSY, BLE DOOR DIGITAL KEY

main890D0-78020×2iTZSH35..CHI202301

ADVANCED PARK-WITH & WITH(REMOTE)

890G0RECEIVER ASSY, BLE INDOOR DIGITAL KEY

main890G0-42020iTZSH35..CHI202301

SMART KEY-WITH(DIGITAL KEY),FRONT

main890G0-76020iTZSH35..CHI202301

SMART KEY-WITH(DIGITAL KEY),REAR

89746CHARNESS, ELECTRICAL KEY WIRE, NO.1

main89746-30220iTZSH35..CHI202301

ADVANCED PARK-WITH & WITH(REMOTE)

89746DHARNESS, ELECTRICAL KEY WIRE, NO.2

main89746-30160iTZSH35..CHI202301

ADVANCED PARK-WITH & WITH(REMOTE)

89747BUZZER, WIRELESS DOOR LOCK

main89747-30040iAZSH30..RHD202301-202503

8974FCASE, W/O DIGITAL KEY

main8974F-78010×2iAZSH30..M202301-202404

89990ACOMPUTER ASSY, SMART KEY

main899H0-30070iAZSH35..RHD;AZSH30,TZSH35..A,G202301-202404

DJIBOUTI SPEC

main899H0-30080iAZSH30..B,M;AZSH35..LHD202301-202404

main899H0-30180iAZSH30..RHD202404-202503

89997ANTENNA, ELECTRICAL KEY

main89997-30100iAZSH30..M202301-202404

89997AANTENNA, ELECTRICAL KEY, NO.2

main89997-30100iTZSH35..LHD..GEN202301

TAIWAN SPEC

899A0ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.1

main899A0-42030iAZSH30..M202301-202404

899A0AANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.2

main899A0-12130iAZSH30..M202301-202404

899A0BANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.3

main899A0-12130iAZSH30..M202301-202404

8271112B30WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12B30

8271548P70BRACKET,WIRING HARNESS CLAMP

main82715-48P70

9011906A07

main90119-06A07

9017906274

main90179-06274

9162160614

main91621-60614

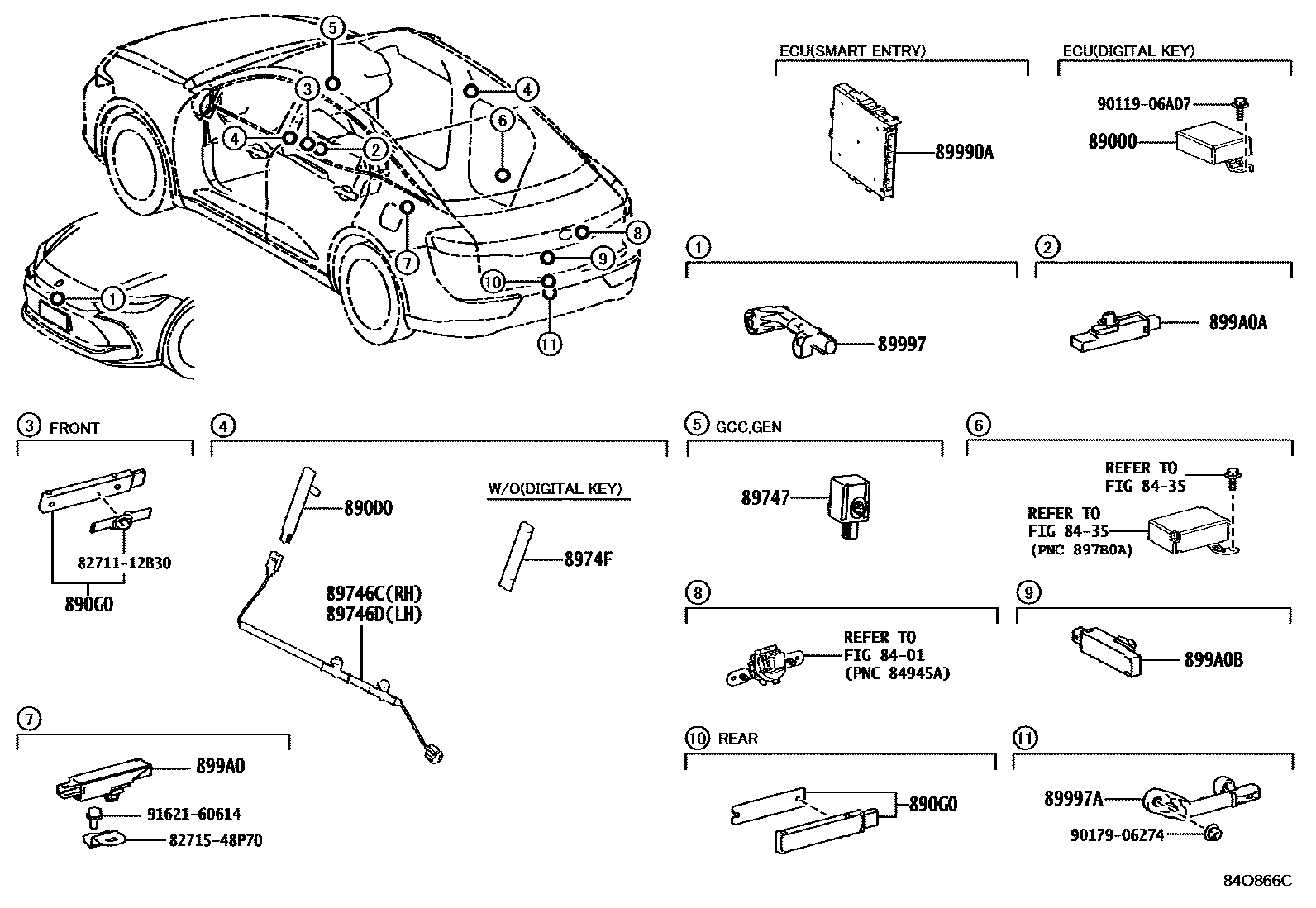

20 parts on this diagram · 1 diagram in section
