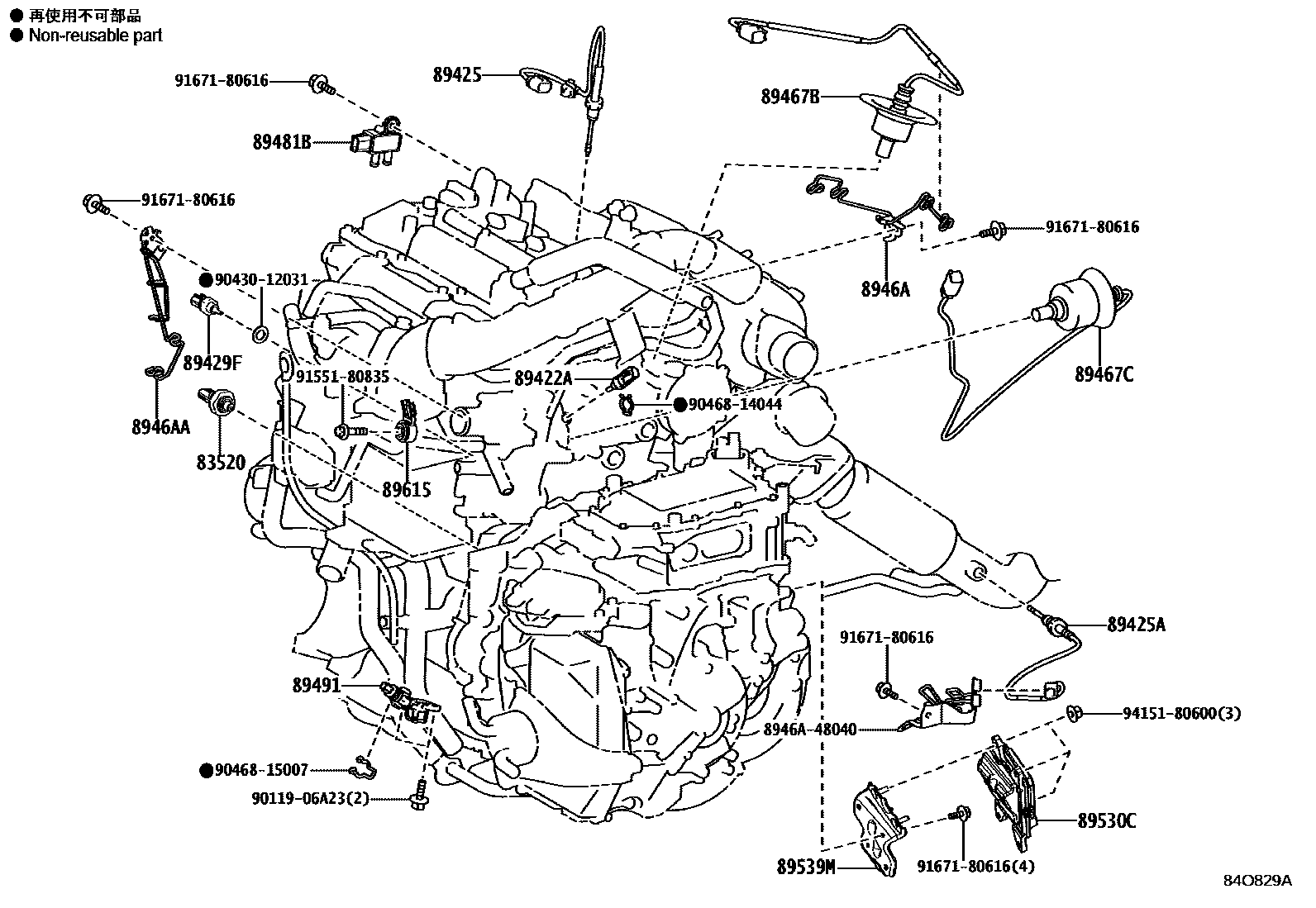

SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE & TRANSMISSION 0003 1ENGINE ROOM RELAY BLOCK 0004 1ENGINE ROOM RELAY BLOCK 0005 1COWL 0006 1COWL 0007 1INSTRUMENT PANEL 0008 1INSTRUMENT PANEL 0009 1CONSOLE BOX 0010 1CONSOLE BOX 0011 1STEERING 0012 1STEERING 0013 1SEAT 0014 1SEAT 0015 1DOOR & ROOF 0016 1FLOOR & LUGGAGE

83520GAGE ASSY,OIL PRESSURE SENDER

main83520-60070iTZSH35202301

89422ASENSOR, WATER TEMPERATURE

main89422-33040iAZSH30..M202301-202503

89425SENSOR, EXHAUST GAS TEMPERATURE

main89425-48010iTZSH35..CHI202301

main89425-48030iAZSH30..M202301-202404

89425ASENSOR, EXHAUST GAS TEMPERATURE, NO.2

main89425-48040iAZSH30..M202301-202404

main89425-48050iTZSH35..CHI202301

89429FSENSOR, TEMPERATURE

main89429-12010iTZSH35202301

89467BSENSOR, AIR FUEL RATIO

main89467-30130iAZSH30..G202301-202404

main89467-33310iAZSH30..RHD202301-202503

main89467-78040iTZSH35202301

89467CSENSOR, AIR FUEL RATIO, NO.2

main89467-42170iAZSH35;AZSH30..LHD..B202301-202503

main89467-48360iAZSH30..G202301-202404

main89467-78050iTZSH35202301

8946ABRACKET, EXHAUST SENSOR CLAMP

main8946A-78020iTZSH35202301

8946AABRACKET, EXHAUST SENSOR CLAMP, NO.2

main8946A-78030iTZSH35202301

89481BSENSOR, DIFFERENTIAL PRESSURE

main89481-48010iTZSH35..CHI202301

main89481-K0010iAZSH30..M202301-202404

89491SENSOR, ENGINE OIL LEVEL

main89491-33052iTZSH35202301

89530CCOMPUTER ASSY, TRANSMISSION CONTROL

main89530-30880iTZSH35..CHI202301-202305

sub89530-30881

main89530-30881iTZSH35..CHI202306-202404

sub89530-30882

main89530-30890iTZSH35..GCC,GEN202301-202404

main89530-30A00iTZSH35..CHI202404

main89530-30A10iTZSH35..GCC,GEN202404

89539MBRACKET, TRANSMISSION CONTROL COMPUTER, NO.1

main89539-48120iTZSH35202301

89615SENSOR, KNOCK CONTROL

main89615-20090iAZSH30..RHD202301-202503

main89615-78010iTZSH35202301

8946A48040BRACKET, EXHAUST SENSOR CLAMP

main8946A-48040

9011906A23

main90119-06A23

9043012031

main90430-12031

9046814044

main90468-14044

9046815007

main90468-15007

9155180835

main91551-80835

9167180616

main91671-80616

9415180600

main94151-80600

22 parts on this diagram · 16 diagrams in section
