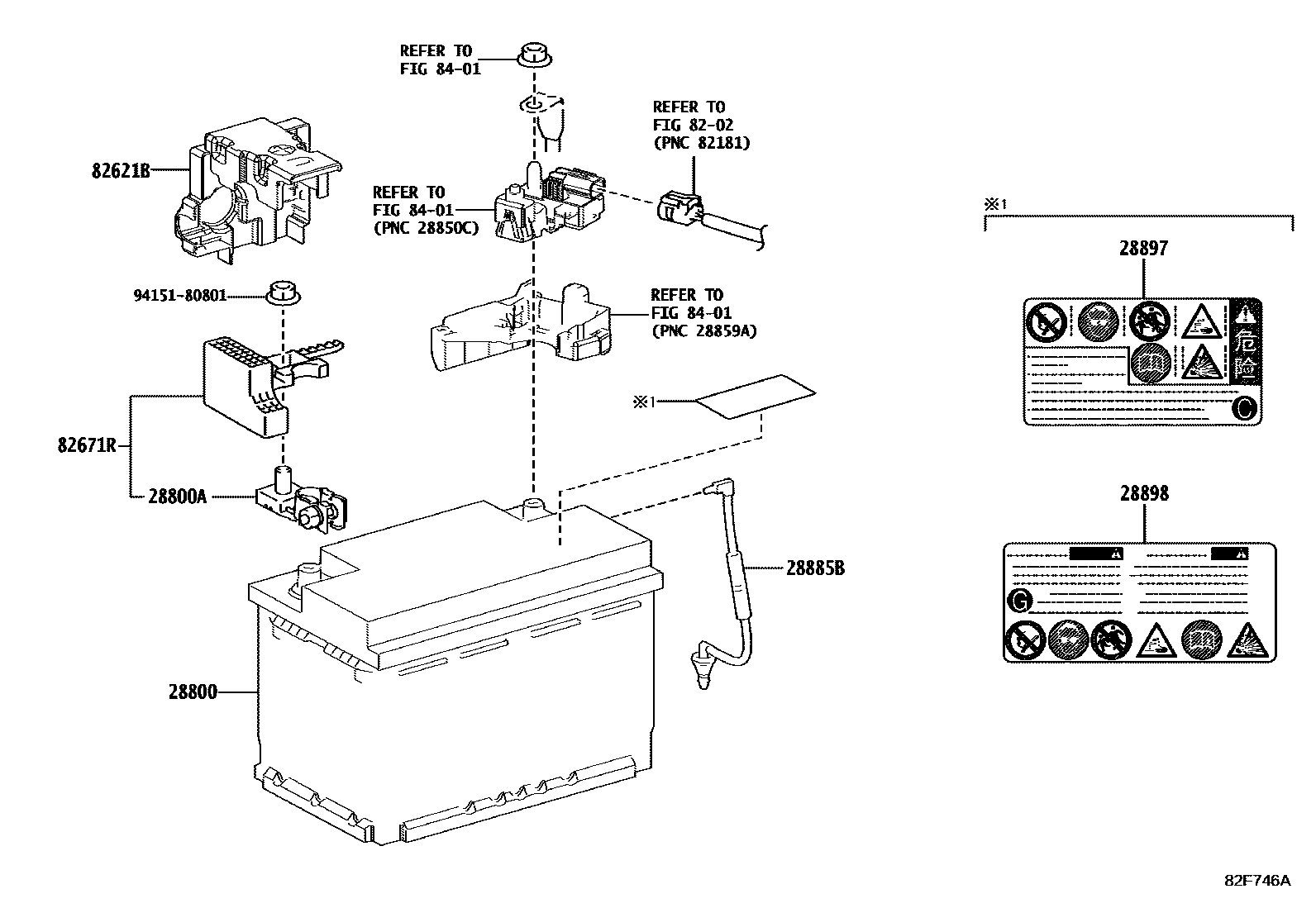

BATTERY & BATTERY CABLE

0001 112V BATTERY 0002 1HV BATTERY 0003 1HV BATTERY 0004 1HV BATTERY

28800BATTERY

main28800-25031iA25AFXS,T24AFTS..AZSH3#,TZSH35202301-202302

LN2

main28800-25032iA25AFXS,T24AFTS..AZSH3#,TZSH35202303-202403

LN2

main28800-25033iA25AFXS..AZSH30..RHD202404-202503

LN2

28800ATERMINAL, BATTERY POSITIVE

main90982-05053iA25AFXS..AZSH30..M202301-202404

28885BHOSE, BATTERY

main28885-25060iA25AFXS..AZSH30..M202301-202404

28897PLATE, BATTERY CAUTION

main28897-38060iA25AFXS..AZSH30..M202301-202404

28898PLATE, BATTERY

main28897-36040iA25AFXS,T24AFTS..AZSH30,TZSH35..GCC202301

8202

82621BCOVER, FUSIBLE LINK

main82621-30030iAZSH30..M202301-202404

main82621-30040iTZSH35202301

82671RSTOPPER, BATTERY TERMINAL

main82670-30380iAZSH30..M202301-202404

8401

9415180801

main94151-80801

10 parts on this diagram · 4 diagrams in section
