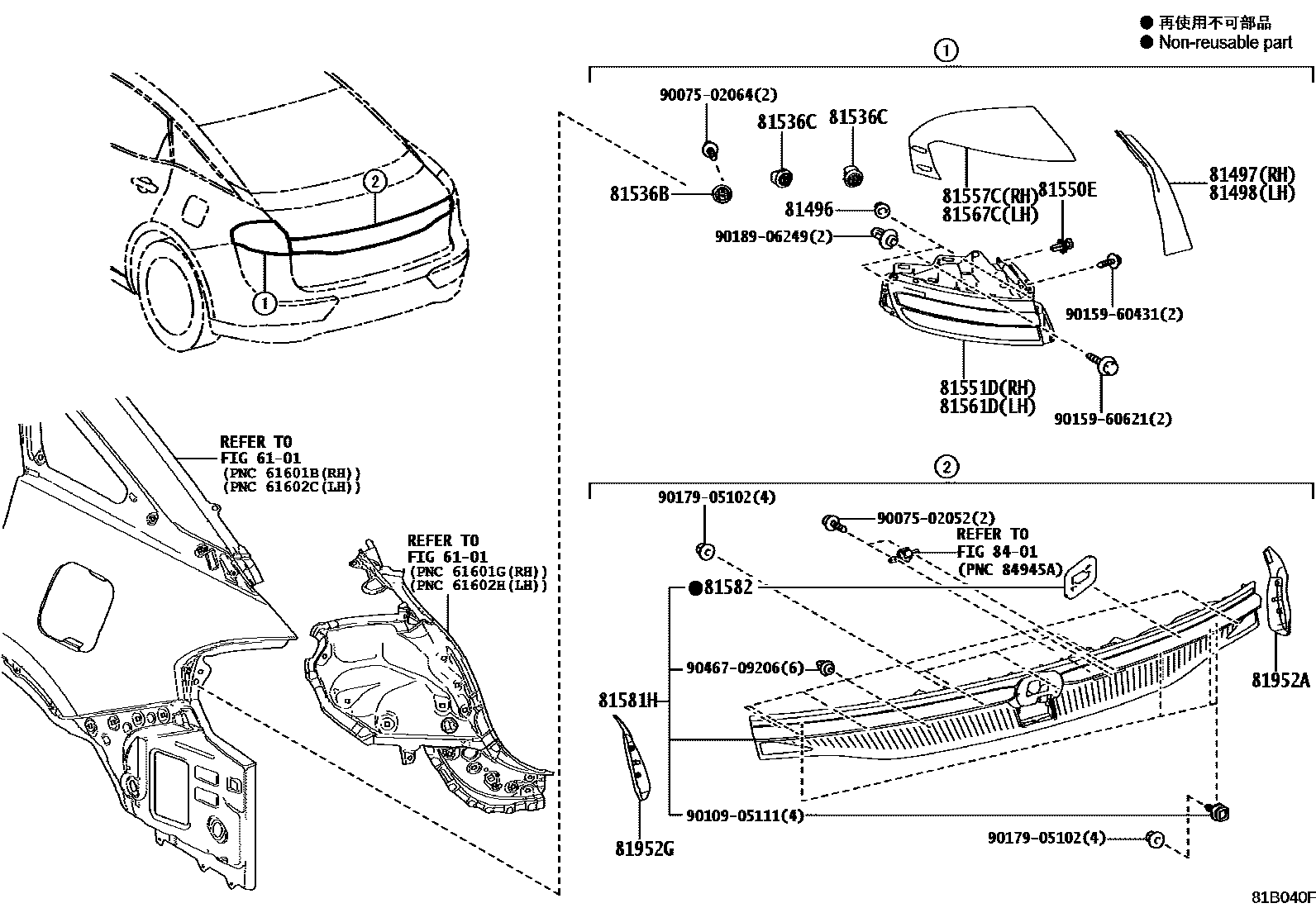

REAR COMBINATION LAMP

6101

81496GUIDE, REAR COMBINATION LAMP

main76817-26040×2iAZSH30..M202309-202404

COLOR : BLACK

main81496-52020×2iAZSH35,TZSH35;AZSH30..LHD..(B,G)202309

COLOR : WHITE

81497COVER, REAR COMBINATION LAMP, RH

main81497-30080iAZSH30..M202301-202404

81498COVER, REAR COMBINATION LAMP, LH

main81498-30080iAZSH30..RHD202301-202503

81536BLED, REAR TURN SIGNAL LAMP

main81536-12D20×2iAZSH30..M202301-202404

81536CLED, TAIL & STOP LAMP

main81965-40010×4iAZSH30..M202301-202404

81550ECLIP(FOR REAR COMBINATION LAMP)

main90467-05170×2iAZSH30..M202301-202404

81551DLENS & BODY, REAR COMBINATION LAMP, RH

main81551-30E40iAZSH30..RHD202301-202503

81557CCOVER, REAR COMBINATION LAMP, RH

main81952-30030-A0iAZSH30..RHD202301-202503

PRECIOUS WHITE PEARL,090

main81952-30030-B1iAZSH30..RHD202301-202503

PRECIOUS METAL,1L5

main81952-30030-B2iAZSH35,TZSH35;AZSH30..LHD..(B,G)202308

MASSIVE GRAY,1L6

main81952-30030-B4iAZSH30..RHD202301-202503

PRECIOUS SILVER,1J6

main81952-30030-C0iTZSH35..CHI;AZSH30..(B,G)..(CHI,GCC)202301

BLACK,202 ,2TB ,2WC ,2XW ,2XX ,2XY ,2XZ ,2YZ ,2ZA ,2ZB ,2ZR

main81952-30030-D0iAZSH30..RHD202301-202503

EMOTIONAL RED 2,3U5

main81952-30030-E0iAZSH30..M202301-202404

PRECIOUS BRONZE,4Y6

81561DLENS & BODY, REAR COMBINATION LAMP, LH

main81561-30E40iAZSH30..M202301-202404

81567CCOVER, REAR COMBINATION LAMP, LH

main81962-30030-A0iAZSH35,TZSH35;AZSH30..LHD..(B,G)202301

PRECIOUS WHITE PEARL,090

main81962-30030-B1iAZSH30..M202301-202404

PRECIOUS METAL,1L5

main81962-30030-B2iAZSH30..M202308-202404

MASSIVE GRAY,1L6

main81962-30030-B4iAZSH30..M202301-202404

PRECIOUS SILVER,1J6

main81962-30030-C0iTZSH35..CHI;AZSH30..(B,G)..(CHI,GCC)202301

BLACK,202 ,2TB ,2WC ,2XW ,2XX ,2XY ,2XZ ,2YZ ,2ZA ,2ZB ,2ZR

main81962-30030-D0iAZSH35,TZSH35;AZSH30..LHD..(B,G)202301-202504

EMOTIONAL RED 2,3U5

main81962-30030-E0iAZSH30..M202301-202404

PRECIOUS BRONZE,4Y6

81581HLENS & BODY, REAR LAMP

main81581-30670iAZSH30..M202301-202404

81582GASKET, REAR LAMP

main81582-30670iAZSH30..M202301-202404

81952ACOVER, REAR LAMP, RH

main64713-30210iAZSH35,TZSH35;AZSH30..LHD..(B,G)202301

81952GCOVER, REAR LAMP, LH

main64714-30600iAZSH30..RHD202301-202503

8401

9007502052

main90075-02052

9007502064

main90075-02064

9010905111

main90109-05111

9015960431

main90159-60431

9015960621

main90159-60621

9017905102

main90179-05102

9018906249

main90189-06249

9046709206

main90467-09206

24 parts on this diagram · 1 diagram in section
