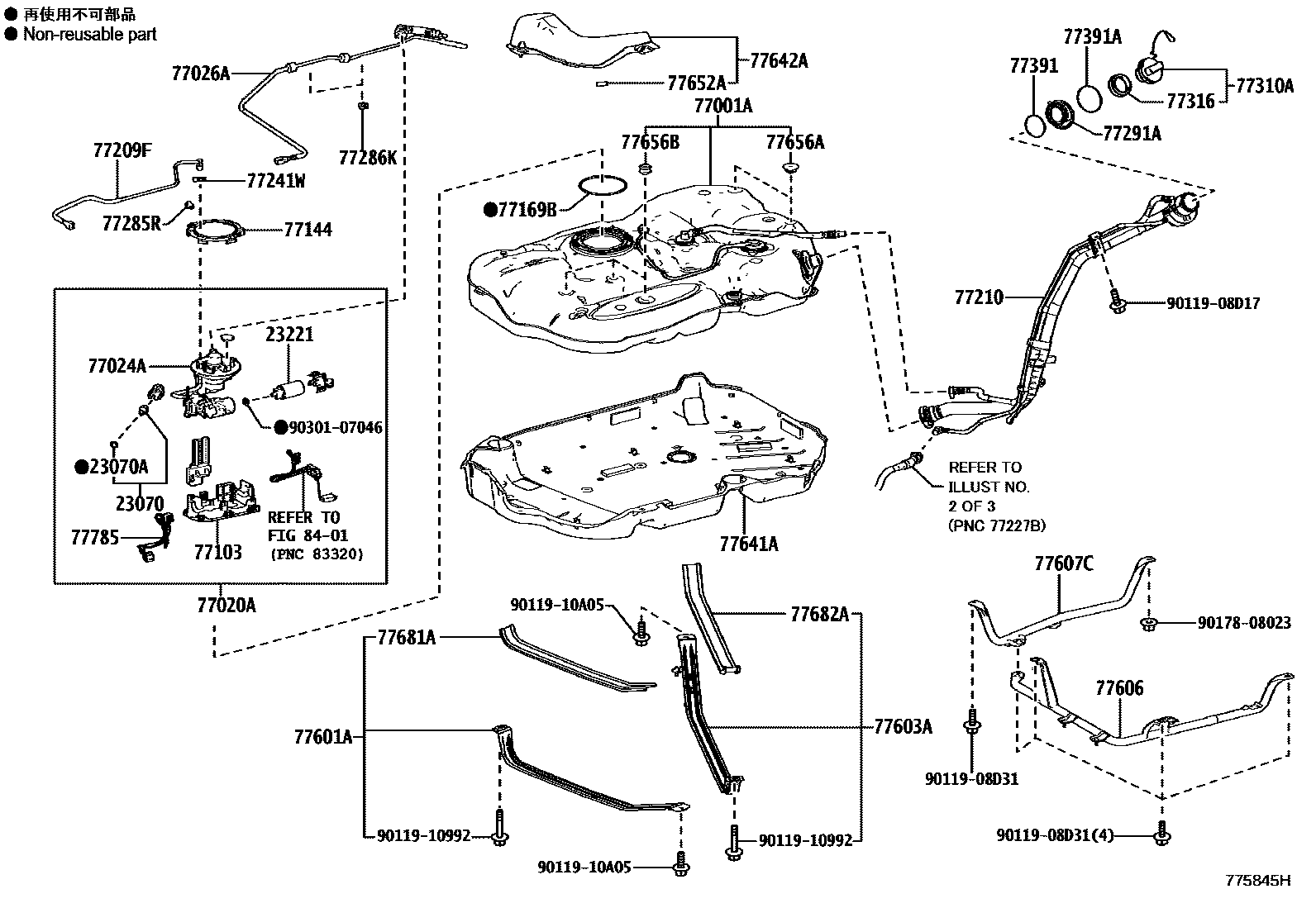

FUEL TANK & TUBE

0001 1FUEL TANK 0002 1FUEL TANK 0003 1FUEL TANK 0004 1FUEL TANK 0005 1FUEL TUBE 0006 1FUEL TUBE 0007 1FUEL TUBE 0008 1FUEL TUBE 0009 1FUEL LID OPENER

23070VALVE ASSY, FUEL MAIN

main23070-24010iA25AFXS..AZSH30..RHD202301-202503

main23070-25020iA25AFXS..AZSH30..M202301-202404

23070ARING, O, NO.1(FOR FUEL MAIN VALVE)

main90301-15024iA25AFXS..AZSH30..RHD202301-202503

23221PUMP, FUEL

main23221-24010iA25AFXS..AZSH30..RHD202301-202503

main23221-25030iA25AFXS..AZSH30..M202301-202404

main23221-25080iT24AFTS..TZSH35202301

77001ATANK SUB-ASSY, FUEL

main77001-30640iAZSH30..GCC;AZSH35,TZSH35..GCC,GEN202301

main77001-30680iAZSH30..M202301-202404

main77001-30610supersedes 77001-30640iAZSH30..LHD..GEN202301-202504

TAIWAN SPEC

77020ATUBE ASSY, FUEL SUCTION W/PUMP & GAGE

main77020-30460iTZSH35..GCC,GEN202301

main77020-30470iTZSH35..CHI202301

main77020-42251iAZSH30..G202301

main77020-42261iAZSH30..RHD202301-202503

77024APLATE SUB-ASSY, FUEL SUCTION

main77024-42131iAZSH35;AZSH30..LHD..B202301

main77024-42150iAZSH30..G202301

main77024-48160iTZSH35..CHI202301

main77024-48170iTZSH35..GCC,GEN202301

77026ATUBE SUB-ASSY, FUEL EVAPORATION, NO.1

main77026-30130iAZSH30..RHD202301-202503

77103SUB-TANK SUB-ASSY, FUEL

main77103-12150iAZSH30..G202301

main77103-42090iAZSH35;AZSH30..LHD..B202301

main77103-48100iTZSH35202301

77144RETAINER, FUEL PUMP GAUGE

main77144-30030iAZSH30..M202301-202404

77169BGASKET, FUEL SUCTION TUBE SET, NO.1

main77169-47030iAZSH30..RHD202301-202503

main77169-47040supersedes 77169-47030iAZSH30..M202301-202404

77209FTUBE SUB-ASSY, FUEL TANK MAIN

main77209-30430iAZSH30..RHD202301-202503

77210PIPE ASSY, FUEL TANK FILLER

main77210-30240iAZSH30..M202301-202404

main77210-30250iAZSH30..RHD202301-202503

main77210-30230supersedes 77210-30250iAZSH30..LHD..GEN202301-202504

TAIWAN SPEC

77241WCLIP, TUBE JOINT

main77241-60550iAZSH30..LHD..B;AZSH35,TZSH35..GCC,GEN202301

77285RCLAMP, FUEL TUBE, NO.1

main77285-30350iAZSH30..M202301-202404

77286KCLAMP, FUEL TUBE, NO.2

main77286-30180×2iAZSH30..LHD..B;AZSH35,TZSH35..GCC,GEN202301

77291ASHIELD, FUEL TANK FILLER PIPE

main77291-33110iAZSH30..M202301-202404

77310ACAP ASSY, FUEL TANK

main77300-11010iAZSH30..M202301-202404

main77300-12020iAZSH30..RHD202301-202503

77316GASKET, FUEL TANK CAP

main77316-52040iAZSH30..LHD..B;AZSH35,TZSH35..GCC,GEN202301

main77316-75020iAZSH30..M202301-202404

77391RING, FUEL INLET BOX

main77391-12020iAZSH35,TZSH35;AZSH30..LHD..(B,G)202301

77391ARING, FUEL INLET BOX

main77391-33060iAZSH35,TZSH35;AZSH30..LHD..(B,G)202301

77601ABAND SUB-ASSY, FUEL TANK, NO.1

main77601-42130iAZSH30..M202301-202404

77603ABAND SUB-ASSY, FUEL TANK, NO.2

main77602-30080iAZSH30..RHD202301-202503

77606PROTECTOR SUB-ASSY, FUEL TANK, NO.1

main77606-30230iAZSH30..RHD202301-202503

77607CPROTECTOR SUB-ASSY, FUEL TANK, NO.2

main77607-30020iAZSH35,TZSH35;AZSH30..LHD..(B,G)202301

77641APROTECTOR, FUEL TANK, NO.1

main77606-42050iAZSH30..M202301-202404

main77606-42060iAZSH30..RHD202301-202503

77642APROTECTOR, FUEL TANK, NO.2

main77642-42070iAZSH35,TZSH35;AZSH30..LHD..(B,G)202301

77652ACUSHION, FUEL TANK, NO.2

main77652-42040iAZSH30..M202301-202404

77656ACUSHION, FUEL TANK, NO.4

main77656-30040×2iAZSH30..M202301-202404

77656BCUSHION, FUEL TANK, NO.6

main77656-33010×3iAZSH30..M202301-202404

77681ASEAT, FUEL TANK BAND

main77681-42040iAZSH30..M202301-202404

77682ASEAT, FUEL TANK BAND, NO.2

main77682-42010iAZSH30..M202301-202404

77785HARNESS, FUEL PUMP

main77785-42061iAZSH30..RHD202301-202503

main77785-42070iAZSH30..M202301-202404

8401

9011908D17

main90119-08D17

9011908D31

main90119-08D31

9011910992

main90119-10992

9011910A05

main90119-10A05

9017808023

main90178-08023

9030107046

main90301-07046

39 parts on this diagram · 9 diagrams in section
