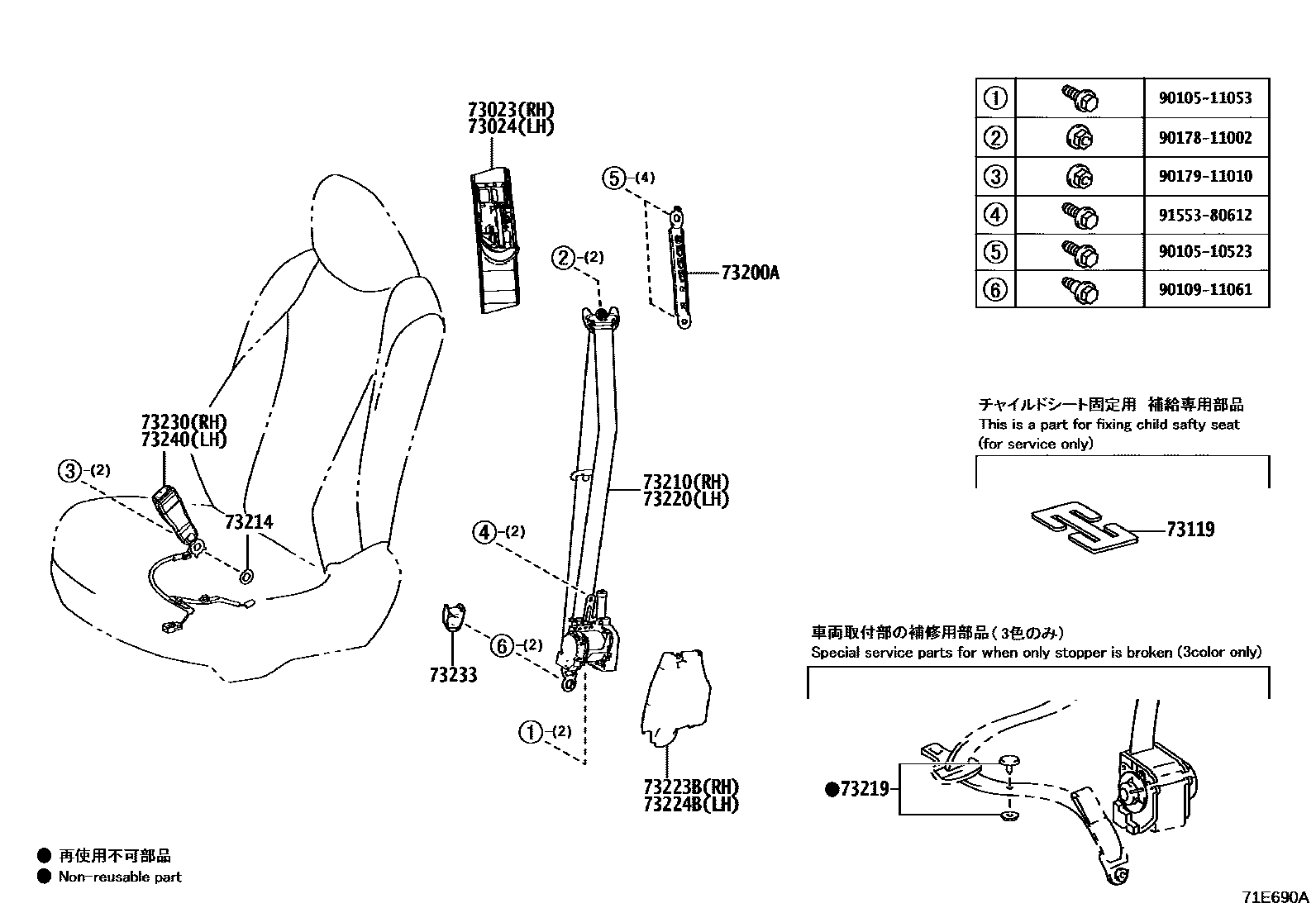

SEAT BELT & CHILD RESTRAINT SEAT

0001 1FRONT SEAT 0002 1REAR SEAT

73023PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH

main73023-12030-C0iAZSH30..LHD..B;AZSH35,TZSH35..GCC,GEN202301

BLACK,TRIM2#

73024PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH

main73024-12020-C0iAZSH30..LHD..B;AZSH35,TZSH35..GCC,GEN202301

BLACK,TRIM2#

73119PLATE, SEAT BELT WEBBING CLIP

main73119-22010iAZSH30..RHD202301-202503

73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR

main73200-12070×2iAZSH30..M202301-202404

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-76201-A4iAZSH30..LHD..B;AZSH35,TZSH35..GCC,GEN202301

FROMAGE,TRIM0#

main73210-76201-C1iAZSH30..RHD202301-202503

BLACK,TRIM2#

main73210-76221-C1iAZSH30,TZSH35..(A,G)..CHI202301

BLACK,TRIM2#

73214PLATE, FRONT SEAT BELT ANCHOR

main73214-75010×2iAZSH30..M202301-202404

73219STOPPER, TONGUE PLATE

main73219-33010iAZSH30..RHD202301-202503

BLACK

main73219-33020iAZSH35,TZSH35;AZSH30..LHD..(B,G)202301

GRAY

main73219-33030iAZSH30..RHD202301-202503

BEIGE

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-76181-A4iAZSH30..RHD202301-202503

FROMAGE,TRIM0#

main73220-76181-C1iAZSH30..RHD202301-202503

BLACK,TRIM2#

main73220-76191-C1iAZSH30,TZSH35..(A,G)..CHI202301

BLACK,TRIM2#

73223COVER, SEAT BELT RETRACTOR

main73223-33070iAZSH30..M202301-202404

73223BCOVER, FRONT SEAT BELT RETRACTOR, RH

main73223-30220iAZSH30..M202301-202404

73224BCOVER, FRONT SEAT BELT RETRACTOR, LH

main73224-30140iAZSH30..M202301-202404

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-30C80-A0iAZSH30..RHD202301-202503

FROMAGE,TRIM0#

main73230-30C80-C0iAZSH30..RHD202301-202503

BLACK,TRIM2#

main73230-30C90-A0iAZSH35..RHD202301

FROMAGE,TRIM0#

main73230-30C90-C0iAZSH35..RHD202301

BLACK,TRIM2#

main73230-30D00-A0iTZSH35..RHD202301

FROMAGE,TRIM0#

main73230-30D00-C0iTZSH35..RHD202301

BLACK,TRIM2#

main73240-30530-A0iAZSH30..GCC202301-202504

FROMAGE,TRIM0#

main73240-30530-C0iTZSH35..GCC202301

BLACK,TRIM00,2#

main73230-30D50-A0iAZSH30..LHD..GEN202301-202504

DJIBOUTI SPEC,FROMAGE,TRIM0#

main73230-30D50-C0iAZSH30..LHD..GEN202301-202504

TAIWAN SPEC,BLACK,TRIM2#

73233COVER, LAP BELT OUTER ANCHOR

main73233-60020-C1×2iAZSH30..LHD..B;AZSH35,TZSH35..GCC,GEN202301

BLACK,TRIM2#

sub73233-35010

73240BELT ASSY, FRONT SEAT INNER, LH

main73230-30C80-A0iAZSH3#..LHD..GEN202301-202504

FROMAGE,TRIM0#

main73230-30C80-C0iAZSH3#..LHD..GEN202301-202504

BLACK,TRIM2#

main73230-30C90-C0iAZSH30..M202301-202404

BLACK,TRIM2#

main73230-30D00-A0iTZSH35..GCC202301

FROMAGE,TRIM0#

main73230-30D00-C0iTZSH35..GCC202301

BLACK,TRIM00,2#

main73230-30D50-A0iAZSH35..RHD202301

FROMAGE,TRIM0#

main73230-30D50-C0iAZSH35..RHD202301

BLACK,TRIM2#

main73240-30530-A0iAZSH30..RHD202301-202503

FROMAGE,TRIM0#

main73240-30530-C0iTZSH35..RHD202301

BLACK,TRIM2#

main73230-30C90-A0iAZSH30..LHD..GEN202301-202504

DJIBOUTI SPEC,FROMAGE,TRIM0#

9010510523

main90105-10523

9010511053

main90105-11053

9010911061

main90109-11061

9017811002

main90178-11002

9017911010

main90179-11010

9155380612

main91553-80612

20 parts on this diagram · 2 diagrams in section
