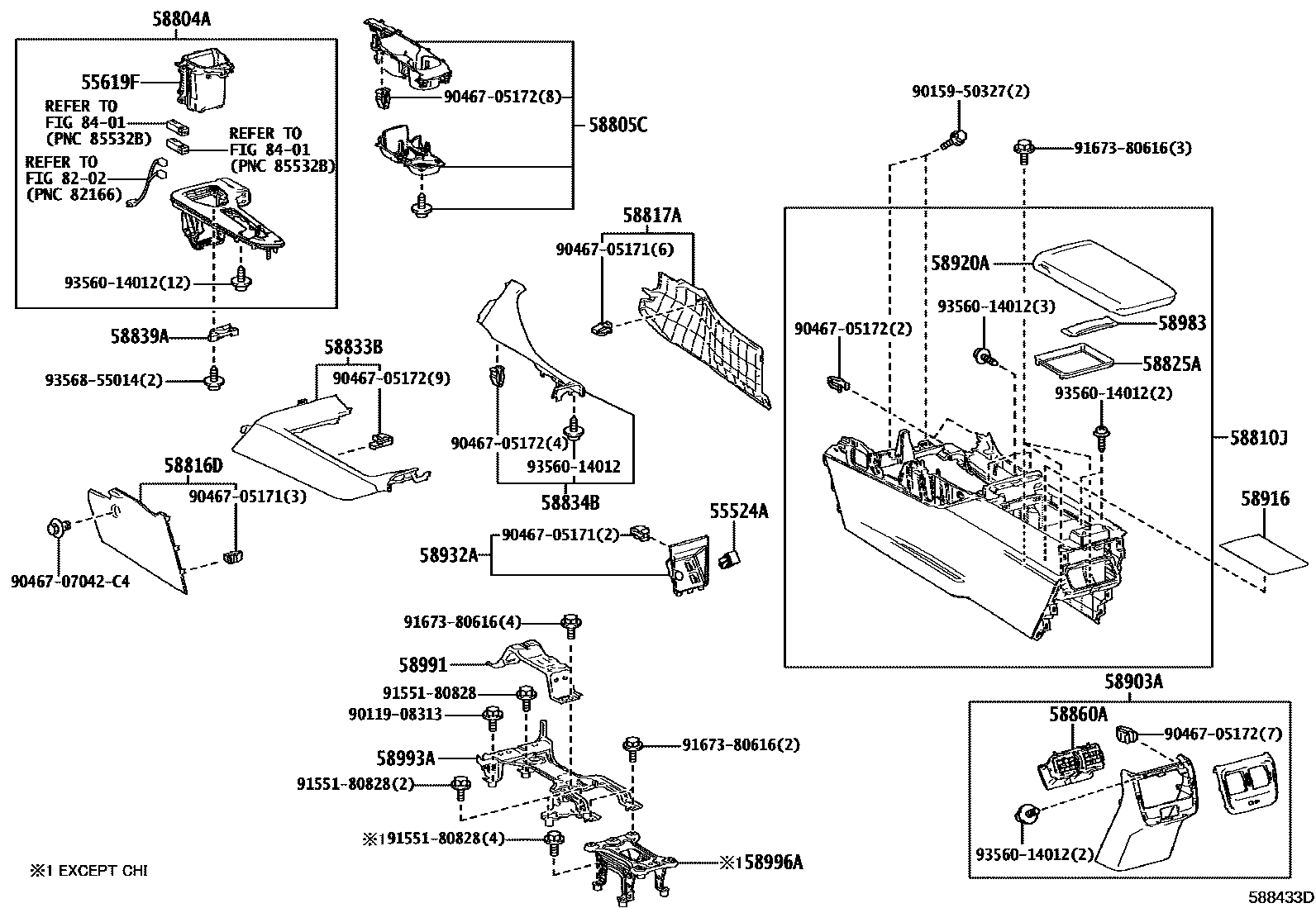

CONSOLE BOX & BRACKET

0001 1 0002 1

55524ACOVER, SWITCH BASE HOLE

main55524-12010-C0iAZSH30..M202301-202503

BLACK

55619FHOLDER, CONSOLE BOX CUP, NO.2

main55630-30010iTZSH35..GCC202301

DECONTENT PACKAGE

main55630-30010iAZSH30..RHD202301-202503

main55630-30010iTZSH35..LHD..GEN202301-202404

TAIWAN SPEC

main55630-30020iAZSH30,TZSH35..(A,G)..CHI202301

WIRELESS CHARGER-WITH

58804APANEL SUB-ASSY, CONSOLE, UPPER

main58804-30870-B0iAZSH3#..RHD202301-202404

DK.GRAY,TRIM0#,2#

main58804-30880-B0iTZSH35..RHD202301-202404

DK.GRAY,TRIM0#,2#

main58804-30A50-B0iTZSH35..GCC202301-202404

DECONTENT PACKAGE,DK.GRAY,TRIM0#,2#

main58804-30A50-B0iAZSH30,TZSH35..(A,M)..CHI202301-202404

DK.GRAY,TRIM2#

main58804-30A50-B0iAZSH30,TZSH35..(A,M)..CHI202301-202404

DK.GRAY,TRIM0#,2#

main58804-30A50-B0iAZSH30,TZSH35..(A,M)..CHI202301-202404

TAIWAN SPEC,DK.GRAY,TRIM0#,2#

main58804-30A60-B0iTZSH35..LHD..(GCC,GEN)202301-202404

WIRELESS CHARGER-WITH,DK.GRAY,TRIM2#

main58804-30A60-B0iTZSH35..LHD..(GCC,GEN)202301-202404

DK.GRAY,TRIM0#,2#

main58804-30A60-B0iTZSH35..LHD..(GCC,GEN)202301-202404

WIRELESS CHARGER-WITH,DK.GRAY,TRIM0#,2#

main58804-30G90iAZSH30..RHD202404-202503

main58804-30J00iTZSH35..RHD202404

main58804-30J10iAZSH35..LHD;TZSH35..CHI;AZSH30..LHD..(B,G)202404

DECONTENT PACKAGE

main58804-30J20iTZSH35..LHD..(GCC,GEN)202404

WIRELESS CHARGER-WITH

58805CPANEL SUB-ASSY, CONSOLE, UPPER REAR

main58805-30A40iAZSH3#,TZSH35..RHD202301-202404

main58805-30A60iAZSH3#..LHD;TZSH35..LHD..(CHI,GEN)202301-202404

DECONTENT PACKAGE

main58805-30A70iTZSH35..GCC202301-202404

MID LUX PACKAGE

main58805-30A81iAZSH35,TZSH35..RHD202404-202503

main58805-30B01iTZSH35..GCC202404

DECONTENT PACKAGE

main58805-30B11iTZSH35..GCC202404

MID LUX PACKAGE

58810JBOX ASSY, CONSOLE

main58810-30C90-C0iAZSH3#,TZSH35..RHD202301-202404

BLACK/FROMAGE,TRIM0#

main58810-30C90-C1iAZSH3#..RHD202312-202404

BLACK/BLACK,TRIM20,21

main58810-30C90-C1iAZSH3#,TZSH35..RHD202301-202312

BLACK/BLACK,TRIM2#

main58810-30C90-C1iTZSH35..RHD202312-202404

BLACK/BLACK,TRIM20,21,22

main58810-30C90-C5iAZSH30..RHD202404-202503

BLACK/FROMAGE,TRIM0#

main58810-30C90-C6iAZSH35,TZSH35..RHD202404-202503

BLACK,TRIM2#

main58810-30C90-C6iAZSH3#,TZSH35..RHD202312-202404

BLACK,TRIM20

main58810-30D70-C0iAZSH3#,TZSH35..LHD..(GCC,GEN)202301-202404

BLACK/FROMAGE,TRIM0#

main58810-30D70-C0iAZSH3#,TZSH35..LHD..(GCC,GEN)202310-202404

BLACK/FROMAGE,TRIM00

main58810-30D70-C1iAZSH30..M202301-202404

BLACK/BLACK,TRIM20

main58810-30D70-C1iAZSH30..LHD..GEN;TZSH35..LHD..(GCC,GEN)202301-202310

BLACK/BLACK,TRIM2#

main58810-30D70-C1iTZSH35..CHI202301-202404

BLACK/BLACK,TRIM20,21,22

main58810-30D70-C1iTZSH35..CHI202301-202404

BLACK/BLACK,TRIM20,21

main58810-30D70-C2iAZSH35..LHD;TZSH35..CHI;AZSH30..CHI,GCC202301-202404

BLACK/DK.CHESTNUT,TRIM23

main58810-30D70-C6iAZSH3#,TZSH35..LHD..(GCC,GEN)202404

FROMAGE/WARM SATIN SILVER,TRIM0#

main58810-30D70-C6iAZSH3#,TZSH35..LHD..(GCC,GEN)202310-202404

FROMAGE/WARM SATIN SILVER,TRIM00

main58810-30D70-C7iTZSH35..CHI202310-202404

BLACK/ SATIN SILVER,TRIM20

main58810-30D70-C7iAZSH3#,TZSH35..LHD..(GCC,GEN)202404

BLACK/ SATIN SILVER,TRIM2#

main58810-30D70-C7iAZSH30..G202310

BLACK/ SATIN SILVER,TRIM21

main58810-30D70-C9iAZSH30,TZSH35..(A,G)..CHI202404

BLACK/SADDLE TAN,TRIM24

58816DINSERT, CONSOLE BOX, FRONT NO.1

main58816-30110-C0iAZSH30..RHD202301-202503

BLACK,TRIM0#,2#

main58816-30120-C0iTZSH35..CHI202301

BLACK,TRIM0#,2#

main58816-30120-C0iAZSH30..M202301-202404

BLACK,TRIM2#

58817AINSERT, CONSOLE BOX, FRONT NO.2

main58817-30050-C0iAZSH35,TZSH35..RHD202301-202503

BLACK,TRIM0#,2#

main58817-30060-C0iTZSH35..CHI202301-202404

BLACK,TRIM2#

main58817-30060-C0iAZSH30..LHD..(B,G);AZSH35,TZSH35..LHD..(GCC,GEN)202301

BLACK,TRIM0#,2#

58825APOCKET, CONSOLE BOX

main58825-30170iAZSH35,TZSH35;AZSH30..LHD..(B,G)202301-202503

58833BGARNISH, CONSOLE UPPER PANEL, NO.1

main58833-30190-A0iAZSH3#,TZSH35..RHD202301-202404

FROMAGE,TRIM0#

main58833-30190-C0iAZSH3#,TZSH35..RHD202301-202404

BLACK,TRIM2#

main58833-30230-A0iAZSH30..LHD..(B,G);AZSH35,TZSH35..LHD..(GCC,GEN)202301-202404

FROMAGE,TRIM0#

main58833-30230-C0iAZSH30..LHD..GEN;TZSH35..LHD..(GCC,GEN)202301-202404

BLACK,TRIM2#

main58833-30230-C0iAZSH30..LHD..GEN;TZSH35..LHD..(GCC,GEN)202301-202404

BLACK,TRIM20,21

main58833-30230-C0iAZSH35..LHD;AZSH30..(B,G)..(CHI,GCC)202301-202404

BLACK,TRIM20,21,22

main58833-30230-C0iAZSH35..LHD;AZSH30..(B,G)..(CHI,GCC)202301-202404

BLACK,TRIM20

main58833-30230-E0iAZSH35..LHD;TZSH35..CHI;AZSH30..CHI,GCC202301-202404

DK.CHESTNUT,TRIM23

main58833-30280-A0iAZSH30..RHD202404-202503

FROMAGE,TRIM0#

main58833-30280-C0iAZSH30..RHD202404-202503

BLACK,TRIM2#

main58833-30290-A0iAZSH3#,TZSH35..LHD..(GCC,GEN)202404

FROMAGE,TRIM0#

main58833-30290-C0iAZSH3#,TZSH35..LHD..(GCC,GEN)202404

BLACK,TRIM21

main58833-30290-C0iTZSH35..CHI202404

BLACK,TRIM20

main58833-30290-C0iTZSH35..CHI202404

BLACK,TRIM2#

main58833-30290-E0iAZSH30,TZSH35..(A,G)..CHI202404

SADDLE TAN,TRIM24

58834BGARNISH, CONSOLE UPPER PANEL, NO.2

main58834-30120-A0iAZSH3#,TZSH35..RHD202301-202404

FROMAGE,TRIM0#

main58834-30120-C0iAZSH3#,TZSH35..RHD202301-202404

BLACK,TRIM2#

main58834-30130-A0iAZSH30..LHD..(B,G);AZSH35,TZSH35..LHD..(GCC,GEN)202301-202404

FROMAGE,TRIM0#

main58834-30130-C0iTZSH35..CHI202301-202404

BLACK,TRIM20,21

main58834-30130-C0iAZSH30..M202301-202404

BLACK,TRIM20,21,22

main58834-30130-C0iAZSH30..M202301-202404

BLACK,TRIM20

main58834-30130-C0iAZSH30..M202301-202404

BLACK,TRIM2#

main58834-30130-E0iAZSH35..LHD;TZSH35..CHI;AZSH30..CHI,GCC202301-202404

DK.CHESTNUT,TRIM23

main58834-30210-A0iAZSH30..RHD202404-202503

FROMAGE,TRIM0#

main58834-30210-C0iAZSH30..RHD202404-202503

BLACK,TRIM2#

main58834-30220-A0iAZSH3#,TZSH35..LHD..(GCC,GEN)202404

FROMAGE,TRIM0#

main58834-30220-C0iAZSH30..G202404

BLACK,TRIM2#

main58834-30220-C0iAZSH3#,TZSH35..LHD..(GCC,GEN)202404

BLACK,TRIM21

main58834-30220-C0iAZSH3#,TZSH35..LHD..(GCC,GEN)202404

BLACK,TRIM20

main58834-30220-E0iAZSH30,TZSH35..(A,G)..CHI202404

SADDLE TAN,TRIM24

58839ACOVER, CONSOLE BOX HOLE

main58839-30090iTZSH35..RHD202301

DECONTENT PACKAGE

main58839-30090iAZSH30..M202301-202404

main58839-30090iAZSH30..GCC202301

ST.KITTS SPEC

main58839-30090iAZSH30..GCC202301

GUYANA SPEC

main58839-30090iAZSH30..GCC202301

NAMIBIA SPEC

main58839-30090iAZSH30..GCC202301

MAURITIUS SPEC

main58839-30090iAZSH30..GCC202301

CENTRAL ASIA SPEC

58860AREGISTER ASSY, CONSOLE BOX

main58860-30150iAZSH3#,TZSH35202301-202404

main58860-30180iAZSH35,TZSH35;AZSH30..LHD..(B,G)202404-202503

58903APANEL SUB-ASSY, CONSOLE REAR END

main58903-30450-C1iAZSH3#,TZSH35..GCC,GEN202301-202404

DK.GRAY,TRIM2#

main58903-30450-C1iAZSH30,TZSH35..CHI202301-202404

DK.GRAY,TRIM0#,2#

main58903-30500-C1iAZSH30,TZSH35..(A,G)..CHI202404-202503

BLACK/DK.GRAY,TRIM0#,2#

main58903-30500-C1iAZSH30..LHD..B;AZSH35,TZSH35..GCC,GEN202404

BLACK/DK.GRAY,TRIM2#

58916MAT, BOX BOTTOM

main58916-30230iAZSH35,TZSH35;AZSH30..LHD..(B,G)202301-202503

58920AARMREST ASSY, REAR CONSOLE

main58920-30340-A0iAZSH3#,TZSH35..RHD202301-202404

FROMAGE/FROMAGE,TRIM0#

main58920-30340-A0iAZSH35,TZSH35..RHD202404-202503

FROMAGE/FROMAGE,TRIM00

main58920-30340-A1iAZSH3#,TZSH35..LHD..(GCC,GEN)202312

FROMAGE/SATIN SILVER,TRIM0#

main58920-30340-A1iAZSH35,TZSH35..RHD202404-202503

FROMAGE/SATIN SILVER,TRIM00

main58920-30340-C0iTZSH35..GCC,GEN202301-202404

BLACK/BLACK,TRIM20,21,22

main58920-30340-C0iTZSH35..GCC,GEN202301-202404

BLACK/BLACK,TRIM20,21

main58920-30340-C0iAZSH30..GEN;AZSH35..RHD;TZSH35..GCC,GEN202301-202312

BLACK/BLACK,TRIM2#

main58920-30340-C0iTZSH35..CHI202301-202404

BLACK/BLACK,TRIM20

main58920-30340-C1iTZSH35..CHI202312

BLACK/SATIN SILVER,TRIM21

main58920-30340-C1iAZSH30..RHD202404-202503

BLACK/SATIN SILVER,TRIM2#

main58920-30340-C1iTZSH35..CHI202312-202404

BLACK/SATIN SILVER,TRIM20

main58920-30340-E0iAZSH35..LHD;TZSH35..CHI;AZSH30..CHI,GCC202301-202404

DK.CHESTNUT/DK.CHESTNUT,TRIM23

main58920-30340-E4iAZSH30,TZSH35..(A,G)..CHI202404

SADDLE TAN/SATIN SILVER,TRIM24

58932AGARNISH, REAR CONSOLE BOX

main58932-30070iAZSH3#,TZSH35202301-202307

sub58932-30100

main58932-30100iAZSH30..RHD202308-202503

58983RETAINER, UPPER CONSOLE

main58983-30190iAZSH30..RHD202301-202503

58991BRACKET, CONSOLE BOX MOUNTING, UPPER

main58991-30170iAZSH35,TZSH35..RHD202301-202503

main58991-30180iAZSH30..M202301-202404

58993ABRACKET, CONSOLE BOX MOUNTING, LOWER

main58993-30100iAZSH30..RHD202301-202503

main58993-30110iAZSH30..M202301-202404

58996ABRACKET, CONSOLE BOX MOUNTING, NO.2

main58996-30160iAZSH3#,TZSH35..GCC,GEN202301-202404

sub58996-30161

main58996-30161iAZSH30..RHD202405-202503

8202

8401

9011908313

main90119-08313

9015950327

main90159-50327

9046705171

main90467-05171

9046705172

main90467-05172

9046707042C4

main90467-07042C4

9155180828

main91551-80828

9167380616

main91673-80616

9356014012

main93560-14012

9356855014

main93568-55014

31 parts on this diagram · 2 diagrams in section
