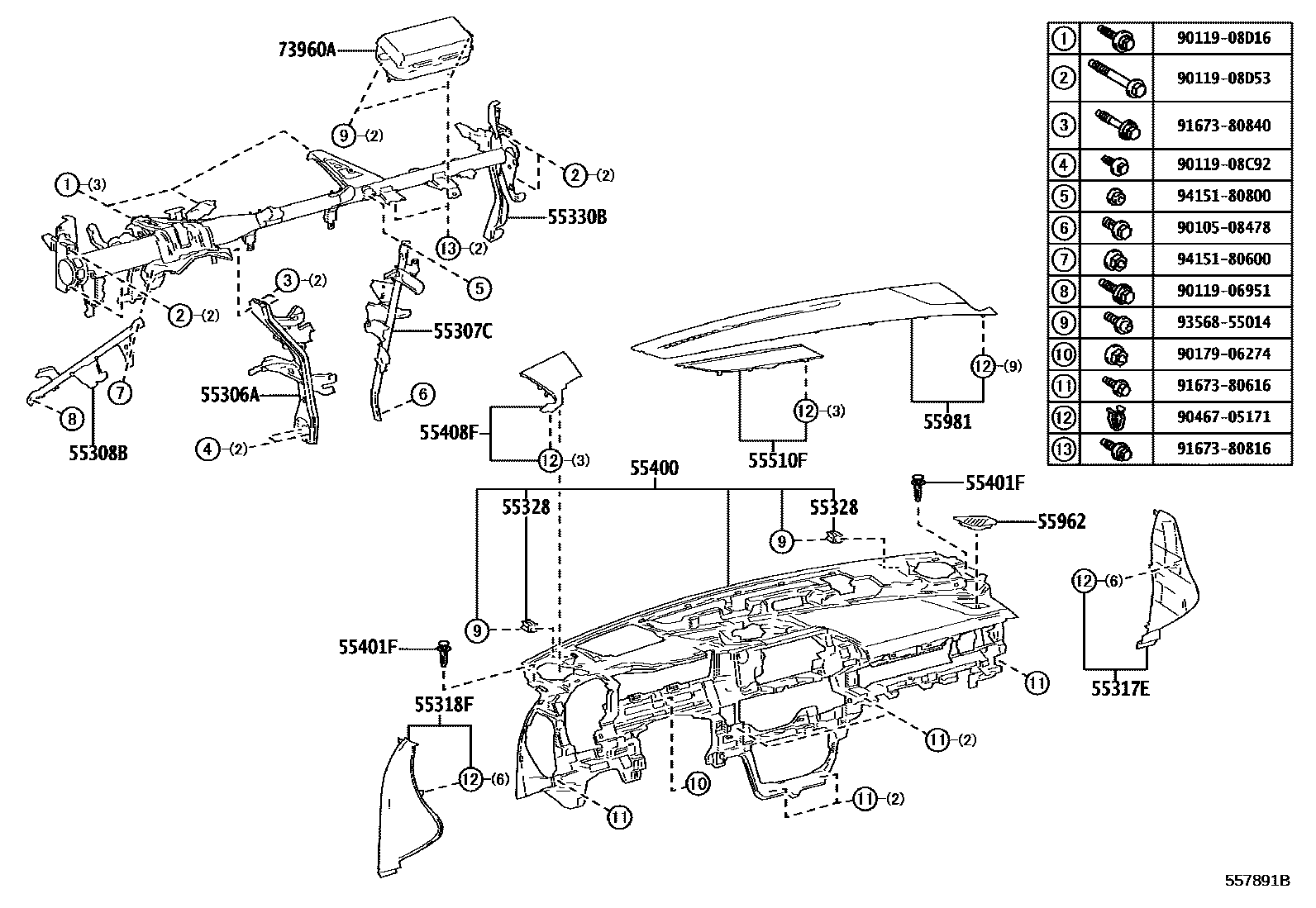

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1 0003 1DRIVER SIDE 0004 1DRIVER SIDE 0005 1CENTER 0006 1CENTER 0007 1PASSENGER SIDE 0008 1PASSENGER SIDE

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-30350iAZSH3#,TZSH35..RHD202301-202306

main55306-30351iAZSH30..RHD202307-202503

main55306-30360iAZSH3#,TZSH35..LHD202301-202403

main55306-30361iAZSH35,TZSH35..LHD;AZSH30..LHD..(B,G)202404

55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55307-30350iAZSH35,TZSH35..RHD202301

main55307-30360iAZSH35,TZSH35..LHD;AZSH30..LHD..(B,G)202301

55308BBRACE SUB-ASSY, INSTRUMENT PANEL TO COWL, NO.3

main55308-30250iAZSH30..RHD202301-202503

main55308-30260iAZSH30..M202301-202404

55317EPANEL, INSTRUMENT SIDE, NO.1

main55317-30160-C0iAZSH30..M202301-202404

BLACK,TRIM2#

55318FPANEL, INSTRUMENT SIDE, NO.2

main55318-30210-C0iAZSH30..LHD..(B,G);AZSH35,TZSH35..GCC,GEN202301

BLACK,TRIM2#

55328PIN, INSTRUMENT PANEL, NO.1

main55328-12430×2iAZSH30..M202301-202404

55330BREINFORCEMENT ASSY, INSTRUMENT PANEL

main55330-30511iAZSH3#,TZSH35..RHD202301-202307

main55330-30521iAZSH3#,TZSH35..LHD202301-202404

main55330-30550iAZSH35,TZSH35..RHD202308

main55330-30560iAZSH35,TZSH35..LHD;AZSH30..LHD..(B,G)202405

55400PAD ASSY, INSTRUMENT PANEL SAFETY

main55400-30320-C0iTZSH35..RHD202301

SOFT BLACK,TRIM0#,20,22

main55400-30320-E0iAZSH35,TZSH35..RHD202301

OCHER,TRIM21

main55400-30330-C0iTZSH35..LHD..(GCC,GEN)202301

SOFT BLACK,TRIM20,22,23,24

main55400-30330-E0iAZSH35,TZSH35..LHD;AZSH30..LHD..(B,G)202301

OCHER,TRIM21

55401FCLIP(FOR SAFETY PAD)

main52161-16010×2iAZSH30..M202301-202404

sub52161-0K040

55408FPANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.1

main55408-30460iAZSH30..RHD202301-202503

main55408-30470iAZSH30..M202301-202404

55510FCOVER ASSY, SPEAKER OPENING, NO.1

main55510-30270-C0iTZSH35..RHD202301

BLACK,TRIM0#,20,22

main55510-30270-E0iTZSH35..RHD202301

OCHER,TRIM21

main55510-30280-C0iAZSH30..RHD202404-202503

BLACK,TRIM0#,2#

main55510-30280-E0iAZSH3#..RHD202301-202404

OCHER,TRIM21

main55510-30290-C0iTZSH35..LHD..(GCC,GEN)202301

BLACK,TRIM0#,20,23

main55510-30290-E0iAZSH35,TZSH35..LHD;AZSH30..LHD..(B,G)202301

OCHER,TRIM21

main55510-30320-C0iTZSH35..GCC202301

UAE SPEC&REMOTE SERVICE PACKAGE-WITH,BLACK,TRIM0#,2#

55962NOZZLE, SIDE DEFROSTER, NO.2

main55962-30140-C0iAZSH30..RHD202301-202503

BLACK,TRIM0#,20

main55962-30140-E0iAZSH30..RHD202301-202503

OCHER,TRIM21

main55962-30150-C0iTZSH35..LHD..(GCC,GEN)202301

BLACK,TRIM0#,20,23

main55962-30150-E0iAZSH35,TZSH35..LHD;AZSH30..LHD..(B,G)202301

OCHER,TRIM21

55981GARNISH, DEFROSTER NOZZLE, NO.1

main55981-30190iAZSH30..RHD202301-202503

main55981-30200iAZSH30..M202301-202404

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-30140iAZSH30..RHD202301-202503

main73960-30150iAZSH35,TZSH35..LHD;AZSH30..LHD..(B,G)202301

9010508478

main90105-08478

9011906951

main90119-06951

9011908C92

main90119-08C92

9011908D16

main90119-08D16

9011908D53

main90119-08D53

9017906274

main90179-06274

9046705171

main90467-05171

9167380616

main91673-80616

9167380816

main91673-80816

9167380840

main91673-80840

9356855014

main93568-55014

9415180600

main94151-80600

9415180800

main94151-80800

27 parts on this diagram · 8 diagrams in section
