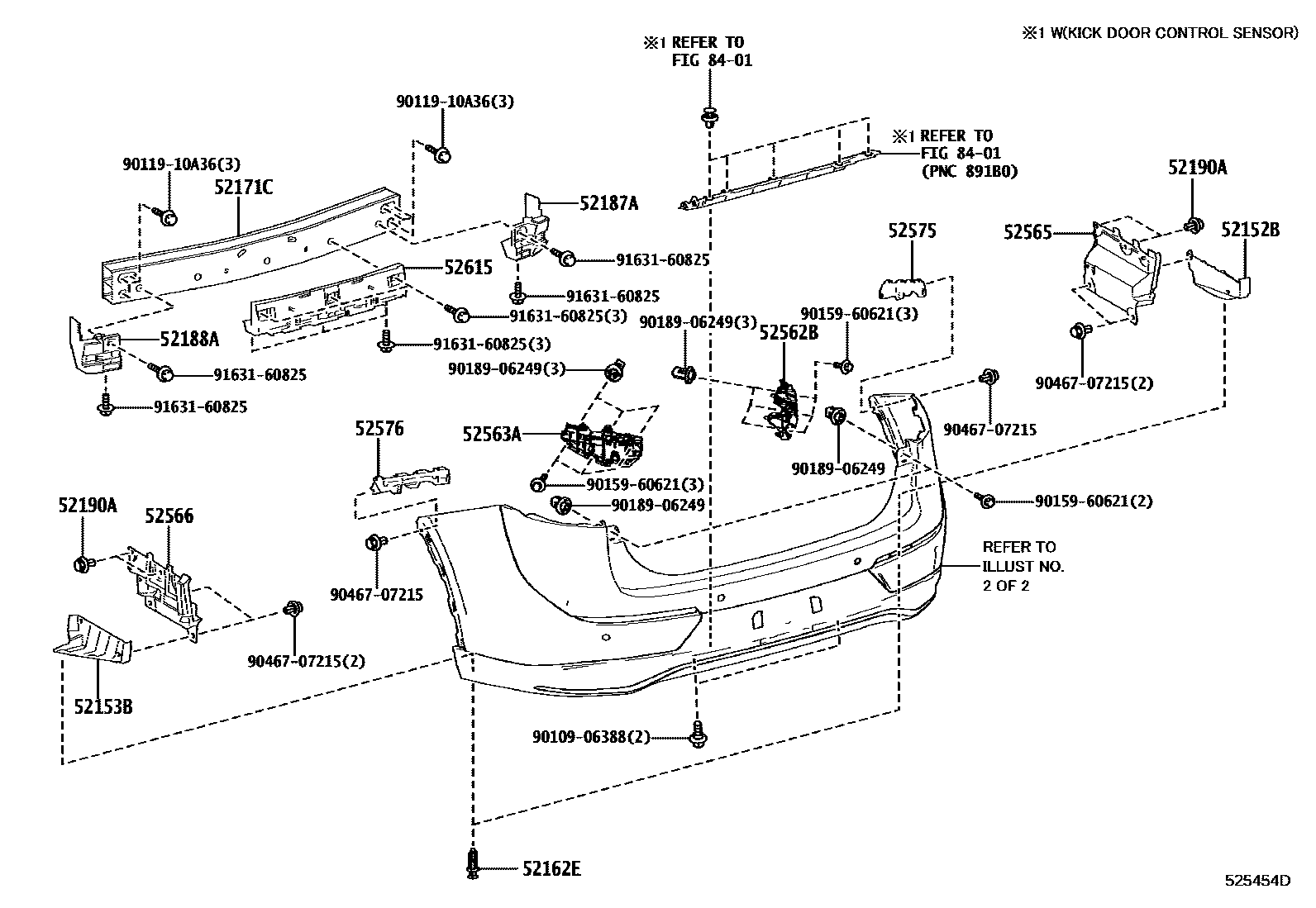

REAR BUMPER & BUMPER STAY

0001 1 0002 1

52152BEXTENSION, REAR BUMPER, RH

main52152-30240iAZSH30..RHD202301-202503

52153BEXTENSION, REAR BUMPER, LH

main52153-30160iAZSH30..RHD202301-202503

52162EPIECE, REAR BUMPER

main52161-16010×8iAZSH35,TZSH35;AZSH30..LHD..(B,G)202301

sub52161-0K040

52171CREINFORCEMENT, REAR BUMPER

main52171-30310iAZSH30..M202301-202404

52187AREINFORCEMENT, REAR BUMPER ARM, RH

main52187-30120iAZSH35,TZSH35;AZSH30..LHD..(B,G)202301

52188AREINFORCEMENT, REAR BUMPER ARM, LH

main52188-30130iAZSH30..M202301-202404

52190ACLIP

main90467-07215×4iAZSH30..M202301-202404

52562BRETAINER, REAR BUMPER, UPPER RH

main52562-30180iAZSH30..M202301-202404

52563ARETAINER, REAR BUMPER, UPPER LH

main52563-30120iAZSH35,TZSH35;AZSH30..LHD..(B,G)202301

52565FILLER, REAR BUMPER EXTENSION, RH

main52565-30070iAZSH30..M202301-202404

52566FILLER, REAR BUMPER EXTENSION, LH

main52566-30040iAZSH30..M202301-202404

52575RETAINER, REAR BUMPER SIDE, RH

main52575-30220iAZSH30..M202301-202404

52576RETAINER, REAR BUMPER SIDE, LH

main52576-30180iAZSH30..M202301-202404

52615ABSORBER, REAR BUMPER ENERGY

main52615-30330iAZSH35,TZSH35;AZSH30..LHD..(B,G)202301

8401

9010906388

main90109-06388

9011910A36

main90119-10A36

9015960621

main90159-60621

9018906249

main90189-06249

9046707215

main90467-07215

9163160825

main91631-60825

21 parts on this diagram · 2 diagrams in section
