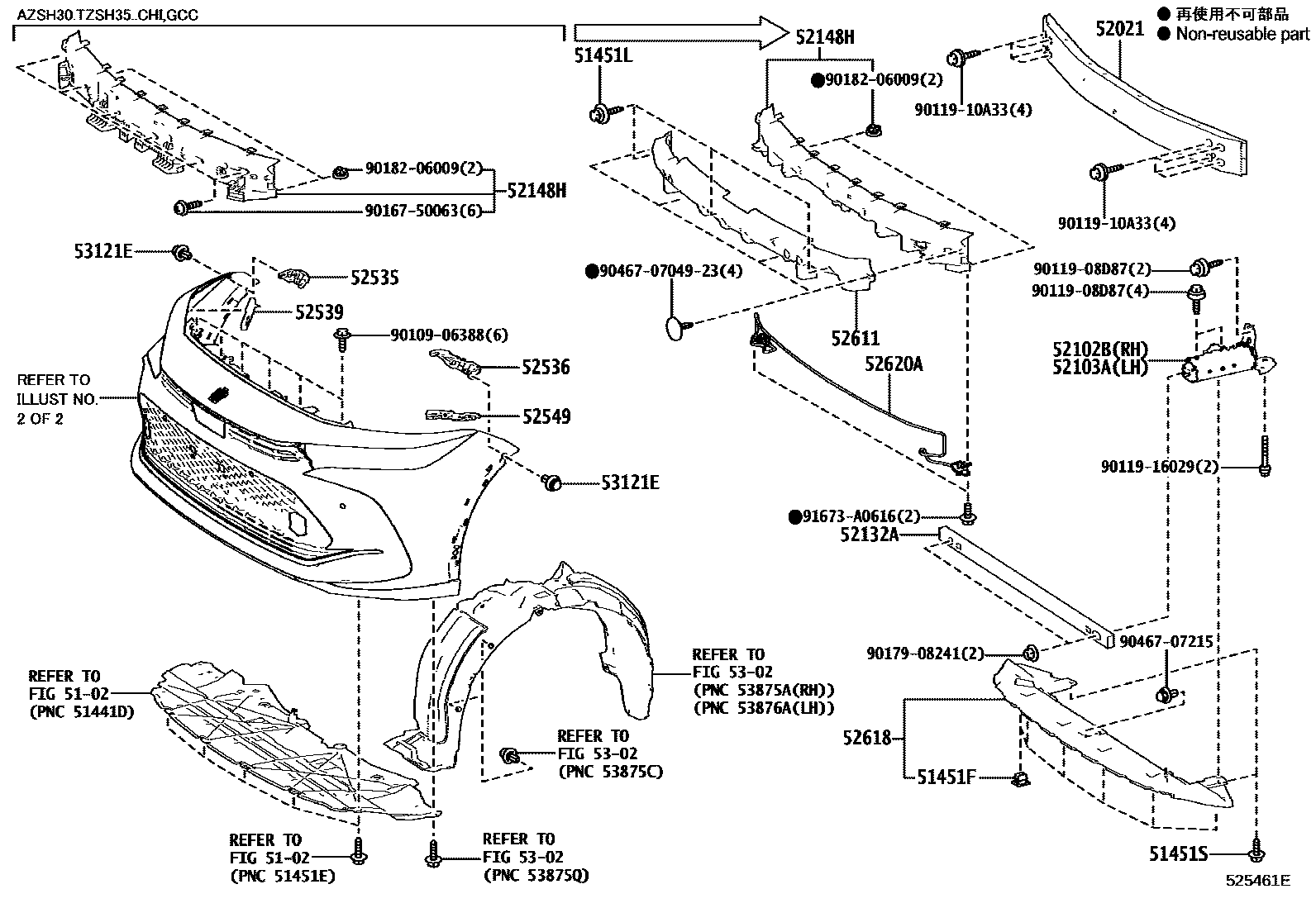

FRONT BUMPER & BUMPER STAY

0001 1 0002 1

5102

51451FGROMMET, NO.1

main90189-06237×6iAZSH30..RHD202301-202503

51451LBOLT, NO.1

main90119-06953×3iAZSH30..M202301-202404

51451SBOLT, NO.2

main90119-06A13×2iAZSH30..M202301-202404

52021REINFORCEMENT SUB-ASSY, FRONT BUMPER

main52021-30200iAZSH30..M202301-202404

52102BEXTENSION SUB-ASSY, FRONT BUMPER, RH

main52102-30040iAZSH30..M202301-202404

52103AEXTENSION SUB-ASSY, FRONT BUMPER, LH

main52103-30070iAZSH30..M202301-202404

52132AREINFORCEMENT, FRONT BUMPER, NO.2

main52132-30160iAZSH35,TZSH35;AZSH30..LHD..(B,G)202301

52148HBRACKET, FRONT BUMPER MOUNTING, NO.2

main52148-30130iAZSH30..RHD202301-202503

main52148-30200iAZSH30,TZSH35..(A,B,G)..(CHI,GCC)202301

52535RETAINER, FRONT BUMPER SIDE, RH

main52535-30290iAZSH35,TZSH35;AZSH30..LHD..(B,G)202301

52536RETAINER, FRONT BUMPER SIDE, LH

main52536-30290iAZSH30..M202301-202404

52539RETAINER, FRONT BUMPER SIDE, NO.3 RH

main52539-30060iAZSH30..RHD202301-202503

52549RETAINER, FRONT BUMPER SIDE, NO.3 LH

main52549-30050iAZSH35,TZSH35;AZSH30..LHD..(B,G)202301

52611ABSORBER, FRONT BUMPER ENERGY

main52611-30580iAZSH30..M202301-202404

52618ABSORBER, FRONT BUMPER, LOWER

main52618-30011iAZSH30..RHD202301-202503

main52618-30030iAZSH30..M202301-202404

52620ACHAMBER ASSY, PEDESTRIAN DETECTION

main52620-62010iAZSH35,TZSH35;AZSH30..LHD..(B,G)202301

5302

53121ECLIP(FOR FRONT BUMPER), NO.1

main90467-07215×2iAZSH30..M202301-202404

9010906388

main90109-06388

9011908D87

main90119-08D87

9011910A33

main90119-10A33

9011916029

main90119-16029

9016750063

main90167-50063

9017908241

main90179-08241

9018206009

main90182-06009

904670704923

main90467-0704923

9046707215

main90467-07215

91673A0616

main91673-A0616

28 parts on this diagram · 2 diagrams in section
