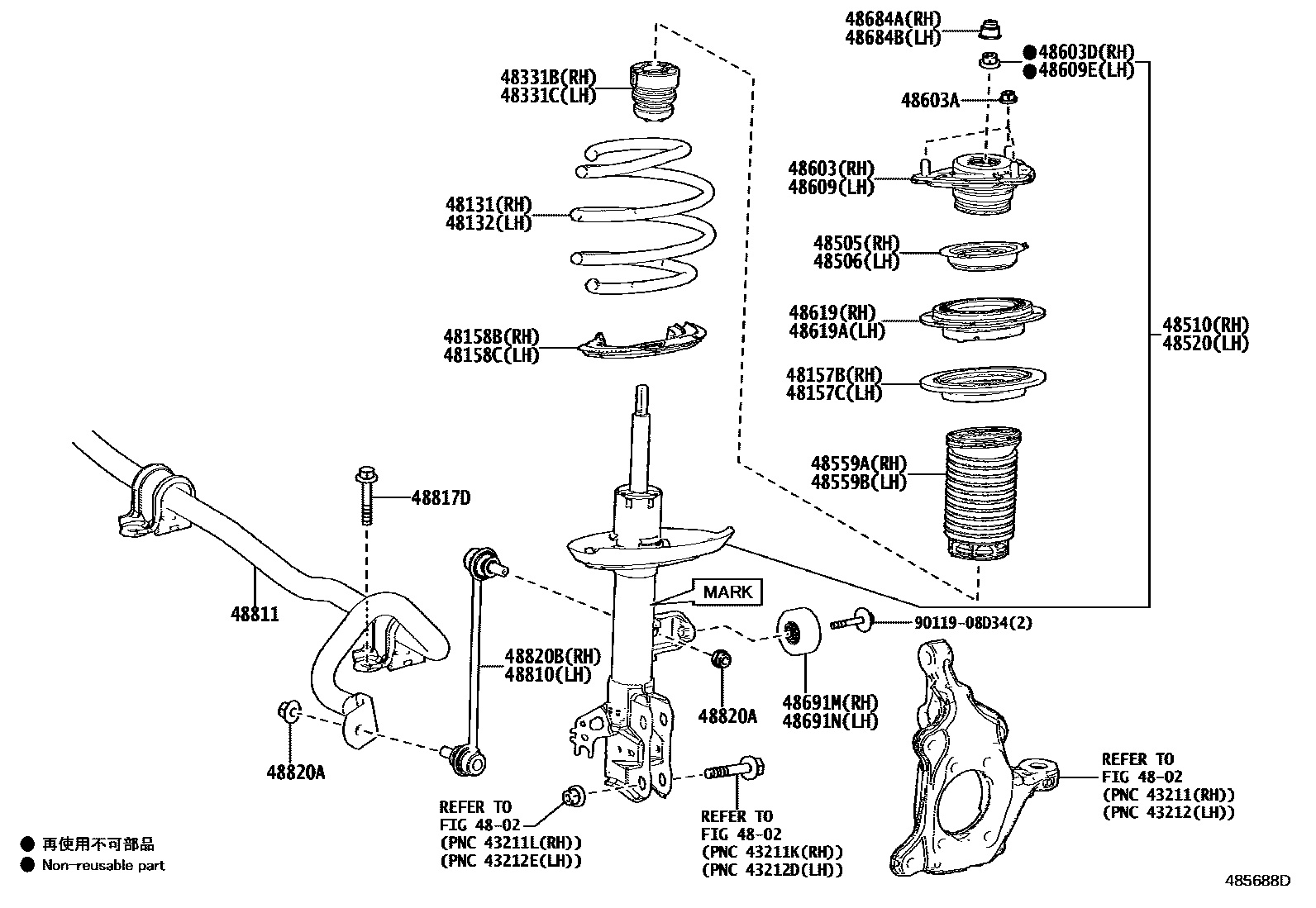

FRONT SPRING & SHOCK ABSORBER

4802

48131SPRING, FRONT COIL, RH

main48131-30G10supersedes 48131-30G20iAZSH35..RHD;AZSH30..(B,G)..(CHI,GCC)202301

main48131-30G20iAZSH30..GCC202301

ARGENTINA SPEC

main48131-30G40iTZSH35..GEN202301

IRAQ SPEC

48132SPRING, FRONT COIL, LH

main48131-30G10supersedes 48131-30G20iAZSH30..M202301-202404

main48131-30G20iAZSH30..RHD202301-202503

main48131-30G40iTZSH35..GEN202301

IRAQ SPEC

48157BINSULATOR, FRONT COIL SPRING, UPPER RH

main48157-48060iAZSH30..M202301-202404

48157CINSULATOR, FRONT COIL SPRING, UPPER LH

main48157-48060iAZSH30..M202301-202404

48158BINSULATOR, FRONT COIL SPRING, LOWER RH

main48158-33110iAZSH30..RHD202301-202503

48158CINSULATOR, FRONT COIL SPRING, LOWER LH

main48158-33110iAZSH35,TZSH35;AZSH30..LHD..(B,G)202301

48331BBUMPER, FRONT SPRING, RH

main48331-33101iAZSH30..RHD202312-202503

main48331-42140iAZSH30,TZSH35..A,G,M202301-202404

48331CBUMPER, FRONT SPRING, LH

main48331-33101iAZSH30,TZSH35..A,G202404

main48331-42140iAZSH3#..GCC,GEN202301-202312

48505SEAT, FRONT SPRING, RH

main48159-48010iAZSH30..M202301-202404

48506SEAT, FRONT SPRING, LH

main48159-48010iAZSH35,TZSH35;AZSH30..LHD..(B,G)202301

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-80C83iTZSH35..LHD..GEN202404

MARK 48510-30F21

main48510-80C84iTZSH35..GCC,GEN202404

MARK 48510-30F71

main48510-8Z560supersedes 48510-8Z608iAZSH30..M202301-202404

MARK 48510-30F40

main48510-8Z563iTZSH35202301-202404

MARK 48510-30F70

main48510-8Z608iAZSH30..GCC202301

MARK 48510-30G70,CENTRAL ASIA SPEC

main48510-80C85iAZSH30..G202404

MARK 48510-30K60,MOON ROOF-WITHOUT

48520ABSORBER ASSY, SHOCK, FRONT LH

main48520-80827iTZSH35..GCC,GEN202404

MARK 48520-30A71

main48520-80828iTZSH35..LHD..GEN202404

MARK 48520-30A21,TAIWAN SPEC

main48520-8Z390supersedes 48520-8Z429iAZSH35..RHD;AZSH30..(B,G)..(CHI,GCC)202301

MARK 48520-30A40

main48520-8Z393iTZSH35202301-202404

MARK 48520-30A70

main48520-8Z429iAZSH30..RHD202301-202503

MARK 48520-30B70

main48520-80829iAZSH30..G202404

MARK 48520-30D60,MOON ROOF-WITHOUT

48559ACOVER, FRONT SHOCK ABSORBER DUST, RH NO.1

main48559-42010iAZSH35,TZSH35;AZSH30..LHD..(B,G)202301

48559BCOVER, FRONT SHOCK ABSORBER DUST, LH NO.1

main48559-42010iAZSH30..M202301-202404

48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH

main48609-30320iAZSH30..LHD..B;AZSH35,TZSH35..GCC,GEN202301

main48609-30330iAZSH30..M202301-202404

48603ANUT(FOR FRONT SUSPENSION SUPPORT)

main90178-10029×6iAZSH30..M202301-202404

48603DNUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)

main90177-14007iAZSH30..M202301-202404

48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH

main48609-30320iAZSH30..RHD202301-202503

main48609-30330iAZSH30,TZSH35..(A,G)..CHI202301

48609ENUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)

main90177-14007iAZSH30..M202301-202404

48619BEARING, STRUT MOUNTING, RH

main48619-48010iAZSH30,TZSH35..CHI202301-202401

main48619-48011iAZSH30..M202402-202404

48619ABEARING, STRUT MOUNTING, LH

main48619-48010iAZSH30,TZSH35..CHI202301-202401

main48619-48011iAZSH30..M202402-202404

48684ACOVER, FRONT SUSPENSION SUPPORT DUST, RH

main48684-33030iAZSH30..M202301-202404

48684BCOVER, FRONT SUSPENSION SUPPORT DUST, LH

main48684-33030iAZSH35,TZSH35;AZSH30..LHD..(B,G)202301

48691MDAMPER, FRONT SUSPENSION, RH

main48691-33030iAZSH30..RHD202301-202503

48691NDAMPER, FRONT SUSPENSION, LH

main48691-33030iAZSH30..M202301-202404

48810LINK ASSY, FRONT STABILIZER, LH

main48820-30130iAZSH30..M202301-202404

48811BAR, STABILIZER, FRONT

main48804-30020iAZSH30..M202301-202404

main48804-30070iTZSH35..GCC,GEN202301

main48804-30080iAZSH30..G202404

MOON ROOF-WITHOUT

48817DBOLT(FOR FRONT STABILIZER)

main90119-10994×4iAZSH35,TZSH35;AZSH30..LHD..(B,G)202301

48820ANUT(FOR FRONT STABILIZER LINK)

main94151-21241×4iAZSH30..RHD202301-202503

48820BLINK ASSY, FRONT STABILIZER, RH

main48820-30130iAZSH30..RHD202301-202503

9011908D34

main90119-08D34

32 parts on this diagram · 1 diagram in section
