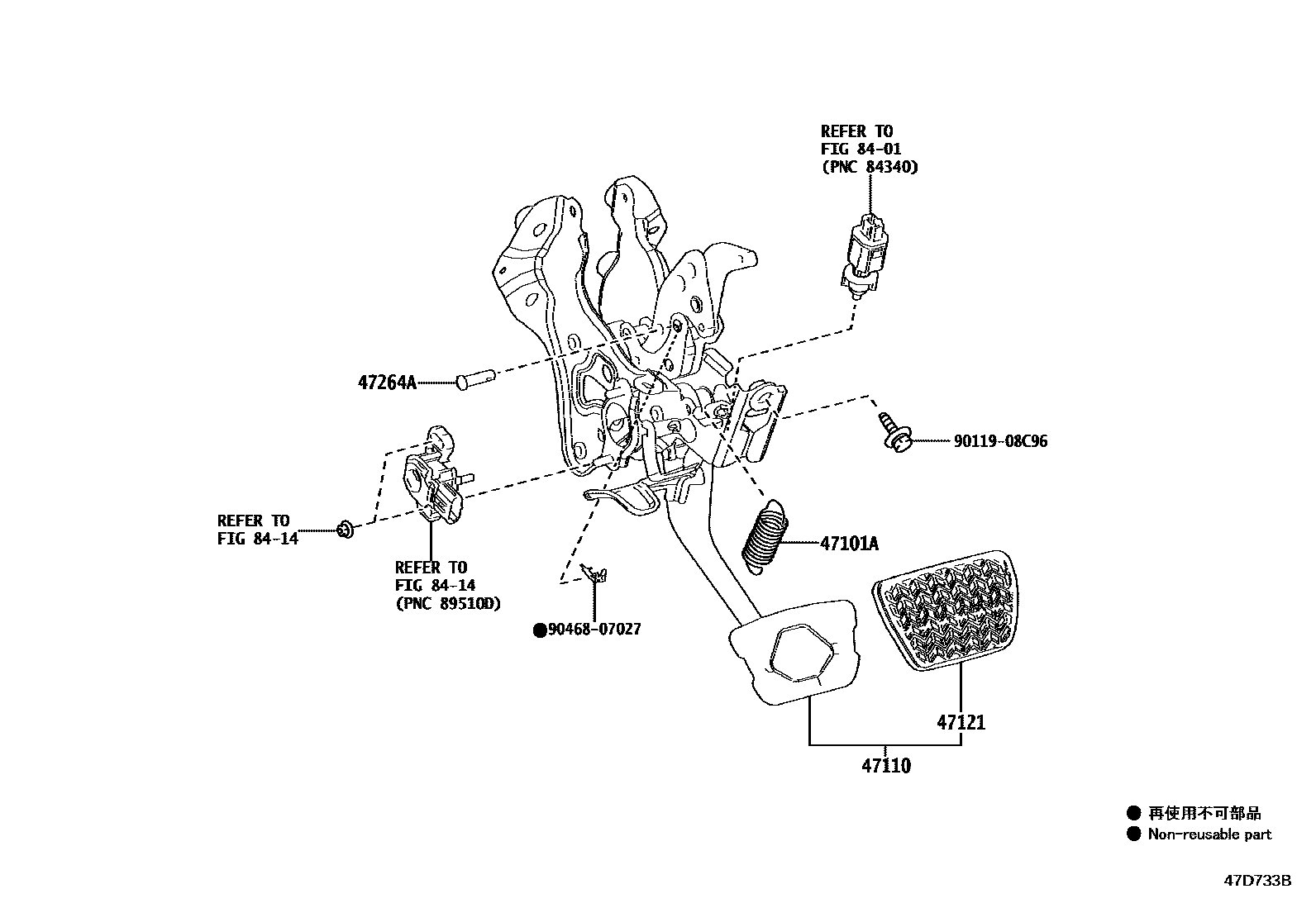

BRAKE PEDAL & BRACKET

0001 1 0002 1

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-21003iAZSH30..M202301-202503

47110SUPPORT ASSY, BRAKE PEDAL

main47110-30620iAZSH35,TZSH35..RHD202301-202503

main47110-30630iAZSH35,TZSH35..LHD;AZSH30..LHD..(B,G)202301-202404

47121PAD, BRAKE PEDAL

main47121-62010iAZSH30..M202301-202503

47264APIN(FOR PUSH ROD)

main90240-08078iAZSH30..M202301-202503

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

8414ABS & VSC

→ Go to FIG 84-14

9011908C96

main90119-08C96

9046807027

main90468-07027

8 parts on this diagram · 2 diagrams in section
