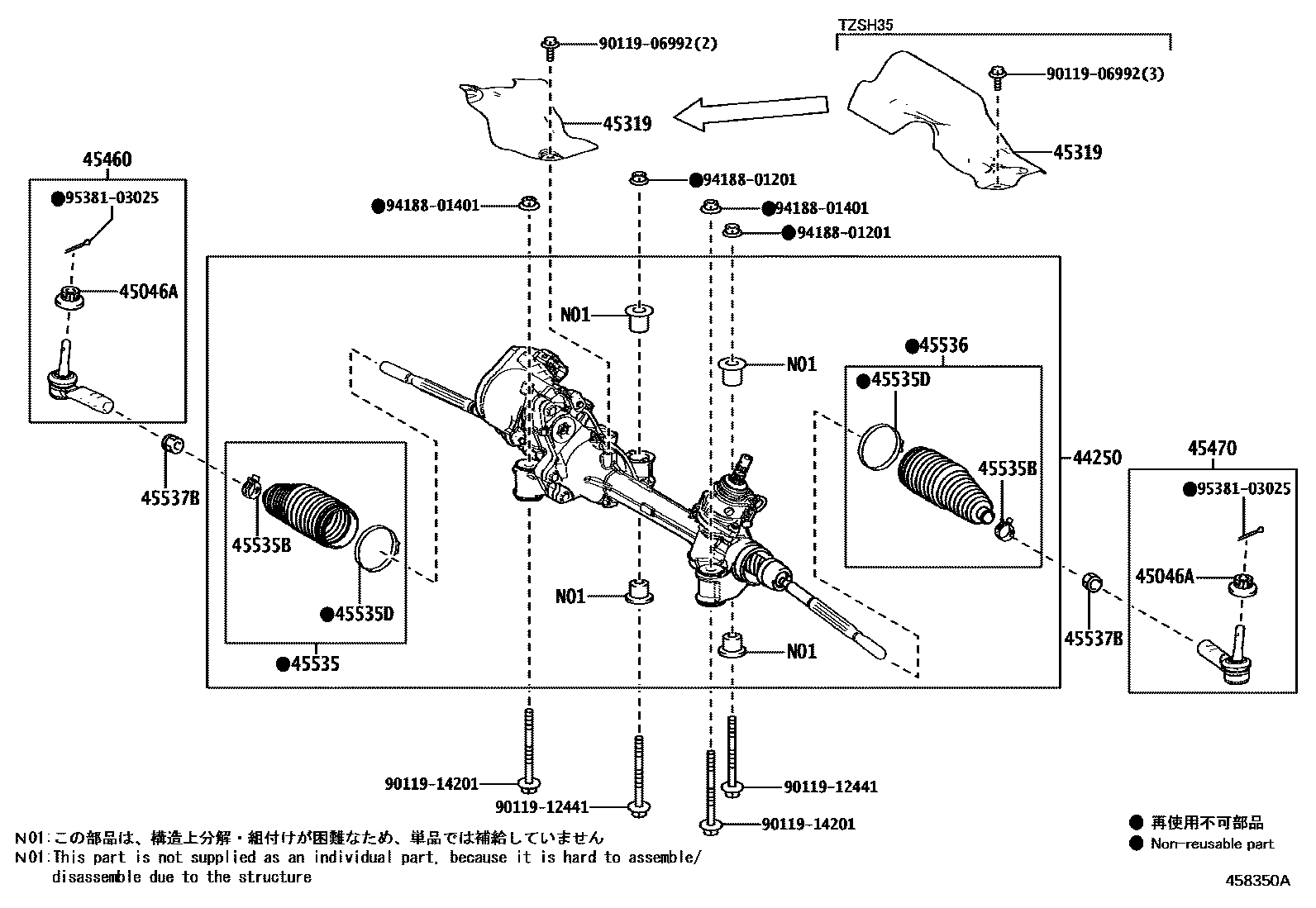

FRONT STEERING GEAR & LINK

0001 1 0002 1

44250GEAR ASSY, POWER STEERING(FOR RACK & PINION)

main44250-30440iAZSH3#,TZSH35..RHD202301-202404

*614

main44250-30441iAZSH35,TZSH35..RHD202404

main44250-30450iTZSH35..LHD..GEN202404

MOON ROOF-WITHOUT

main44250-30460iAZSH3#,TZSH35..LHD202301-202404

*614

main44250-30461iAZSH30..LHD..(B,G);AZSH35,TZSH35..LHD..(GCC,GEN)202404

DECONTENT PACKAGE(FOR CHINA)&MOON ROOF-WITHOUT

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12015×2iAZSH35,TZSH35;AZSH30..LHD..(B,G)202301

45319INSULATOR, STEERING GEAR HEAT

main45319-42020iAZSH30..M202301-202404

main45319-42030iAZSH30..RHD202301-202503

main45319-78010iTZSH35..LHD202301

45460ROD ASSY, TIE, RH

main45460-49095iAZSH30..RHD202404-202503

45470ROD ASSY, TIE, LH

main45460-49095iAZSH30..M202301-202404

45535BOOT, STEERING RACK, NO.1

main45535-49095iAZSH30..RHD202301-202503

45535BCLIP(FOR STEERING RACK BOOT)

main90467-19021×2iAZSH30..M202301-202404

45535DCLAMP(FOR STEERING RACK BOOT NO.1)

main45538-06030×2iAZSH30..M202301-202404

45536BOOT, STEERING RACK, NO.2

main45535-49095iAZSH30..M202301-202404

45537BNUT, RACK END LOCK

main90178-16001×2iAZSH30..M202301-202404

9011906992

main90119-06992

9011912441

main90119-12441

9011914201

main90119-14201

9418801201

main94188-01201

9418801401

main94188-01401

9538103025

main95381-03025

16 parts on this diagram · 2 diagrams in section
