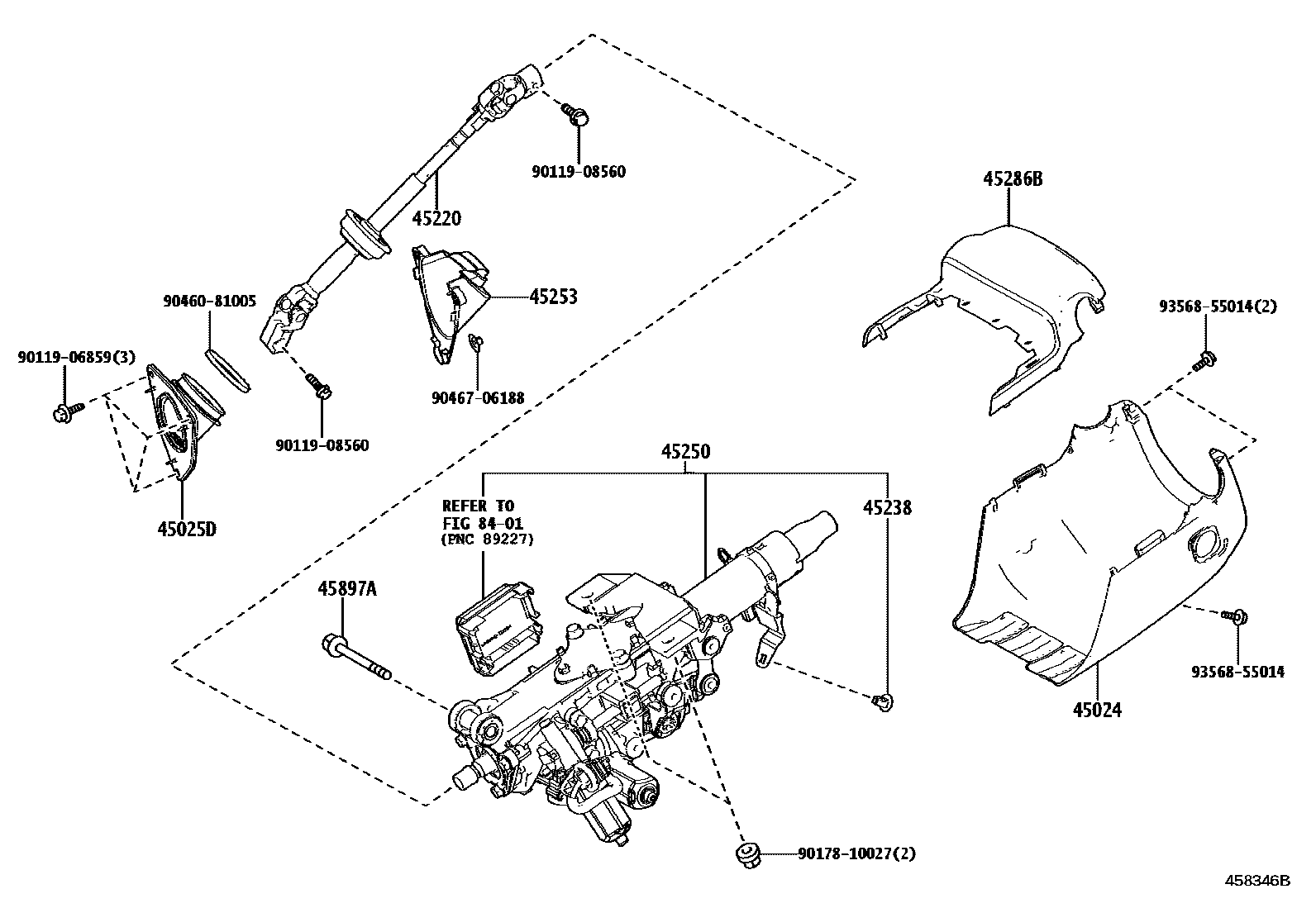

STEERING COLUMN & SHAFT

0001 1ELECTRIC TILT & TELESCOPIC 0002 1MANUAL TILT & TELESCOPIC 0003 1ELECTRIC TILT & TELESCOPIC 0004 1MANUAL TILT & TELESCOPIC

45024COVER SUB-ASSY, STEERING COLUMN, LOWER

main45024-30130-C0supersedes 45024-30140-C0iTZSH35..CHI202301

MID LUX PACKAGE,BLACK,TRIM0#,2#

main45024-30140-C0iAZSH30..M202301-202404

BLACK,TRIM2#

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-48110iAZSH30..M202301-202404

45220SHAFT ASSY, STEERING INTERMEDIATE

main45220-42010iAZSH30..M202301-202404

main45220-42020iAZSH35,TZSH35..RHD202301

45238CLAMP, BOLT(FOR STEERING FLEXIBLE COUPLING)

main45238-11010supersedes 45238-52010iAZSH30..GCC202301

MID LUX PACKAGE

main45238-52010iAZSH30..M202301-202404

45250COLUMN ASSY, STEERING

main45250-33D20iAZSH30..B,M;AZSH35..LHD202301-202404

main45250-46060supersedes 45250-60D90iAZSH30..GCC202404

MID LUX PACKAGE

main45250-48420iAZSH30..GCC202301-202404

DJIBOUTI SPEC

main45250-60D90iAZSH30..RHD202404-202503

45253COVER, STEERING COLUMN HOLE

main45253-48070iAZSH30..M202301-202404

45286BCOVER, STEERING COLUMN, UPR

main45286-30A70-C0iTZSH35..CHI202301

BLACK,TRIM2#

main45286-30A80-C0iAZSH30..M202301-202404

BLACK,TRIM2#

45897ABOLT, TILT STEERING PAWL SET

main90119-10A34iAZSH35,TZSH35;AZSH30..LHD..(B,G)202301

8401

9011906859

main90119-06859

9011908560

main90119-08560

9017810027

main90178-10027

9046081005

main90460-81005

9046706188

main90467-06188

9356855014

main93568-55014

15 parts on this diagram · 4 diagrams in section
