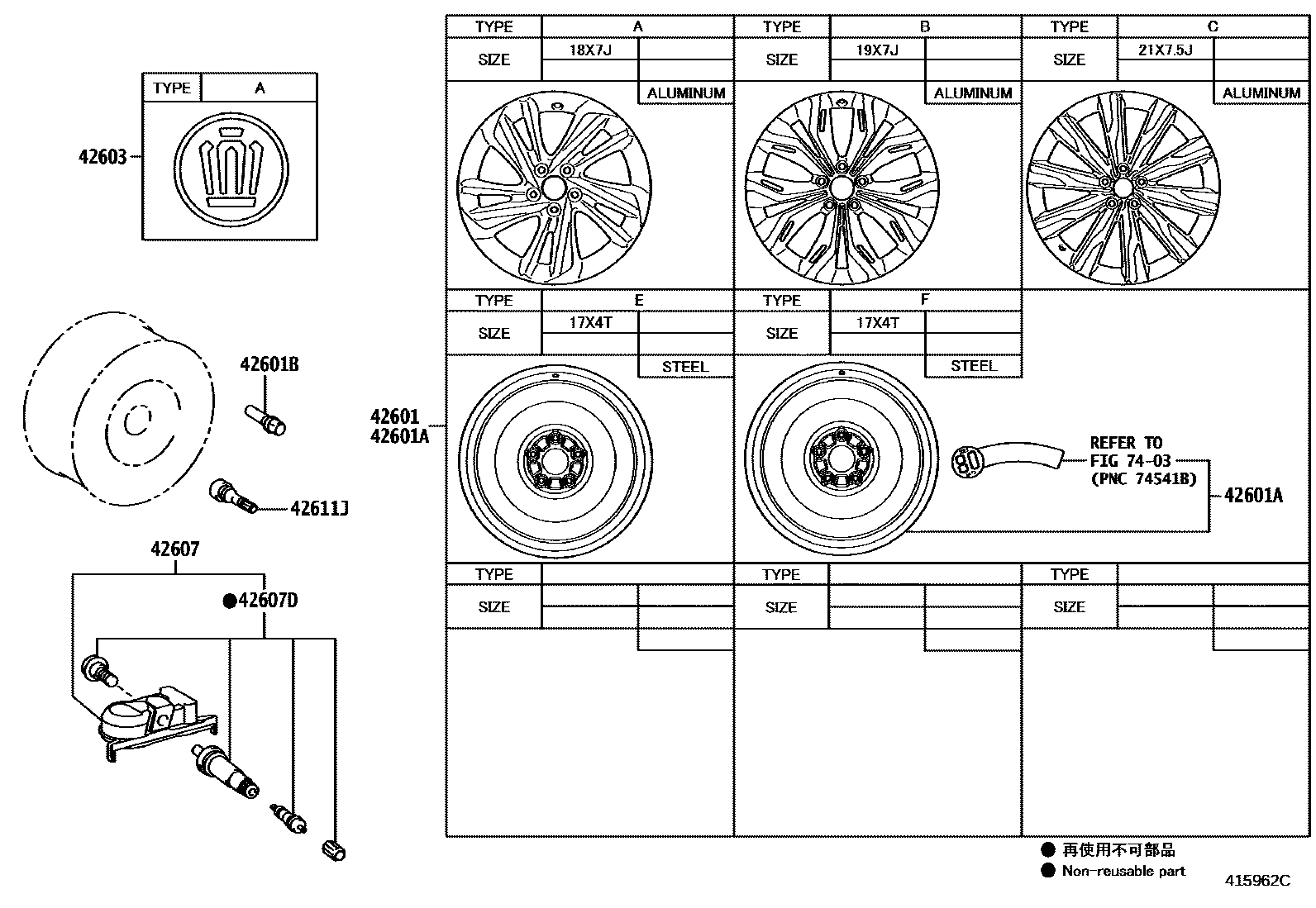

DISC WHEEL & WHEEL CAP

0001 1DISC WHEEL & WHEEL HUB ORNAME0002 1BALANCE WEIGHT

42601WHEEL, DISC

main42611-30K60iAZSH30..M202301-202503

19X7J, #,TYPE B:REFER ILLUST.

main42611-30K70iTZSH35202301

21X7.5J,#,TYPE C:REFER ILLUST.

42601AWHEEL, DISC (FOR SPARE)

main4261B-30010iAZSH30..RHD202301-202504

17X4T,TYPE E:REFER ILLUST.

main4261B-30010iAZSH30..GCC;AZSH35,TZSH35..GCC,GEN202301

17X4T,SPARE TIRE-TEMPORARY(T165/80D17),TYPE E:REFER ILLUST.

42601BBOLT, HUB (FOR AXLE)

main90942-02103iAZSH30..M202301-202503

TYPE B:REFER ILLUST.

42603ORNAMENT SUB-ASSY, WHEEL HUB

main42603-30690iAZSH30..M202301-202503

*ALU,TYPE A:REFER ILLUST.

42607VALVE SUB-ASSY, TIRE PRESSURE MONITOR

main42607-42050iAZSH30..M202301-202503

42607DVALVE, TIRE PRESSURE MONITOR

main90942-05043iAZSH30..M202301-202503

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90942-05009iAZSH30..RHD202301-202504

main90942-05009iAZSH30..GCC;AZSH35,TZSH35..GCC,GEN202301

SPARE TIRE-TEMPORARY(T165/80D17)

7403CAUTION PLATE (EXTERIOR & INTERIOR)

→ Go to FIG 74-03

8 parts on this diagram · 2 diagrams in section
