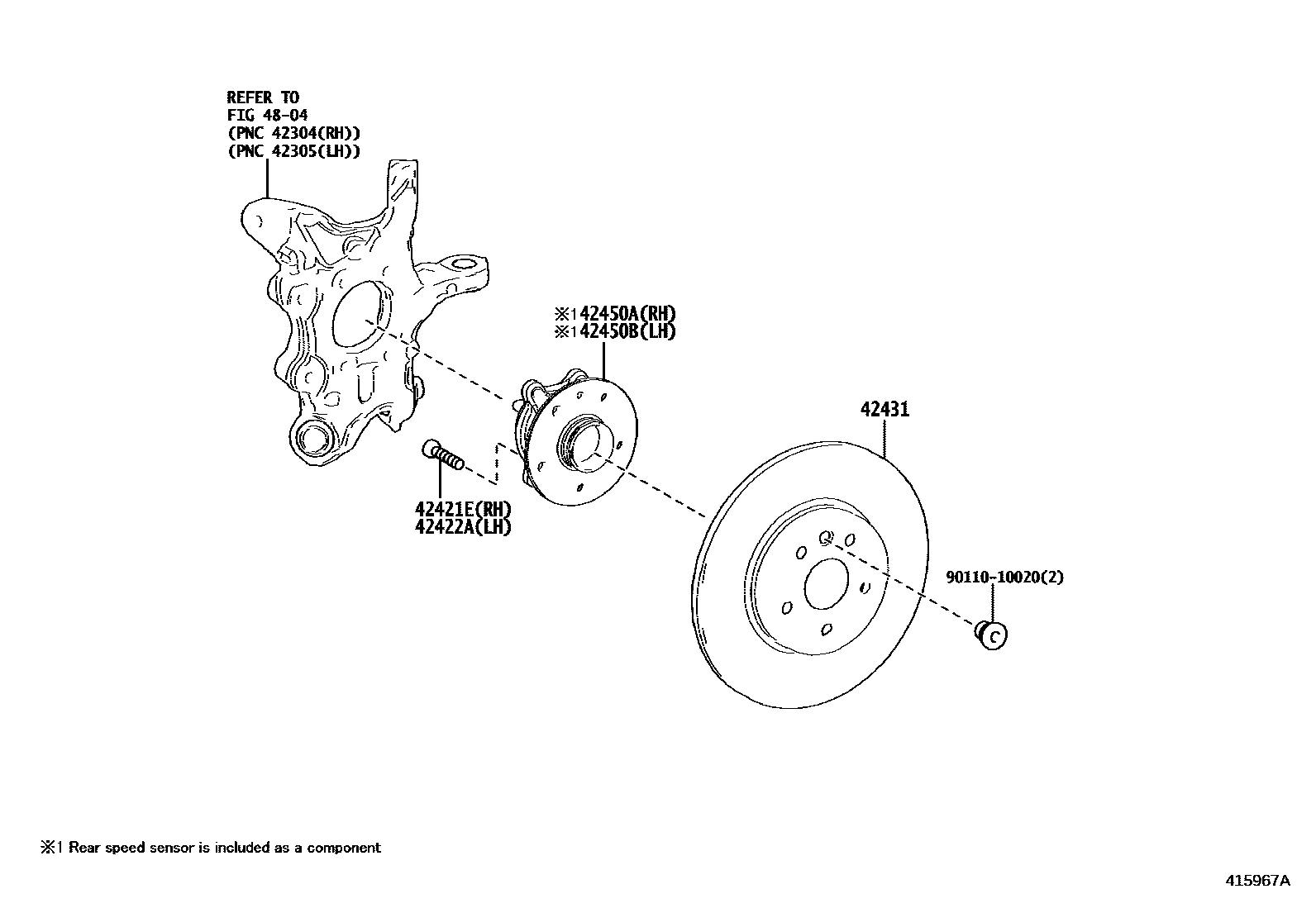

REAR AXLE SHAFT & HUB

0001 1 0002 1 0003 1 0004 1

42421EBOLT (FOR REAR AXLE BEARING CASE RH)

main90110-12017×4iAZSH30..M202301-202404

42422ABOLT (FOR REAR AXLE BEARING CASE LH)

main90110-12017×4iAZSH30..M202301-202404

42431DISC, REAR

main42431-78030×2iAZSH30..M202301-202404

42450AHUB & BEARING ASSY, REAR AXLE, RH

main42410-30070iAZSH35,TZSH35202301

main42450-30010iAZSH30..RHD202301-202503

42450BHUB & BEARING ASSY, REAR AXLE, LH

main42410-30070iAZSH35,TZSH35202301

main42450-30010iAZSH30..M202301-202404

4804

9011010020

main90110-10020

7 parts on this diagram · 4 diagrams in section
