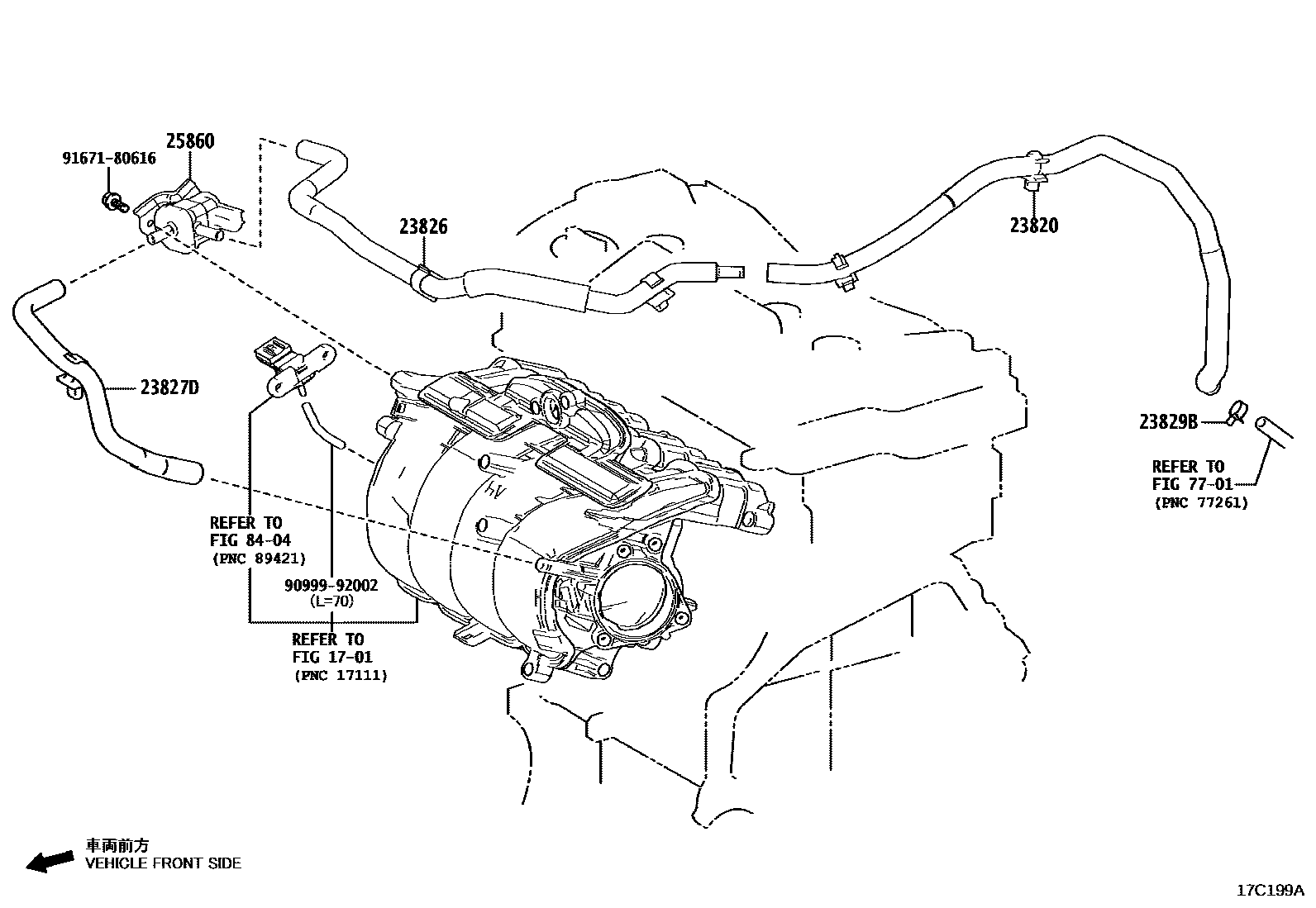

VACUUM PIPING

0001 1 0002 1W(GPF) 0003 1 0004 1

1701

23820HOSE ASSY, FUEL VAPOR FEED

main23820-25280iT24AFTS..TZSH35..CHI202301

main23820-25320iT24AFTS..TZSH35..GCC,GEN202301

main23820-25390iA25AFXS..AZSH30..M202301-202404

main23820-25380supersedes 23820-25390iA25AFXS..AZSH30..LHD..GEN202301-202504

TAIWAN SPEC

23826HOSE, FUEL VAPOR FEED, NO.1

main23820-25051iA25AFXS..AZSH30..M202301-202404

main23820-25150iA25AFXS..AZSH30..LHD..GEN202301-202503

TAIWAN SPEC

23827DHOSE, FUEL VAPOR FEED, NO.2

main23820-25130iA25AFXS..AZSH35;A25AFXS..AZSH30..(B,G)..(CHI,GCC)202301

main23827-25150iT24AFTS..TZSH35..GCC,GEN202301

main23827-25160iT24AFTS..TZSH35..CHI202301

main23820-25160iA25AFXS..AZSH30..LHD..GEN202301-202503

TAIWAN SPEC

23829BCLIP(FOR FUEL VAPOR FEED HOSE)

main96136-41901iA25AFXS..AZSH30..M202301-202404

25860VALVE ASSY, VACUUM SWITCHING, NO.1

main25860-25020iA25AFXS..AZSH30..M202301-202404

main25860-25100iT24AFTS..TZSH35..GCC,GEN202301

main25860-25070iA25AFXS..AZSH30..LHD..GEN202301-202503

TAIWAN SPEC

7701

8404

9099992002

main90999-92002

9167180616

main91671-80616

10 parts on this diagram · 4 diagrams in section
