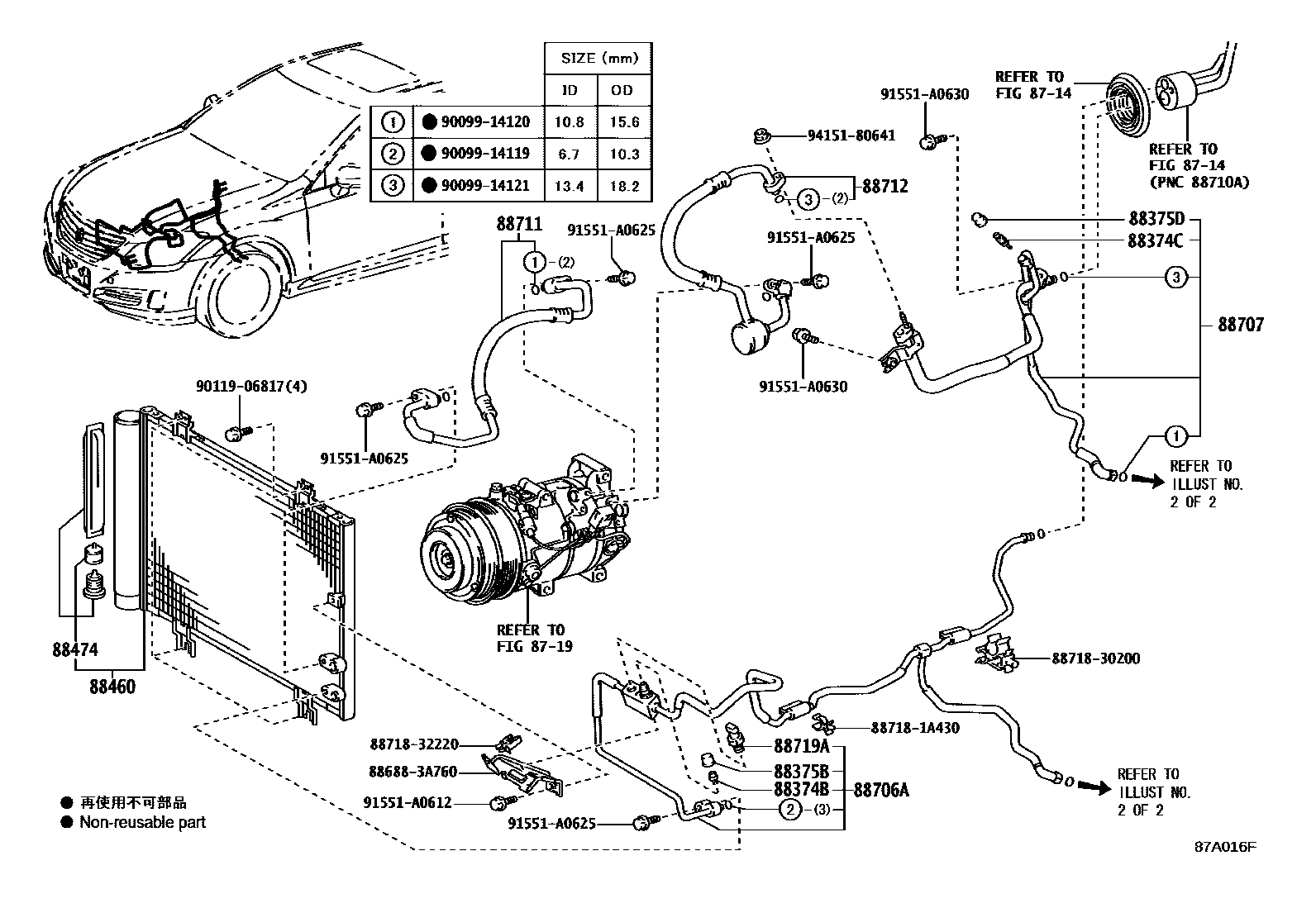

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1FRONT 0002 1REAR

8714HEATING & AIR CONDITIONING - COOLER UNIT

→ Go to FIG 87-14

8719HEATING & AIR CONDITIONING - COMPRESSOR

→ Go to FIG 87-19

88374BVALVE, SERVICE, NO.1

main88374-30010iGRS202201009-201212

88374CVALVE, SERVICE, NO.2

main88374-30010iGRS202201009-201212

88375BCAP, SERVICE VALVE, NO.1

main88375-30280iGRS202201009-201212

88375DCAP, SERVICE VALVE, NO.2

main88375-30290iGRS202201009-201212

88460CONDENSER ASSY, COOLER

main88460-30A80iGRS202201009-201212

88474DRYER, COOLER

main88474-17010iGRS202201009-201212

88706ATUBE SUB-ASSY, LIQUID, A

main88706-3A500iGRS202201009-201212

88707PIPE SUB-ASSY, SUCTION

main88707-30850iGRS202201009-201212

88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

main88711-3A650iGRS202201009-201212

88712HOSE, COOLER REFRIGERANT SUCTION, NO.1

main88712-30240iGRS202201009-201012

main88712-30420iGRS202201012-201212

88719ASENSOR, AIR CONDITIONER PRESSURE

main88719-33020iGRS202201009-201212

886883A760BRACKET, COOLER DIAPHRAGM

main88688-3A760

887181A430PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-1A430

8871830200PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-30200

8871832220PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-32220

9009914119

main90099-14119

9009914120

main90099-14120

9009914121

main90099-14121

9011906817

main90119-06817

91551A0612

main91551-A0612

91551A0625

main91551-A0625

91551A0630

main91551-A0630

9415180641

main94151-80641
