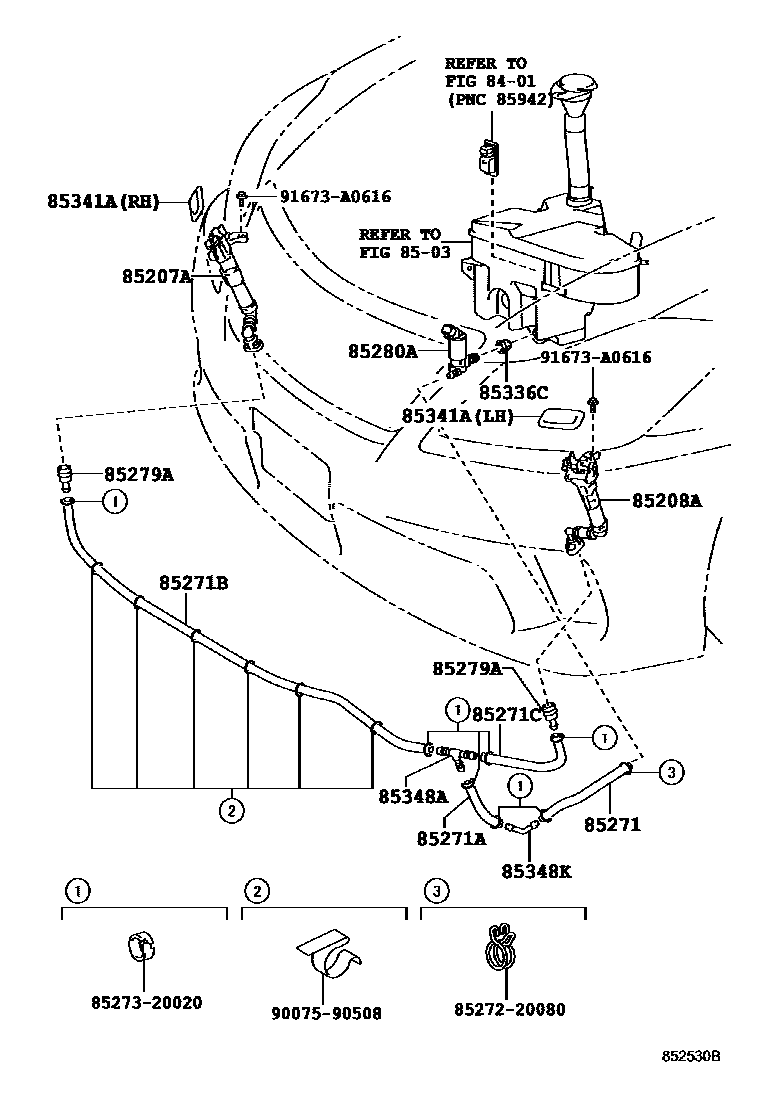

HEADLAMP CLEANER

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

8503WINDSHIELD WASHER

→ Go to FIG 85-03

85207AACTUATOR SUB-ASSY, HEADLAMP WASHER, RH

main85207-30050iGRS202201009-201212

85208AACTUATOR SUB-ASSY, HEADLAMP WASHER, LH

main85208-30050iGRS202201009-201212

85271HOSE, HEADLAMP CLEANER, NO.1

main85375-20171iGRS202201009-201212

L=60

85271AHOSE, HEADLAMP CLEANER, NO.2

main90445-14060iGRS202201009-201212

L=115

85271BHOSE, HEADLAMP CLEANER, NO.3

main85275-30040iGRS202201009-201212

85271CHOSE, HEADLAMP CLEANER, NO.4

main85375-32011iGRS202201009-201212

L=35

85279AJOINT, HEADLAMP CLEANER HOSE

main85279-33040×2iGRS202201009-201212

85280AMOTOR AND PUMP ASSY, HEADLAMP CLEANER

main85280-30040iGRS202201009-201212

85336CPACKING, HEADLAMP CLEANER MOTOR

main90099-32089iGRS202201009-201212

85341ACOVER,HEADLAMP CLEANER WASHER NOZZLE

main85353-30080-A0iGRS202201009-201212

WHITE PEARL CS.,062,RH

main85353-30080-B1iGRS202201009-201212

SILVER ME.,1F7,RH

main85353-30080-C0iGRS202201009-201212

BLACK,202,RH

main85353-30080-J0iGRS202201009-201212

DK.BLUE MC.,3R0 ,8S6,RH

main85354-30080-A0iGRS202201009-201212

WHITE PEARL CS.,062,LH

main85354-30080-B1iGRS202201009-201212

SILVER ME.,1F7,LH

main85354-30080-C0iGRS202201009-201212

BLACK,202,LH

main85354-30080-J0iGRS202201009-201212

DK.BLUE MC.,3R0 ,8S6,LH

85348AJOINT, HEADLAMP CLEANER HOSE, NO.1

main85352-12010iGRS202201009-201212

85348KJOINT, HEADLAMP CLEANER ELBOW, NO.1

main85379-22080iGRS202201009-201212

8527220080CABLE SUB-ASSY, HEADLAMP CLEANER, RH

main85272-20080

8527320020CABLE SUB-ASSY, HEADLAMP CLEANER, LH

main85273-20020

9007590508

main90075-90508

91673A0616

main91673-A0616

18 parts on this diagram · 1 diagram in section
