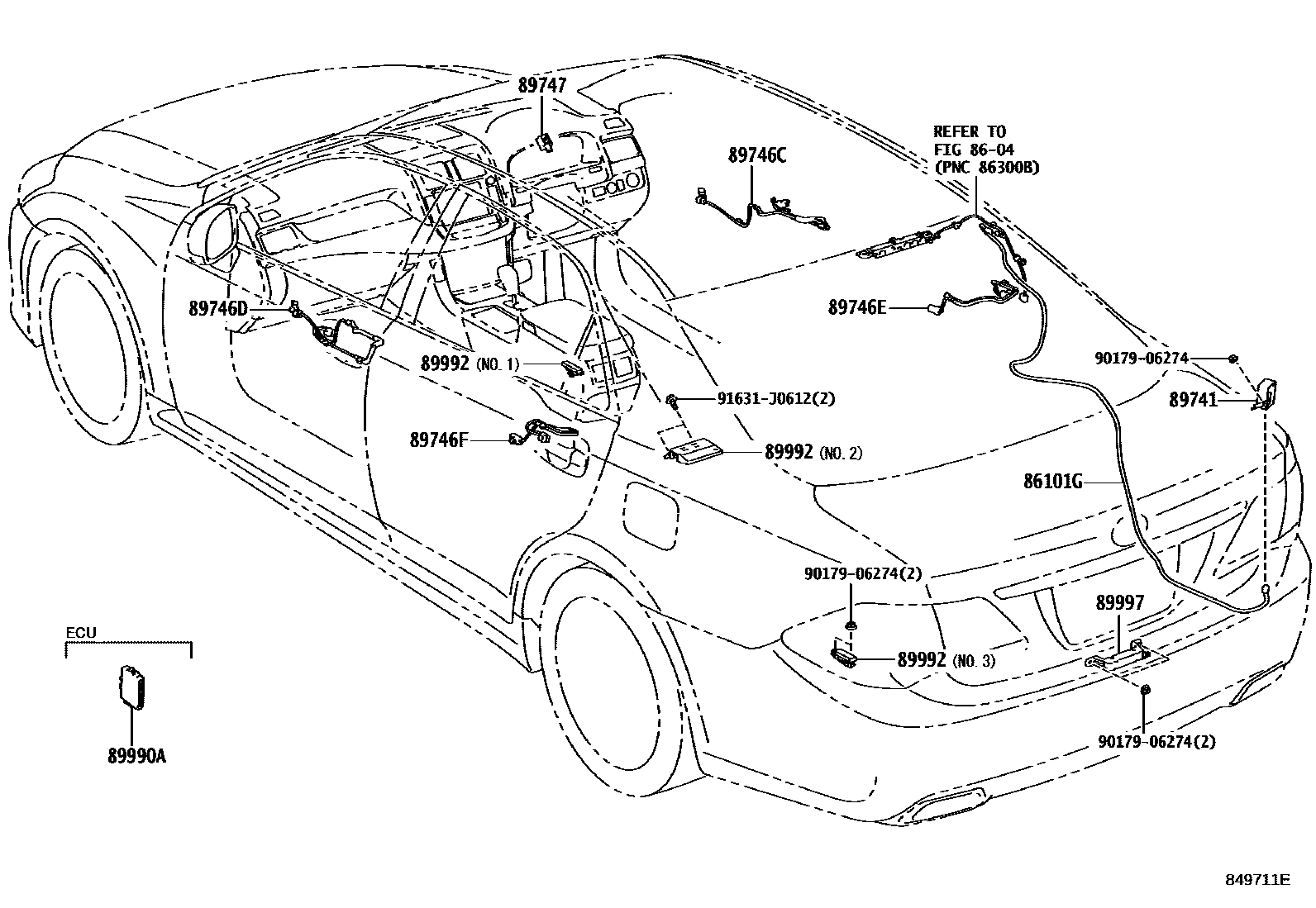

WIRELESS DOOR LOCK
8604ANTENNA
86101GCORD SUB-ASSY, ANTENNA
89741RECEIVER, DOOR CONTROL
SINGAPORE SPEC
89746CHARNESS, ELECTRICAL KEY WIRE, NO.1
89746DHARNESS, ELECTRICAL KEY WIRE, NO.2
89746EHARNESS, ELECTRICAL KEY WIRE, NO.3
89746FHARNESS, ELECTRICAL KEY WIRE, NO.4
89747BUZZER, WIRELESS DOOR LOCK
89990ACOMPUTER ASSY, SMART KEY
89992OSCILLATOR, INDOOR ELECTRICAL KEY
NO.1
NO.3
NO.2
89997ANTENNA, ELECTRICAL KEY
9017906274
main90179-06274
91631J0612
main91631-J0612
13 parts on this diagram · 1 diagram in section
