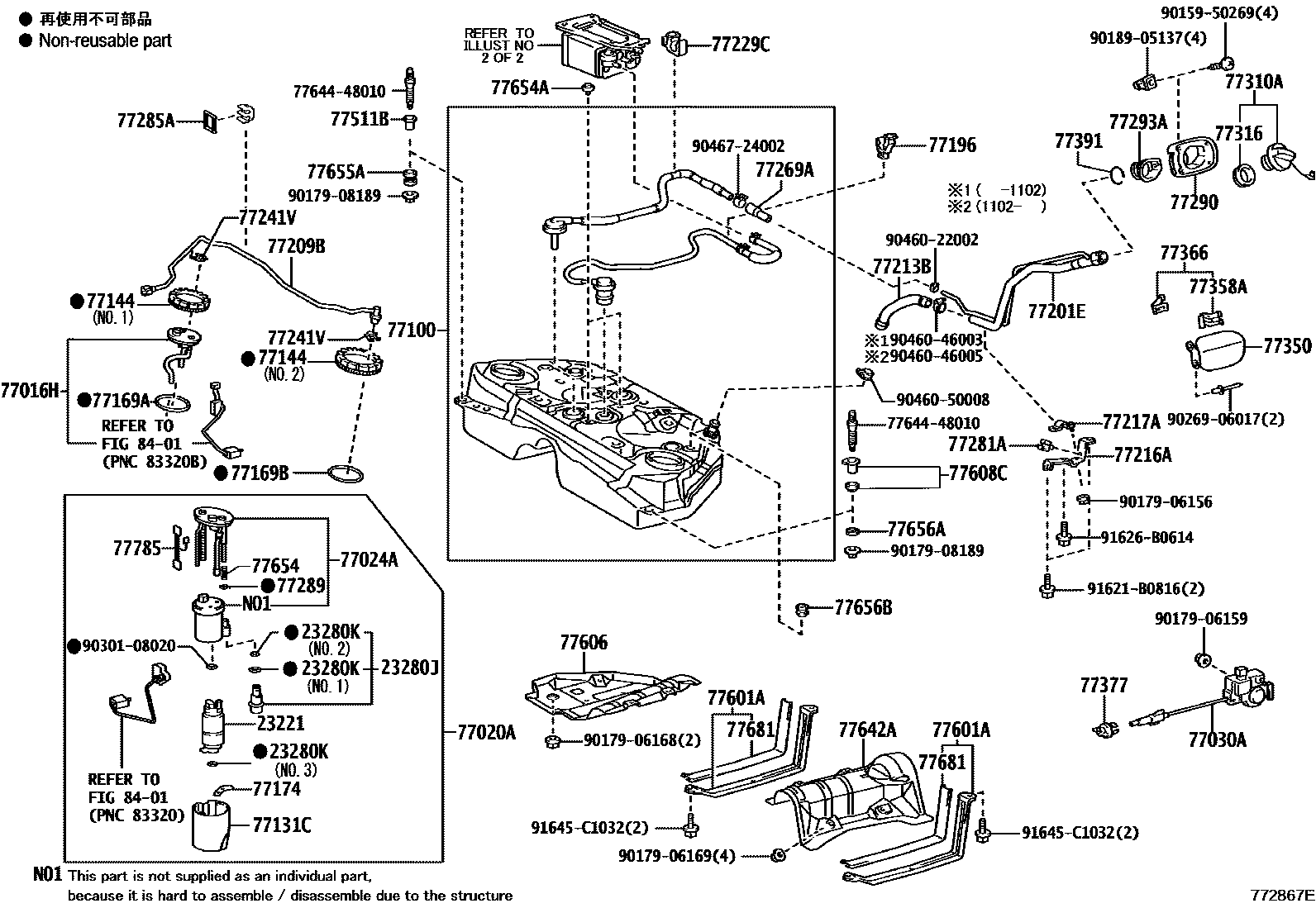

FUEL TANK & TUBE

23221PUMP, FUEL

main23220-31171i201009-201212

23280JREGULATOR ASSY, FUEL PRESSURE

main23280-21010i201009-201212

23280KRING, O(FOR FUEL PRESSURE REGULATOR)

main90301-04013i201009-201212

NO.1

main90301-11025i201009-201212

NO.3

main90301-15024i201009-201212

NO.2

77016HTUBE SUB-ASSY, FUEL RETURN VENT

main77016-30070i201009-201212

77020ATUBE ASSY, FUEL SUCTION W/PUMP & GAGE

main77020-30153i201009-201212

77024APLATE SUB-ASSY, FUEL SUCTION

main77024-30122i201009-201212

77030ALOCK ASSY, FUEL LID W/MOTOR

main77030-30170i201009-201212

77100TANK ASSY, FUEL

main77001-30561i201009-201212

77131CSUB-TANK, FUEL, NO.1

main77131-30062i201009-201107

main77131-30063i201107-201212

77144RETAINER, FUEL PUMP GAUGE

main77144-30020i201009-201212

NO.1

main77144-47020i201009-201212

NO.2

77169AGASKET, FUEL SUCTION TUBE SET

main77169-30010i201009-201212

77169BGASKET, FUEL SUCTION TUBE SET, NO.1

main77169-47030i201009-201212

77174SUPPORT, FUEL SUCTION, NO.1

main77174-48020i201009-201212

77196CLAMP, EVAPORATION VENT TUBE, NO.1

main77196-30050i201009-201212

77201EPIPE SUB-ASSY, FUEL TANK FILLER

main77201-30490i201009-201212

77209BTUBE SUB-ASSY, FUEL PUMP

main77209-30100i201009-201212

77213BHOSE, FUEL TANK TO FILLER PIPE

main77213-30191i201009-201212

77216ASUPPORT, FUEL TANK FILLER PIPE, NO.1

main77216-30050i201009-201202

main77216-30051i201203-201212

77217ASUPPORT, FUEL TANK FILLER PIPE, NO.2

main77217-30130i201009-201202

main77217-30131i201203-201212

77229CCLAMP, BREATHER TUBE

main77229-30050i201009-201212

77241VCLIP, TUBE JOINT

main77241-33011i201009-201212

77269AHOSE, FUEL TANK BREATHER

main77269-30060i201009-201212

77281ACLAMP, FUEL FILLER PIPE

main77281-50020i201009-201212

77285ASUPPORT, FUEL RETURN AND MAIN TUBE

main77285-30230i201009-201212

77289HOLDER, FUEL TANK PIPE SETTING

main77289-52090i201009-201212

77290SHIELD ASSY, FUEL TANK FILLER PIPE

main77290-30130i201009-201212

77293ASHIELD, FUEL TANK FILLER PIPE, NO.3

main77293-30090i201009-201212

77310ACAP ASSY, FUEL TANK

main77300-52030i201009-201212

77316GASKET, FUEL TANK CAP

main77316-52040i201009-201212

77350LID ASSY, FUEL FILLER OPENING

main77350-30390i201009-201212

77358ASTOPPER, FUEL FILLER OPENING LID

main77358-30060i201009-201212

77366SPRING, FUEL FILLER OPENING LID HINGE

main77360-30080i201009-201212

77377RETAINER, FUEL FILLER OPENING LID LOCK

main77377-12050i201009-201212

77391RING, FUEL INLET BOX

main77391-12020i201009-201212

77511BBRACKET, FUEL TANK

main77511-48030i201009-201212

77601ABAND SUB-ASSY, FUEL TANK, NO.1

main77601-30171i201009-201212

77606PROTECTOR SUB-ASSY, FUEL TANK, NO.1

main77606-30190i201009-201212

77608CCUSHION SET, FUEL TANK

main77608-48010i201009-201212

77642APROTECTOR, FUEL TANK, NO.2

main77642-30030i201009-201212

77654CUSHION, FUEL TANK, NO.2

main77652-30090i201009-201212

77654ACUSHION, FUEL TANK, NO.4

main77654-30020i201009-201212

77655ACUSHION, FUEL TANK, NO.5

main77655-30080i201009-201212

77656ACUSHION, FUEL TANK, NO.4

main77655-48010i201009-201212

77656BCUSHION, FUEL TANK, NO.6

main77656-30030i201009-201212

77681SEAT, FUEL TANK BAND, RH

main77681-30010i201009-201212

77785HARNESS, FUEL PUMP

main77785-48020i201009-201212

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

7764448010BOLT, FUEL TANK

main77644-48010

9015950269

main90159-50269

9017906156

main90179-06156

9017906159

main90179-06159

9017906168

main90179-06168

9017906169

main90179-06169

9017908189

main90179-08189

9018905137

main90189-05137

9026906017

main90269-06017

9030108020

main90301-08020

9046022002

main90460-22002

9046046003

main90460-46003

9046046005

main90460-46005

9046050008

main90460-50008

9046724002

main90467-24002

91621B0816

main91621-B0816

91626B0614

main91626-B0614

91645C1032

main91645-C1032

65 parts on this diagram · 2 diagrams in section
